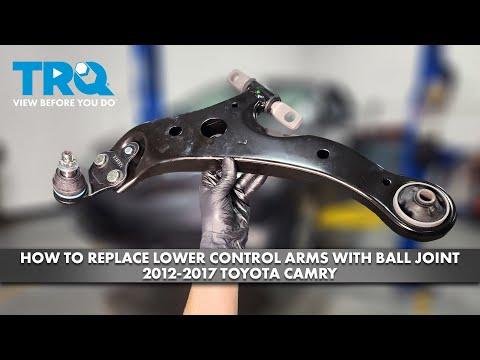

🔧 Camry - Front Lower Control Arm Replacement

The front lower control arms locate your front wheels and contain rubber bushings and a ball joint mount. Worn bushings/ball joints can cause clunks, wandering, uneven tire wear, and shaky braking. Replacing the arm restores tight steering feel and proper alignment.

Difficulty Level: Advanced | Estimated Time: 2-4 hours (both sides)

---

⚠️ Safety & Precautions

• ⚠️ Support the car on jack stands; never work under a jack.
• ⚠️ Keep hands clear when separating the ball joint; parts can release suddenly.
• ⚠️ Do not pull/strain the CV axle; support the knuckle so the axle isn’t over-extended.
• ⚠️ Hybrid note: avoid touching orange high-voltage cables; this job does not require HV shutdown if you stay in the suspension area.
• ⚠️ Tighten control arm bushing bolts at ride height (car sitting on its wheels) to prevent bushing damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 22mm socket
• 3/8" ratchet
• 1/2" breaker bar
• Torque wrench (20-200 ft-lbs range)
• Needle-nose pliers
• Hammer (16 oz)
• Ball joint separator tool (specialty)
• Pry bar (18-24")
• Paint marker
• Penetrating oil
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm - Left - Qty: 1
• Front lower control arm - Right - Qty: 1
• Lower ball joint cotter pin - Qty: 2
• Lower ball joint nut - Qty: 2
• Control arm mounting bolts and nuts - Qty: 1 kit

---

📋 Before You Begin

• 🧰 Park on level ground, straighten the steering wheel, and chock the rear wheels.
• 🧰 Break the front lug nuts loose with a 21mm socket before lifting.
• 🧰 Spray penetrating oil on control arm bolts and the ball joint nut area and let it soak 5-10 minutes.
• 🧰 Plan on a wheel alignment afterward.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheel

• Use a floor jack to lift the front of the car at the factory lift point.
• Place jack stands under the proper support points and lower onto them.
• Remove the lug nuts with a 21mm socket and remove the wheel.

Step 2: Support the steering knuckle

• Place the floor jack lightly under the lower edge of the knuckle/control arm area to prevent the knuckle from dropping when the ball joint is separated.
• “Knuckle” is the part the wheel hub bolts to.

Step 3: Disconnect the stabilizer link from the control arm (if attached to the arm)

• Remove the stabilizer link nut using a 17mm socket.
• If the stud spins, hold it with the appropriate internal hex (varies by link) while turning the nut with the 17mm socket.
• The stabilizer link connects the sway bar to suspension.

Step 4: Separate the lower ball joint from the steering knuckle

• Remove the cotter pin using needle-nose pliers.
• Remove the ball joint nut using a 19mm socket (common size) or the correct socket that fits your nut.
• Install and use a ball joint separator tool (specialty) to pop the taper free.
• Use a hammer (16 oz) only as needed to help the separator release the joint.

Step 5: Remove the control arm mounting bolts

• Mark the position of any alignment-style cam washers (if equipped) with a paint marker.
• Remove the front bushing bolt/nut using a 19mm socket and 1/2" breaker bar.
• Remove the rear bushing bolt/nut using a 19mm socket and 1/2" breaker bar.
• If there is an extra bracket/undercover interfering, remove it with a 10mm socket or 12mm socket as needed.

Step 6: Remove the control arm

• Work the arm out of the subframe area by hand.
• Use a pry bar (18-24") carefully if the bushings are stuck in place.
• Do not pry on the CV axle boot.

Step 7: Install the new control arm (hand-tight first)

• Position the new arm into place by hand.
• Install the front and rear bushing bolts/nuts using the 19mm socket, but leave them snug (not fully torqued).
• Insert the ball joint stud into the knuckle.
• Install the new ball joint nut using a 19mm socket, snug it down, then install a new cotter pin with needle-nose pliers.

Step 8: Reconnect the stabilizer link

• Install the stabilizer link nut using a 17mm socket.

Step 9: Final-tighten at ride height

• Reinstall the wheel and hand-tighten lug nuts using a 21mm socket.
• Lower the car so it sits at normal ride height (or set the suspension height by supporting the knuckle/control arm with the floor jack until it matches ride height).
• Torque the control arm bushing bolts using a torque wrench: Torque to Toyota factory specification for your Camry.
• Torque the ball joint nut and stabilizer link nut using a torque wrench: Torque to Toyota factory specification for your Camry.
• Torque the wheel lug nuts using a torque wrench: Torque to 103 Nm (76 ft-lbs).
• Tightening at ride height prevents torn bushings.

Step 10: Repeat on the other side

• Repeat Steps 1-9 for the other front control arm.
• Use the paint marker again if cam washers are present.

---

✅ After Repair

• 🧪 Road test at low speed first; listen for clunks over bumps.
• 🧪 Recheck lug nut torque with a torque wrench after 25-50 miles.
• 🧪 Get a 4-wheel alignment as soon as possible to prevent tire wear.
• 🧪 Visually confirm the cotter pins are installed and bent over properly.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,400 (parts + labor)

DIY Cost: $180-$500 (parts only, both sides)

You Save: $520-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
