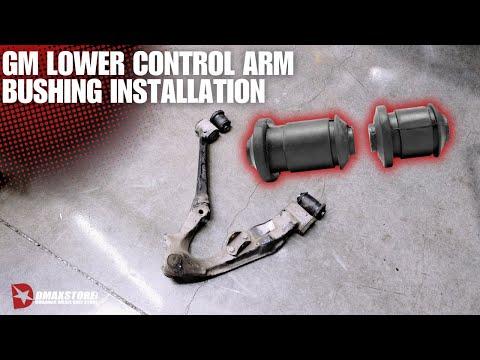

🔧 Suspension Bushings - Front Lower Control Arm Bushing Replacement

Assumption: This guide covers the front lower control arm bushings on your Sierra. Suspension bushings are pressed-in rubber/metal parts, so this is a more advanced repair that usually requires removal of the control arm and a press or press kit.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Support the truck with jack stands before removing any suspension parts.
• Do not work under a vehicle held up only by a jack.
• Keep hands clear when using a press or ball joint press tool; the part can slip suddenly.
• Mark cam bolts and control arm positions before removal to help preserve alignment.
• An alignment is required after this repair.
• If equipped with aftermarket lift parts, final torque should be set with the suspension at normal ride height.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for truck weight)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar
• Torque wrench
• Metric socket set
• Metric combination wrench set
• Ratchet
• Penetrating oil
• Ball joint separator tool
• Hydraulic press or bushing press kit (specialty)
• Bushing driver set (specialty)
• Paint marker
• Hammer
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm bushing set - Qty: 2
• Control arm hardware kit - Qty: 1
• Front suspension grease - Qty: 1
• Front alignment service - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Chock the rear wheels.
• Loosen the front lug nuts before lifting the truck.
• Raise the front and support it securely on jack stands.
• Remove the front wheel for access.
• Spray all suspension fasteners with penetrating oil and let it soak.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the wheel

• Use the breaker bar or ratchet to remove the lug nuts.
• Set the wheel aside safely.

Step 2: Mark the control arm position

• Use a paint marker to mark the cam bolt position and the control arm location.
• This helps the alignment shop.

Step 3: Disconnect the lower control arm

• Use the metric socket set and metric wrench set to remove the lower control arm bolts and fasteners.
• If the ball joint must be separated, use the ball joint separator tool.
• Support the control arm as the last bolt comes out.

Step 4: Remove the control arm

• Carefully remove the control arm from the vehicle.
• Note the orientation of each bushing before pressing anything out.

Step 5: Press out the old bushings

• Use the hydraulic press or bushing press kit (specialty) with the bushing driver set (specialty) to press out the old bushings.
• Clean the bore with a wire brush before installing the new parts.
• Keep the press straight.

Step 6: Install the new bushings

• Use the hydraulic press or bushing press kit (specialty) to press the new bushings into the control arm.
• Match the original orientation exactly.
• Apply a thin coat of front suspension grease only if the bushing design calls for it.

Step 7: Reinstall the control arm

• Position the control arm back into place.
• Install the bolts by hand first to avoid cross-threading.
• Snug the fasteners, but do not fully torque yet.

Step 8: Torque at ride height

• Lower the truck so the suspension is at normal ride height.
• Use the torque wrench to tighten the control arm fasteners.
• Torque to manufacturer specification for the exact bolt locations on your Sierra.
• Final torque with weight on wheels is critical.

Step 9: Reinstall the wheel

• Install the wheel and hand-tighten the lug nuts.
• Lower the truck fully and use the torque wrench to tighten the lug nuts in a star pattern.
• Torque to manufacturer specification for the wheel lug nuts.

---

✅ After Repair

• Check that all bolts are tight and nothing is contacting the tire.
• Test drive slowly and listen for clunks or squeaks.
• Have the front end aligned immediately.
• Recheck fastener torque after a short drive if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $330-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
