🔧 Ball Joints - Replacement

This job replaces the front lower ball joints that connect the steering knuckle to the lower control arm. Worn ball joints can cause clunks, vague steering, tire wear, and unsafe handling.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Support the vehicle securely on jack stands before removing any suspension parts.
• Do not let the axle or brake hose hang by itself while the knuckle is loosened.
• Use a ball joint separator carefully to avoid damaging the knuckle or control arm.
• If the vehicle has a torque-to-yield fastener in this area, replace it with a new one.
• Front suspension work can change alignment. A professional wheel alignment is required after repair.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• 19mm socket
• 17mm socket
• 14mm socket
• Ratchet
• Breaker bar
• Torque wrench
• Ball joint separator (specialty)
• Needle-nose pliers
• Hammer
• Paint marker
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Ball joint pinch bolt and nut - Qty: 2
• Cotter pins - Qty: 2
• Front wheel alignment - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Chock the rear wheels.
• Loosen the front lug nuts slightly before lifting the vehicle.
• Raise the front and support it securely on jack stands.
• Remove the front wheels for access.
• Mark anything before removing it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheels

• Use a 19mm socket to loosen the lug nuts before lifting.
• Raise the front with a floor jack and support it with jack stands.
• Remove both front wheels with the 19mm socket.

Step 2: Access the ball joint area

• Turn the steering wheel by hand to give yourself more room on the side you are working on.
• Use a paint marker to mark the position of any alignment-related bolts you remove.

Step 3: Separate the ball joint from the knuckle

• Remove the cotter pin with needle-nose pliers if your joint uses one.
• Use a 17mm socket or 14mm socket to remove the ball joint pinch bolt, depending on the fastener size on your vehicle.
• Use a ball joint separator to break the taper loose from the steering knuckle.
• If needed, tap the knuckle lightly with a hammer while keeping the separator under tension.

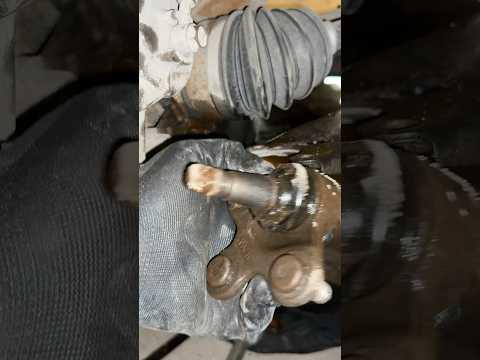

Step 4: Remove the ball joint from the control arm

• Use the correct 14mm socket or 17mm socket to remove the ball joint mounting fasteners.
• Pull the ball joint free from the lower control arm.
• Inspect the control arm bore for rust, wear, or damage before installing the new part.

Step 5: Install the new ball joint

• Position the new ball joint in the control arm in the same orientation as the old one.
• Start all bolts by hand first with the correct socket.
• Install the pinch bolt and nut.
• Torque the ball joint fasteners to factory specification.
• Install a new cotter pin if equipped.

Step 6: Reconnect the knuckle

• Raise or lower the control arm slightly with the floor jack so the ball joint stud lines up with the knuckle.
• Insert the stud fully into the knuckle.
• Install and torque the pinch bolt and nut to factory specification.

Step 7: Reassemble and repeat on the other side

• Reinstall the wheel with the 19mm socket.
• Lower the vehicle and torque the lug nuts to factory specification.
• Repeat the same steps on the opposite side.
• Replace ball joints in pairs.

Step 8: Final torque and inspection

• Torque all suspension fasteners with the torque wrench to factory specification.
• Check that brake hoses, ABS wires, and the axle boots are not twisted or pinched.
• Verify both front wheels spin and steer freely.

---

✅ After Repair

• Drive slowly at first and listen for clunks or pops.
• Check for steering pull or vibration.
• Get a professional wheel alignment as soon as possible.
• Recheck lug nut torque after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $330-$620 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
