🔧 Ball Joints - Replacement

Assumption: This procedure is for the front lower ball joints on your Jetta, which are serviced with the front lower control arm assembly on this platform.

On your Jetta, the ball joint is part of the front suspension and must be replaced carefully to restore steering feel and tire wear control. Because it is pressed/bolted into the lower control arm area, the job involves lifting the front of the vehicle, removing the wheel, and separating the knuckle from the control arm area.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Support the car with jack stands; never rely on a jack alone.
• Keep hands clear when separating the steering knuckle from the lower control arm.
• Do not let the brake hose or ABS wire hang by itself.
• Use a torque wrench on all suspension fasteners.
• Have the parking brake set and the transmission in gear.
• No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar
• Torque wrench
• 19mm socket
• 16mm socket
• 18mm socket
• 13mm socket
• Triple-square XZN bits set
• Torx T30 screwdriver
• Ball joint separator (specialty)
• Ratchet
• Long-handled pry bar
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Ball joint mounting bolts - Qty: 1 set
• Control arm to knuckle hardware - Qty: 1 set
• Front wheel lug bolts - Qty: 2

---

📋 Before You Begin

• Park on level ground.
• Set the parking brake.
• Loosen the front wheel bolts slightly before lifting.
• Spray penetrating oil on the ball joint fasteners and let it soak.
• Use a front-end alignment after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front of the car

• Use a floor jack to lift the front of the car at the proper jacking point.
• Place jack stands under the front support points and lower the car onto them.
• Remove the front wheel with a 19mm socket.

Step 2: Access the ball joint area

• Turn the steering wheel to give yourself more room on the side you are working on.
• Locate the lower ball joint where the control arm meets the steering knuckle.
• If equipped, remove any small splash shields or covers with a Torx T30 screwdriver.

Step 3: Disconnect the ball joint from the knuckle

• Use the correct triple-square XZN bit or 16mm socket to remove the ball joint fasteners, depending on the hardware on your car.
• Separate the ball joint from the steering knuckle using a ball joint separator (specialty).
• Do not hammer on the knuckle.

Step 4: Remove the ball joint

• Use an 18mm socket and ratchet to remove the ball joint mounting bolts from the control arm area.
• Support the knuckle with one hand so the axle and brake hose are not strained.
• Remove the ball joint from the vehicle.

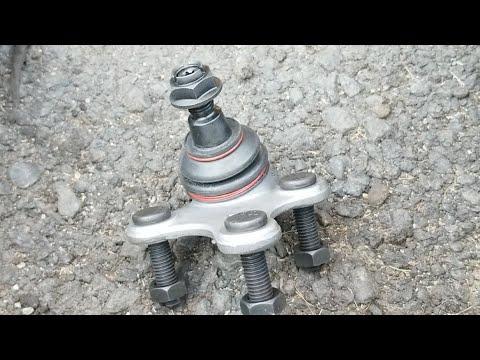

Step 5: Install the new ball joint

• Position the new ball joint in place by hand first.
• Install new mounting bolts finger-tight.
• Use the torque wrench and tighten the ball joint mounting bolts to 70 Nm (52 ft-lbs).

Step 6: Reconnect the knuckle

• Seat the ball joint stud into the steering knuckle.
• Install the knuckle fasteners with the correct triple-square XZN bit or 16mm socket.
• Tighten the fasteners to 40 Nm (30 ft-lbs) plus 90°.

Step 7: Reassemble the wheel area

• Reinstall any splash shields with the Torx T30 screwdriver.
• Put the wheel back on.
• Snug the lug bolts with the 19mm socket.

Step 8: Lower and torque the wheel

• Lower the car off the jack stands with the floor jack.
• Torque the wheel bolts to 120 Nm (89 ft-lbs) using a torque wrench.

---

✅ After Repair

• Start the car and turn the steering wheel lock-to-lock.
• Check for clunks, rubbing, or pulling.
• Drive slowly at first and confirm the steering feels normal.
• Schedule a front-end alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$180 (parts only)

You Save: $270-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
