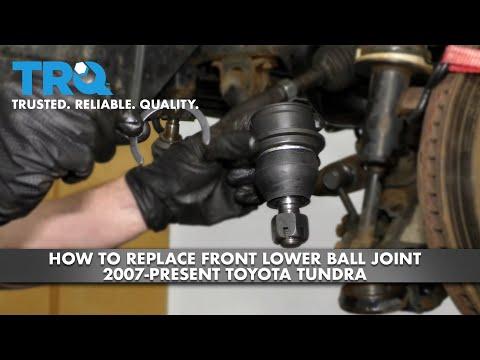

🔧 Ball Joints - Front Lower Ball Joint Replacement

On your Tundra, the front lower ball joints are a safety-critical wear item. If you have clunking, looseness, uneven tire wear, or torn boots, replace both sides together so the front suspension stays even and safe.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Park on level ground, set the parking brake, and chock the rear wheels.
• Support the truck with jack stands; never work under a vehicle held up only by a jack.
• The steering knuckle and lower control arm are heavy. Keep hands clear when separating the joint.
• If the front wheels will hang free, keep the front axle supported so the suspension does not drop suddenly.
• After reassembly, do not drive far until the alignment is checked.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 19mm socket
• 17mm socket
• 14mm socket
• Breaker bar
• Torque wrench
• Ratchet
• Ball joint separator (specialty)
• Hammer
• Needle-nose pliers
• Flat-head screwdriver
• Paint marker
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Ball joint mounting hardware - Qty: 2 sets
• Cotter pins - Qty: 2
• Front wheel alignment - Qty: 1

---

📋 Before You Begin

• Park on level ground and center the steering wheel.
• Loosen the front lug nuts before lifting the truck.
• Raise the front and support it securely on jack stands.
• Replace ball joints in pairs so both sides wear evenly.
• Mark parts before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front wheel

• Use a 21mm socket and breaker bar to loosen the lug nuts.
• Lift the front of the truck with the floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Remove the lug nuts and wheel.

Step 2: Disconnect the lower ball joint from the steering knuckle

• Use needle-nose pliers to remove the cotter pin from the ball joint stud.
• Use the correct socket for the castle nut, then loosen and remove the nut.
• Use a ball joint separator (specialty) to break the taper loose from the knuckle.
• Do not hammer on the stud.

Step 3: Remove the ball joint from the lower control arm

• Use a 14mm socket or the correct socket for the mounting bolts to remove the ball joint fasteners.
• Support the steering knuckle so the CV axle and brake hose are not pulled tight.
• Remove the old ball joint from the control arm.

Step 4: Install the new ball joint

• Position the new ball joint in the lower control arm.
• Install the mounting hardware by hand first.
• Use a torque wrench to tighten the mounting bolts to factory specification.
• Insert the ball joint stud into the steering knuckle.
• Install the castle nut and tighten it to factory specification.
• Install a new cotter pin with needle-nose pliers.

Step 5: Reassemble and repeat on the other side

• Reinstall the wheel and hand-tighten the lug nuts.
• Lower the truck and tighten the lug nuts in a star pattern with a torque wrench.
• Repeat the same steps on the opposite side.

---

✅ After Repair

• Start the truck and slowly turn the steering wheel lock-to-lock.
• Check for clunks, binding, or loose movement.
• Test-drive at low speed first.
• Schedule a front-end alignment as soon as possible.
• Recheck lug nut torque after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,300 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $520-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
