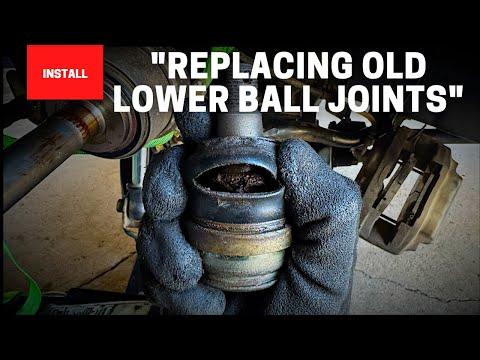

🔧 Ball Joint - Replacement

Assumption: This guide covers the front lower ball joints on your Land Cruiser. Ball joints carry suspension load and steering force, so worn ones can cause clunks, tire wear, and loose steering. Because this is a safety-critical repair, inspect both sides and replace in pairs if one is worn.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Support the vehicle with jack stands; never work under a vehicle held only by a jack.
• Use wheel chocks on the rear wheels and set the parking brake.
• Ball joints are press-fit and loaded parts; use a proper ball joint press (specialty) and keep hands clear while pressing.
• Do not let the brake caliper hang by the hose if you remove it.
• After reassembly, a front-end alignment is required.
• If any fastener is removed from the steering knuckle, verify final torque with the suspension at normal ride height when applicable.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for vehicle weight)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 19mm socket
• 17mm socket
• 14mm socket
• 12mm socket
• Breaker bar
• Torque wrench
• Ball joint press (specialty)
• Ball joint separator (specialty)
• Hammer
• Pickle fork (specialty)
• Pry bar
• Bungee cord or hook
• Needle-nose pliers
• Paint marker
• Wire brush
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Ball joint retaining nuts - Qty: 2
• Ball joint cotter pins - Qty: 2
• Front wheel alignment - Qty: 1

---

📋 Before You Begin

• Park on level ground and engage the parking brake.
• Break the front lug nuts loose before lifting the vehicle.
• Spray the ball joint hardware with penetrating oil and let it soak.
• Mark the position of any alignment shims or cam bolts if equipped.
• Support the control arm before separating the joint.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front end

• Use the floor jack to lift the front of the Land Cruiser at the proper jacking point.
• Place jack stands under the frame and lower the vehicle onto them.
• Remove the front wheel with a 21mm socket.

Step 2: Access the steering knuckle area

• Use a 12mm socket or 14mm socket to remove any splash shield or undercover pieces blocking access.
• If needed, secure the brake caliper out of the way with a bungee cord or hook.

Step 3: Separate the ball joint from the knuckle

• Remove the cotter pin with needle-nose pliers.
• Use a 19mm socket or 21mm socket to remove the castle nut from the ball joint stud.
• Use a ball joint separator (specialty) or pickle fork (specialty) to break the stud loose from the steering knuckle.
• Do not hammer on the threads.

Step 4: Remove the ball joint from the control arm

• Use a 17mm socket and breaker bar to remove the ball joint mounting bolts or nuts, depending on design.
• If the joint is press-fit, use the ball joint press (specialty) to press it out of the control arm.
• Clean the mounting surface with a wire brush.

Step 5: Install the new ball joint

• Position the new ball joint into the control arm.
• Use the ball joint press (specialty) to seat it fully.
• Install the retaining hardware by hand first to avoid cross-threading.
• Torque the ball joint mounting fasteners to the factory specification for your Land Cruiser service configuration.

Step 6: Reconnect the knuckle

• Align the stud with the steering knuckle and raise or lower the control arm with a floor jack if needed.
• Install the new castle nut using a 19mm socket or 21mm socket.
• Torque to factory specification, then continue tightening only enough to line up the cotter pin hole.
• Install a new cotter pin with needle-nose pliers.

Step 7: Reassemble the front end

• Reinstall any splash shields with a 12mm socket or 14mm socket.
• Reinstall the wheel and snug the lug nuts with a 21mm socket.
• Lower the vehicle and torque the lug nuts to factory specification in a star pattern with a torque wrench.

---

✅ After Repair

• Start the vehicle and turn the steering wheel lock-to-lock while checking for odd noises.
• Test drive slowly at first and listen for clunks or looseness.
• Book a front wheel alignment as soon as possible.
• Recheck all fasteners after the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,400 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $520-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
