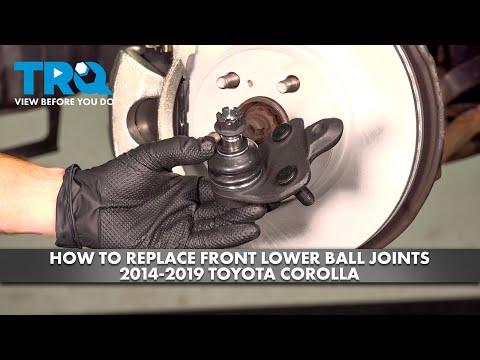

🔧 Ball Joints - Front Lower Ball Joint Replacement

The front lower ball joints on your Corolla connect the steering knuckle to the lower control arm. If they are loose, torn, or noisy, the joint should be replaced as soon as possible because it affects steering control and tire wear.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Support the car with jack stands before removing any suspension parts.
• Do not work under a car held up only by a jack.
• The steering knuckle can shift when the ball joint is removed; keep one hand supporting it.
• Use caution around the brake hose and ABS wire so they are not stretched or damaged.
• No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm socket
• 19mm socket
• 14mm socket
• Torque wrench
• Breaker bar
• Ratchet
• Pry bar
• Hammer
• Ball joint separator (specialty)
• Cotter pin puller or needle-nose pliers
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Ball joint cotter pins - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Chock the rear wheels.
• Loosen the front lug nuts before lifting the car.
• Raise the front and support it securely on jack stands.
• Replace both front ball joints together so steering feel stays even.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front wheel

• Use a 21mm socket and breaker bar to loosen the lug nuts, then remove the wheel.
• Set the wheel aside where it will not roll away.

Step 2: Access the ball joint

• Spray penetrating oil on the ball joint nut and mounting bolts.
• Look at the joint where the lower control arm meets the steering knuckle.

Step 3: Remove the cotter pin and castle nut

• Use needle-nose pliers or a cotter pin puller to remove the cotter pin from the ball joint stud.
• Use a 19mm socket to remove the castle nut.
• Leave the nut threaded on a few turns to keep the knuckle from dropping suddenly.

Step 4: Separate the ball joint from the steering knuckle

• Use a ball joint separator (specialty) to pop the taper loose.
• If needed, tap the knuckle lightly with a hammer while keeping pressure on the separator.
• Once it breaks free, remove the nut and support the knuckle so the brake hose is not strained.

Step 5: Remove the ball joint from the lower arm

• Use a 14mm socket to remove the ball joint mounting bolts.
• Remove the ball joint from the lower control arm.
• Mark the old position first.

Step 6: Install the new ball joint

• Place the new ball joint into the lower control arm.
• Install the mounting bolts by hand first, then tighten with a 14mm socket.
• Torque to 59 Nm (44 ft-lbs).

Step 7: Reconnect the ball joint to the steering knuckle

• Align the stud with the knuckle and install the castle nut by hand.
• Use a 19mm socket to tighten the nut.
• Torque to 103 Nm (76 ft-lbs).
• Install a new cotter pin and bend the ends fully with needle-nose pliers.

Step 8: Reinstall the wheel

• Put the wheel back on and start the lug nuts by hand.
• Lower the car to the ground.
• Use a 21mm socket and torque wrench to tighten the lug nuts.
• Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Start the car and turn the steering wheel lock to lock to confirm smooth movement.
• Check for any clunks, looseness, or rubbing.
• Get a front-end alignment as soon as possible.
• Inspect the tire wear pattern after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $80-$180 (parts only)

You Save: $270-$520 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
