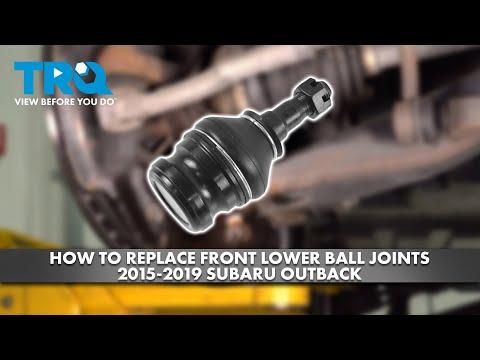

🔧 Outback - Front Lower Ball Joint Replacement

The front lower ball joints connect the steering knuckle to the lower control arms and let the suspension/steering move smoothly. If they’re worn, you may get clunks, wandering steering, uneven tire wear, or a failed safety inspection.

Difficulty Level: Advanced | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the Outback with jack stands on solid ground; never rely on a jack.
• ⚠️ Chock the rear wheels and keep the transmission in P.
• ⚠️ Do not pull or hang the axle/knuckle by the brake hose; support parts as needed.
• ⚠️ If you use a hammer near the knuckle, protect the axle boot and ABS wire.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar (1/2")
• Torque wrench (20–150 ft-lbs range)
• 19mm socket
• 19mm wrench
• 14mm socket
• 14mm wrench
• Needle-nose pliers
• Diagonal cutters
• Ball joint separator tool (specialty)
• Ball joint puller for Subaru pinch-style joint (specialty)
• Hammer (16 oz)
• Pry bar (18")
• Wire brush
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2 Replace in pairs
• Ball joint pinch bolt and nut - Qty: 2
• Cotter pins (ball joint castle nut) - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Loosen the front lug nuts 1/2 turn using a 19mm socket and breaker bar before lifting.
• Spray penetrating oil on the ball joint castle nut and the knuckle pinch bolt using penetrating oil; let it soak 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front using a floor jack (rated 3-ton minimum) at the front center jack point.
• Set the Outback down onto jack stands (rated 3-ton minimum) at the pinch welds or front side support points.
• Remove the front wheels using a 19mm socket.

Step 2: Remove the ball joint cotter pin

• Straighten and pull the cotter pin out of the ball joint stud using needle-nose pliers.
• If it snaps, cut it off carefully using diagonal cutters. Always install a new cotter pin.

Step 3: Loosen the ball joint castle nut (do not remove yet)

• Loosen the castle nut using a 19mm socket (or 19mm wrench).
• Leave the nut threaded on a few turns. This helps prevent a sudden drop when the joint pops loose.

Step 4: Separate the ball joint stud from the lower control arm

• Install a ball joint separator tool (specialty) (a clamp-style tool that presses the joint apart without hammering) between the control arm and the ball joint stud.
• Turn the separator using a 19mm wrench or the tool’s required drive until the stud pops free.
• Remove the castle nut fully using a 19mm socket.

Step 5: Remove the knuckle pinch bolt

• Locate the ball joint “pinch” clamp on the bottom of the steering knuckle.
• Remove the pinch bolt and nut using a 14mm socket and 14mm wrench.
• Assumption: Typical pinch bolt size is 14mm on this Outback; if yours differs, match the socket to the bolt head.

Step 6: Pull the ball joint out of the steering knuckle

• Use a wire brush to clean rust around the ball joint/knuckle opening.
• Install the ball joint puller for Subaru pinch-style joint (specialty) and tighten it until the joint slides out.
• If it’s stubborn, tap the knuckle ear lightly using a hammer (16 oz) while the puller is under tension. Tap the knuckle, not the ball joint stud.

Step 7: Prep the knuckle bore and install the new ball joint

• Clean the bore in the knuckle using a wire brush.
• Align the new ball joint and push it fully into the knuckle by hand, then seat it fully using the ball joint puller for Subaru pinch-style joint (specialty) if needed.
• Install the new pinch bolt and nut using a 14mm socket and 14mm wrench.
• Torque to 45 Nm (33 ft-lbs) using a torque wrench (20–150 ft-lbs range).

Step 8: Attach the ball joint stud to the lower control arm

• Guide the stud into the lower control arm and start the castle nut by hand.
• If the stud won’t line up, gently lever the control arm with a pry bar (18") while you guide the stud into place.
• Tighten the castle nut using a 19mm socket.
• Torque to 45 Nm (33 ft-lbs) using a torque wrench (20–150 ft-lbs range).
• Align the castle nut slots with the hole and install a new cotter pin using needle-nose pliers. Tighten slightly more to align; do not loosen to align.

Step 9: Reinstall wheels

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the Outback and torque lug nuts in a star pattern using a torque wrench (20–150 ft-lbs range).
• Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• Turn the steering wheel lock-to-lock and confirm nothing binds or rubs.
• Test drive at low speed first; listen for clunks and verify straight tracking.
• Get a front-end alignment soon after ball joint replacement. Worn joints and removal can affect alignment and tire wear.
• Recheck lug nut torque after ~50 miles using a torque wrench (20–150 ft-lbs range).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $70-$220 (parts only)

You Save: $230-$830 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
