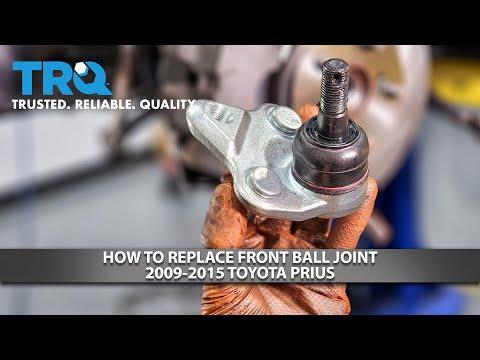

🔧 Prius - Front Lower Ball Joint Replacement

On your Prius, the front lower ball joint connects the steering knuckle to the lower control arm and allows the wheel to steer and move up/down smoothly. Replacing a worn ball joint helps eliminate clunks, looseness, uneven tire wear, and can restore safe steering control.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours (both sides)

Assumption: replacing the front lower ball joints (left/right).

---

⚠️ Safety & Precautions

• 🧯 Support the Prius with jack stands—never rely on a floor jack alone.
• 🧤 Keep the car OFF and keep the key fob away from the car so it can’t wake up while you’re under it.
• 👓 Wear safety glasses when separating the joint; it can release suddenly.
• 🛑 If you remove any brake/ABS wire clips, reinstall them exactly—don’t let wires get stretched or pinched.
• 🔩 Always use new cotter pins on the ball joint castle nuts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 17mm socket
• 19mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-200 Nm range)
• Needle-nose pliers
• Ball joint separator (specialty)
• Hammer (16 oz)
• Pry bar (12-18")
• Wire brush
• Penetrating oil
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Replace in pairs (Left + Right) - Qty: 2
• Ball joint cotter pins - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Loosen the front wheel lug nuts 1/2 turn using a 21mm socket and breaker bar before lifting.
• Spray penetrating oil on the ball joint castle nut and the three ball joint-to-knuckle bolts; let it soak while you set up.
• Know your tool: a ball joint separator is a puller tool that presses the joint apart without hammering on threads.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front of the Prius

• Lift the front using a floor jack at the front center jack point.
• Set the car down onto jack stands at the left and right front support points.
• Remove the front wheels using a 21mm socket and ratchet.

Step 2: Locate the lower ball joint

• Turn the steering left/right by hand at the tire hub to get better access.
• Find the ball joint at the bottom of the steering knuckle. It’s held by three bolts to the knuckle and a stud with a castle nut into the lower control arm.

Step 3: Remove the cotter pin and loosen the castle nut

• Straighten and remove the cotter pin using needle-nose pliers.
• Loosen (but do not fully remove yet) the ball joint castle nut using a 19mm socket and breaker bar.
• Leave nut on a few threads for safety.

Step 4: Separate the ball joint from the lower control arm

• Install the ball joint separator (specialty) between the lower control arm and the ball joint stud.
• Operate the separator per its design (usually tightening with a ratchet) until the taper “pops” free.
• If needed, use a hammer (16 oz) to strike the side of the control arm boss (not the stud threads) to help it release.
• Once separated, remove the castle nut completely using a 19mm socket.

Step 5: Unbolt the ball joint from the steering knuckle

• Remove the three ball joint-to-knuckle bolts using a 17mm socket and ratchet.
• Pull the ball joint out of the knuckle. Use a pry bar gently if it’s stuck.

Step 6: Prepare and install the new ball joint

• Clean the mounting surfaces with a wire brush.
• Position the new ball joint into the steering knuckle.
• Install the three bolts by hand first to avoid cross-threading, then snug them using a 17mm socket.
• Torque to 103 Nm (76 ft-lbs) using a torque wrench.

Step 7: Install the stud into the lower control arm

• Guide the ball joint stud into the lower control arm hole. Use a pry bar to help align if needed.
• Install the castle nut using a 19mm socket.
• Torque to 103 Nm (76 ft-lbs) using a torque wrench.
• Install a new cotter pin using needle-nose pliers, bending the legs fully over.
• Never loosen to align; tighten to align.

Step 8: Reinstall wheels and lower the Prius

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the Prius off the jack stands using the floor jack.
• Torque to 103 Nm (76 ft-lbs) in a star pattern using a torque wrench and 21mm socket.

---

✅ After Repair

• With the Prius still parked, turn the steering wheel lock-to-lock and listen for any clicking or binding.
• Test drive slowly at first; verify no clunks over bumps and the steering feels normal.
• Get a front wheel alignment as soon as possible—ball joint work can affect alignment and tire wear.
• Recheck lug nut torque after 25-50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor, both sides)

DIY Cost: $80-$220 (parts only, both sides)

You Save: $370-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
