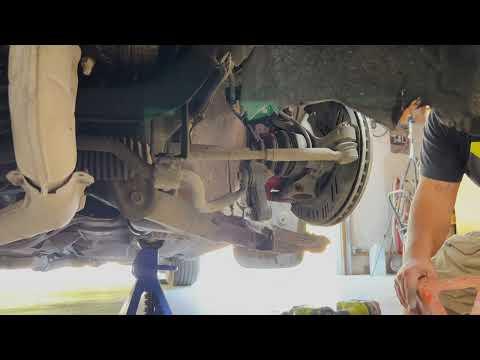

🔧 Forester - Front Lower Ball Joint Replacement

On your Forester, the serviceable ball joints are the front lower ball joints (one per side). They connect the lower control arm to the steering knuckle, and when they wear you can get clunks, wandering steering, or uneven tire wear.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the vehicle on jack stands—never rely on a floor jack alone.
• ⚠️ Keep fingers clear when separating the joint; the control arm can “spring” down.
• ⚠️ Do not pull on the ABS sensor wire or brake hose while working.
• ⚠️ If using a “pickle fork,” it can damage the ball joint boot (fine if you’re replacing the joint).
• Battery disconnect is not required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 19mm socket
• Breaker bar (1/2")
• Torque wrench (1/2")
• 14mm socket
• 14mm wrench
• 17mm socket
• Needle-nose pliers
• Flathead screwdriver
• Hammer (2 lb)
• Pry bar (18-24")
• Ball joint separator tool (specialty)
• Wire brush
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2 (Replace in pairs)
• Cotter pins (assorted size) - Qty: 2
• Front lower ball joint pinch bolt & nut - Qty: 2 (Recommended if rusted)
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Crack the front lug nuts loose with a 19mm socket and breaker bar before lifting.
• Spray penetrating oil on the ball joint pinch bolt area and the ball joint stud nut area; let it soak 5–10 minutes.
• Take a quick photo of hose/wire routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front of the vehicle at the front center jack point.
• Place jack stands (rated 3-ton minimum) under the left and right front pinch welds or approved support points.
• Lower the vehicle onto the stands and gently rock it to confirm it’s stable.

Step 2: Remove the front wheel

• Remove the lug nuts using a 19mm socket.
• Remove the wheel and set it aside.

Step 3: Remove the ball joint stud cotter pin and nut

• Straighten and remove the cotter pin with needle-nose pliers. If it’s stuck, use a flathead screwdriver to help pry it out.
• Remove the ball joint stud nut using a 17mm socket.

Step 4: Separate the ball joint stud from the lower control arm

• Install a ball joint separator tool (specialty) and separate the stud from the control arm. (A ball joint separator is a clamp-style tool that presses the joint apart without heavy hammering.)
• If needed, use a pry bar (18-24") to push the control arm down slightly while the separator breaks the taper loose.
• Keep the threads protected—don’t hammer the stud.

Step 5: Remove the ball joint pinch bolt at the steering knuckle

• Locate the pinch bolt that clamps the ball joint shank in the steering knuckle.
• Use a 14mm socket on the bolt head and a 14mm wrench on the nut to remove the pinch bolt and nut.

Step 6: Remove the ball joint from the steering knuckle

• Use a wire brush to clean rust/dirt around the ball joint where it enters the knuckle.
• Work the ball joint out of the knuckle:
  • Wiggle and pull down on the knuckle area by hand, and use a pry bar (18-24") carefully if needed.
  • If it’s seized, tap the knuckle boss (not the stud) with a hammer (2 lb) while pulling down on the ball joint.
• Once free, remove the ball joint completely.

Step 7: Install the new ball joint into the steering knuckle

• Apply a thin film of anti-seize compound to the ball joint shank (the smooth part that slides into the knuckle).
• Insert the new ball joint up into the steering knuckle fully (make sure it seats all the way).
• Reinstall the pinch bolt and nut using a 14mm socket and 14mm wrench.
• Torque to 45 Nm (33 ft-lbs) using a torque wrench (1/2").

Step 8: Attach the ball joint stud to the lower control arm

• Guide the ball joint stud into the control arm hole. Use a pry bar (18-24") to gently move the control arm if needed.
• Install the stud nut using a 17mm socket.
• Torque to 49 Nm (36 ft-lbs) using a torque wrench (1/2"), then align the nut slot with the hole and install a new cotter pin with needle-nose pliers.

Step 9: Reinstall the wheel

• Reinstall the wheel and hand-thread the lug nuts.
• Lower the vehicle off the stands using the floor jack (rated 3-ton minimum).
• Torque the lug nuts in a star pattern to 120 Nm (89 ft-lbs) using a torque wrench (1/2") and 19mm socket.

Step 10: Repeat on the other side

• Repeat Steps 1–9 for the other front ball joint.
• Replacing both keeps handling even.

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock while parked; listen for any clunks and confirm nothing binds.
• Test drive at low speed first, then normal speeds. Recheck for noises over bumps.
• Get a front-end alignment checked soon after—worn ball joints can hide alignment issues.
• Recheck lug nut torque after 25–50 miles using a torque wrench (1/2").

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $370-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
