🔧 Ball Joints - Front Lower Ball Joint Replacement

Assumption: This covers the front lower ball joints and recommends replacing them in pairs.

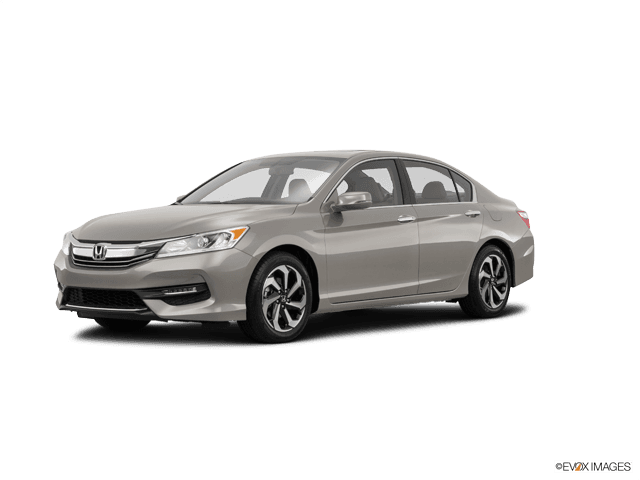

The lower ball joint connects the front wheel knuckle to the lower control arm. When it gets loose or worn, you may hear clunks, feel wander in the steering, or see uneven tire wear. On your Accord, the safest repair is to replace both front lower ball joints together and then have the alignment checked.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Support the car with jack stands; never work under a car held up only by a jack.
• Use wheel chocks on the rear wheels before lifting the front.
• Keep hands clear of the spring and control arm area. Suspension parts can move suddenly.
• If the axle or steering knuckle must be moved, do not let the brake hose stretch.
• Battery disconnect is not required for this repair.
• After the repair, an alignment is required.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar
• Torque wrench
• 17mm socket
• 19mm socket
• 22mm socket
• Ratchet
• Socket extension
• Ball joint separator (specialty)
• Hammer
• Pry bar
• Needle-nose pliers
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Replace in pairs - Qty: 2
• Ball joint nut - Qty: 2
• Cotter pin - Qty: 2
• Front wheel alignment - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Break the front lug nuts loose before lifting the car.
• Raise the front of the car and support it with jack stands.
• Remove the front wheel on the side you are servicing.
• If both sides are being replaced, do one side at a time so the other side can guide the parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front wheel

• Use a 19mm socket and breaker bar to loosen the lug nuts, then remove the wheel after lifting the car.

Step 2: Free the ball joint from the steering knuckle

• Remove the cotter pin with needle-nose pliers.
• Use a 22mm socket to remove the ball joint nut.
• Use a ball joint separator (specialty) to pop the stud out of the knuckle.
• Do not strike the stud directly.

Step 3: Remove the lower ball joint from the control arm

• Use a 17mm socket and ratchet to remove the ball joint mounting bolts from the lower control arm.
• Support the control arm with a floor jack if it starts to drop.
• Remove the old ball joint from the vehicle.

Step 4: Install the new ball joint

• Position the new ball joint in the lower control arm.
• Install the mounting bolts by hand first using a 17mm socket.
• Tighten the mounting bolts with a torque wrench to factory specification.
• Insert the ball joint stud into the knuckle.
• Install the new nut using a 22mm socket and tighten to factory specification.
• Install a new cotter pin with needle-nose pliers.
• Never reuse cotter pins.

Step 5: Reinstall the wheel

• Put the wheel back on and hand-tighten the lug nuts.
• Lower the car and use a torque wrench with a 19mm socket to tighten the lug nuts to factory specification.

Step 6: Repeat on the other side

• If replacing both sides, repeat the same procedure on the opposite front ball joint.

---

✅ After Repair

• Start the car and turn the steering wheel left and right to check for noise.
• Road test slowly at first and listen for clunks or popping.
• Book a front-end alignment as soon as possible.
• Recheck the lug nut torque after the first drive.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$900 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $380-$620 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
