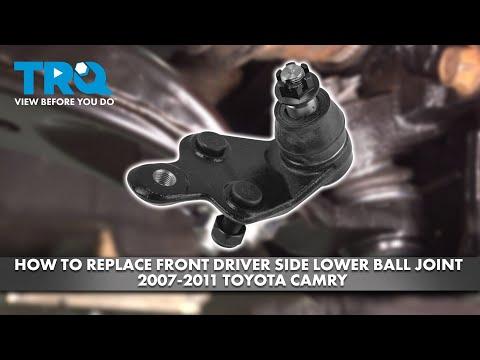

🔧 Camry - Front Lower Ball Joint Replacement

On your Camry, the ball joint is the pivot that lets the front steering knuckle move while supporting the vehicle. Replacing worn ball joints helps fix clunks, loose steering, uneven tire wear, and is a major safety item.

Difficulty Level: Advanced | Estimated Time: 2.5-5.0 hours (both sides)

---

⚠️ Safety & Precautions

• ⚠️ Support the car on jack stands; never rely on a jack.
• ⚠️ Do not put hands between the control arm and knuckle while separating the joint.
• ⚠️ If using a hammer near the knuckle, protect the ABS wheel speed sensor wire from damage.
• ⚠️ Wear safety glasses; rust and cotter pins can snap.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar (1/2")
• Torque wrench (1/2" drive, 20-200 ft-lbs range)
• Socket set (8mm-22mm, 1/2" drive)
• Wrench set (10mm-22mm)
• Needle-nose pliers
• Cotter pin puller
• Ball joint separator (pickle fork) (specialty)
• Hammer (2-3 lb)
• Pry bar (18")
• Wire brush
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Replace in pairs (left + right) - Qty: 2
• Ball joint cotter pins - Qty: 2
• Ball joint castle nuts - Qty: 2

---

📋 Before You Begin

• Park on level ground, steering wheel straight, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Break loose the front lug nuts 1/2 turn using a 21mm socket and breaker bar before lifting.
• Spray the ball joint nut/bolts with penetrating oil and let it soak 5-10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front

• Lift the front using a floor jack at the front center jacking point.
• Place jack stands under the front side pinch welds/subframe points and lower onto the stands.
• Remove the front wheel using a 21mm socket.

Step 2: Locate the lower ball joint

• The lower ball joint sits between the steering knuckle (the part your wheel hub bolts to) and the lower control arm (the main lower suspension arm).
• Clean exposed threads and bolt heads using a wire brush.

Step 3: Remove the cotter pin and loosen the castle nut

• Straighten and remove the cotter pin using needle-nose pliers or a cotter pin puller.
• Loosen (but do not fully remove yet) the ball joint castle nut using a 19mm socket and breaker bar.
• Leave the nut on a few threads for safety.

Step 4: Separate the ball joint from the steering knuckle

• Position the ball joint separator (pickle fork) between the ball joint stud and the knuckle.
• Drive the separator in using a 2-3 lb hammer until the taper “pops” loose.
• Remove the castle nut fully using a 19mm socket.
• Support the knuckle so it doesn’t tug on the ABS wire (use a pry bar carefully or hold it by hand).
• Don’t let the knuckle hang by the hose.

Step 5: Unbolt the ball joint from the lower control arm

• Remove the ball joint mounting bolts/nuts at the lower control arm using the appropriate socket set (typically 14mm-17mm).
• If bolts are stubborn, re-apply penetrating oil and use a breaker bar.
• Remove the ball joint from the control arm.

Step 6: Install the new ball joint

• Position the new ball joint on the control arm and hand-start all mounting bolts using your socket set.
• Tighten the ball joint-to-control arm bolts using a torque wrench: Torque to 127 Nm (94 ft-lbs).

Step 7: Reconnect the ball joint stud to the steering knuckle

• Guide the ball joint stud into the knuckle.
• Install the new castle nut by hand, then tighten using a torque wrench and 19mm socket: Torque to 140 Nm (103 ft-lbs).
• Align the castle nut slot with the hole in the stud by tightening slightly (do not loosen to align).
• Install a new cotter pin using needle-nose pliers and bend the ends over.

Step 8: Reinstall the wheel and lower the car

• Reinstall the wheel and hand-tighten lug nuts using a 21mm socket.
• Lower the car off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a torque wrench: Torque to 103 Nm (76 ft-lbs).

Step 9: Repeat on the other side

• Repeat Steps 1-8 for the other front ball joint.
• Replace ball joints in pairs.

---

✅ After Repair

• Turn the steering wheel lock-to-lock while parked and listen for clunks or binding.
• Road test at low speed first; re-check for noise over bumps.
• Get a front wheel alignment as soon as possible (ball joint work can affect alignment/steering feel).
• After 50-100 miles, re-check lug nut torque using a torque wrench: 103 Nm (76 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $370-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
