🔧 Tucson - Front Lower Ball Joint Replacement

The front lower ball joints connect the lower control arms to the steering knuckles and let the front wheels steer and move with the suspension. On your Tucson, the lower ball joint is serviceable separately from the lower control arm, but it is bolted and pressed/taper-fitted into the steering knuckle area, so careful separation and torqueing are important.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Support your Tucson with jack stands before working underneath. Never rely on a jack alone.
• ⚠️ Ball joints hold suspension load and steering alignment. A loose or damaged joint can cause loss of control.
• ⚠️ Replace ball joints in pairs when possible so both sides have equal wear.
• ⚠️ Do not hammer directly on the threaded ball joint stud. Damaged threads can prevent safe reassembly.
• ⚠️ An alignment is required after ball joint replacement because suspension position can change.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm lug nut socket
• 17mm socket
• 19mm socket
• 22mm socket
• 17mm wrench
• 19mm wrench
• 3/8-inch ratchet
• 1/2-inch breaker bar
• 1/2-inch torque wrench
• Ball joint separator tool (specialty)
• Ball joint press kit (specialty)
• Needle-nose pliers
• Flat-blade screwdriver
• Hammer 24 oz
• Pry bar 18-inch
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Paint marker
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Ball joint castle nut or self-locking nut - Qty: 2
• Ball joint cotter pin - Qty: 2
• Ball joint mounting bolts - Qty: 6
• Wheel alignment service - Qty: 1

---

📋 Before You Begin

• Park your Tucson on level ground and apply the parking brake.
• Place wheel chocks behind the rear wheels.
• Loosen the front lug nuts slightly before lifting the vehicle.
• Spray penetrating oil on the ball joint nut and mounting bolts before starting.
• A ball joint separator is a tool that separates the tapered ball joint stud from the steering knuckle without damaging the steering parts.
• A ball joint press is a clamp-style tool that pushes a pressed joint in or out squarely.
• If your replacement joint bolts to the lower control arm instead of pressing in, you may not need the ball joint press kit.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 21mm lug nut socket and 1/2-inch breaker bar to loosen the front wheel lug nuts about 1/2 turn.
• Do not remove the lug nuts yet.
• Loosen wheels before lifting.

Step 2: Lift and Support the Front of the Vehicle

• Use a floor jack rated 3-ton minimum under the front subframe lift point.
• Raise the front of your Tucson high enough for safe access.
• Place jack stands rated 3-ton minimum under the reinforced front side support points.
• Lower the vehicle gently onto the jack stands.
• Shake the vehicle lightly by hand to confirm it is stable before working.

Step 3: Remove the Front Wheel

• Use a 21mm lug nut socket and 3/8-inch ratchet to remove the loosened lug nuts.
• Remove the front wheel and place it flat under the vehicle as a backup safety cushion.

Step 4: Inspect and Mark the Ball Joint Position

• Use a paint marker to mark the position of the ball joint flange against the lower control arm.
• This helps place the new joint close to the old position before alignment.
• Check whether the ball joint is bolted to the lower control arm with three bolts or pressed into the control arm.

Step 5: Remove the Cotter Pin and Ball Joint Nut

• Use needle-nose pliers to straighten and pull out the cotter pin from the ball joint stud if equipped.
• Use a 17mm socket or 19mm socket with a 3/8-inch ratchet to loosen the ball joint stud nut.
• Leave the nut threaded on a few turns to protect the threads while separating the joint.

Step 6: Separate the Ball Joint from the Steering Knuckle

• Install the ball joint separator tool between the lower control arm ball joint and the steering knuckle.
• Use a 19mm socket and 3/8-inch ratchet to tighten the separator tool until the taper pops loose.
• If it is stuck, tap the side of the steering knuckle with a hammer 24 oz while keeping pressure on the separator tool.
• Remove the ball joint nut fully once the taper is separated.
• The pop sound is normal.

Step 7: Support the Lower Control Arm

• Use the floor jack rated 3-ton minimum under the lower control arm to support it lightly.
• Do not lift the vehicle off the jack stand.
• This prevents the control arm from dropping suddenly when the joint is removed.

Step 8: Remove the Ball Joint Mounting Bolts

• Use a 17mm socket and 3/8-inch ratchet to remove the ball joint mounting bolts from the lower control arm.
• Use a 17mm wrench on the nut side if the bolts spin.
• If equipped with larger fasteners, use a 19mm socket and 19mm wrench.
• Remove the ball joint from the lower control arm.

Step 9: Remove a Pressed-Style Ball Joint if Equipped

• If your Tucson has a pressed-style replacement joint, use a ball joint press kit to press the old joint out of the lower control arm.
• Choose the receiver cup from the ball joint press kit that fully clears the joint body.
• Use a 22mm socket and 1/2-inch breaker bar on the press screw to push the ball joint out squarely.
• Clean the bore with a clean shop towel before installation.
• If your joint is bolt-on, skip this step.

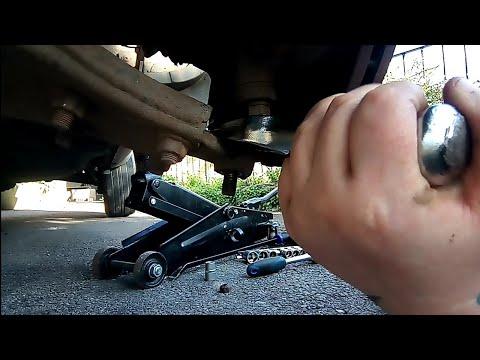

Step 10: Install the New Ball Joint

• Position the new front lower ball joint against the lower control arm using your paint marks as a guide.
• For bolt-on style, install the new ball joint mounting bolts by hand first so they do not cross-thread.
• Use a 17mm socket and 17mm wrench to snug the mounting bolts evenly.
• For pressed-style, use the ball joint press kit and 22mm socket to press the new joint into the control arm until fully seated.
• Make sure the joint sits flat and square before tightening.

Step 11: Torque the Ball Joint Mounting Bolts

• Use a 1/2-inch torque wrench and 17mm socket to tighten the ball joint mounting bolts.
• Tighten each bolt evenly in stages.
• Torque to 78-98 Nm (58-72 ft-lbs).

Step 12: Reconnect the Ball Joint to the Steering Knuckle

• Guide the ball joint stud into the steering knuckle by hand.
• Use the floor jack rated 3-ton minimum under the lower control arm to raise it slightly if needed.
• Install the new ball joint nut by hand first.
• Use a 19mm socket and 1/2-inch torque wrench to tighten the nut.
• Torque to 59-78 Nm (44-58 ft-lbs).
• If using a castle nut, continue tightening only enough to line up the cotter pin hole. Do not loosen the nut to align it.
• Install a new cotter pin with needle-nose pliers and bend the ends around the nut.

Step 13: Reinstall the Front Wheel

• Place the wheel back on the hub by hand.
• Install the lug nuts by hand first to avoid cross-threading.
• Use a 21mm lug nut socket and 3/8-inch ratchet to snug the lug nuts in a star pattern.

Step 14: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack rated 3-ton minimum to raise the vehicle slightly off the jack stands.
• Remove the jack stands.
• Lower your Tucson until the tire just touches the ground and cannot spin.
• Use a 1/2-inch torque wrench and 21mm lug nut socket to tighten the lug nuts in a star pattern.
• Torque to 88-107 Nm (65-79 ft-lbs).
• Lower the vehicle fully.

Step 15: Repeat on the Other Side

• Use the same steps and tools on the opposite front lower ball joint.
• Replacing both sides is recommended because ball joints wear as a pair.

---

✅ After Repair

• ✅ Turn the steering wheel lock-to-lock while parked and listen for popping or binding.
• ✅ Test drive slowly first and check that the steering feels normal.
• ✅ Recheck the ball joint nuts, mounting bolts, and lug nuts after the first short drive.
• ✅ Schedule a front wheel alignment immediately to prevent tire wear and steering pull.
• ✅ If you hear clunking, feel wandering, or see the steering wheel off-center, stop driving and recheck the repair.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor, both sides)

DIY Cost: $90-$240 (parts only, both sides)

You Save: $360-$610 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
