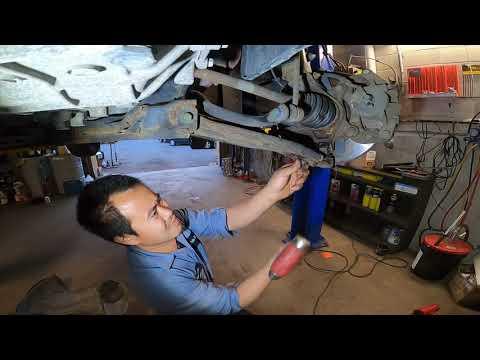

🔧 Tucson - Front Lower Ball Joint Replacement

This repair replaces the front lower ball joint, which connects the lower control arm to the steering knuckle and lets the front suspension pivot safely while steering. On your Tucson, the lower ball joint is serviced with the lower control arm assembly, which is the safest and most practical DIY method.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours per side

---

⚠️ Safety & Precautions

• ⚠️ Never work under your Tucson supported only by a jack. Always use jack stands.
• ⚠️ Suspension parts can pop loose suddenly. Keep your hands clear when separating the ball joint from the steering knuckle.
• ⚠️ Replace ball joints/control arms in pairs if both sides show wear, clunking, torn boots, or loose movement.
• ⚠️ Do not hammer directly on the threaded ball joint stud. This can damage the new part or steering knuckle.
• ⚠️ A wheel alignment is required after replacing a lower control arm or ball joint.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 21mm lug nut socket
• 1/2-inch drive breaker bar
• 1/2-inch drive ratchet
• 17mm socket
• 19mm socket
• 22mm socket
• 17mm combination wrench
• 19mm combination wrench
• 22mm combination wrench
• Torque wrench (10-150 ft-lbs)
• Ball joint separator tool (specialty)
• Pry bar 18-inch
• Hammer 2-lb
• Needle-nose pliers
• Penetrating oil spray
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm with ball joint - Qty: 1 per side
• Ball joint castle nut - Qty: 1 per side
• Ball joint cotter pin - Qty: 1 per side
• Lower control arm mounting bolts and nuts - Qty: 1 set per side
• Front wheel alignment service - Qty: 1

---

📋 Before You Begin

• 📋 Park your Tucson on level ground and set the parking brake.
• 📋 Place wheel chocks behind the rear wheels so the vehicle cannot roll.
• 📋 Loosen the front lug nuts slightly before lifting the vehicle.
• 📋 Spray penetrating oil on the lower ball joint nut and lower control arm mounting bolts. Let it soak for 10-15 minutes.
• 📋 A ball joint separator is a tool that wedges between the ball joint and steering knuckle to safely pop the tapered joint loose.
• 📋 A torque wrench is a tool that tightens bolts to the correct tightness, measured in ft-lbs or Nm.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 21mm lug nut socket and 1/2-inch drive breaker bar to loosen the lug nuts about 1/2 turn.
• Do not remove the lug nuts yet.
• Loosen before lifting for safety.

Step 2: Lift and Support the Front

• Use a floor jack under the front center jacking point or the correct side pinch weld area.
• Raise the front of your Tucson high enough to remove the wheel.
• Place jack stands under the reinforced side jacking points.
• Lower the vehicle gently onto the jack stands.
• Shake the vehicle lightly by hand to confirm it is stable.

Step 3: Remove the Wheel

• Use the 21mm lug nut socket and 1/2-inch drive ratchet to remove the lug nuts.
• Remove the wheel and place it flat under the side of the vehicle as an extra safety backup.

Step 4: Mark the Control Arm Position

• Use a paint marker to mark where the lower control arm brackets meet the subframe.
• This helps you install the new arm close to the original position.
• It does not replace a wheel alignment.

Step 5: Remove the Ball Joint Cotter Pin

• Use needle-nose pliers to straighten and pull out the cotter pin from the lower ball joint stud.
• The cotter pin is a small locking pin that keeps the nut from backing off.
• Discard the old cotter pin. Do not reuse it.

Step 6: Loosen the Lower Ball Joint Nut

• Use a 19mm socket and 1/2-inch drive ratchet to loosen the lower ball joint castle nut.
• Leave the nut threaded on a few turns. This helps catch the joint when it pops loose.
• If the stud spins, use upward pressure with a pry bar 18-inch while loosening with the 19mm socket.

Step 7: Separate the Ball Joint from the Steering Knuckle

• Place the ball joint separator tool between the lower control arm ball joint and the steering knuckle.
• Use a hammer 2-lb or the separator screw, depending on tool style, to pop the taper loose.
• Once loose, use the 19mm socket to remove the castle nut completely.
• Move the steering knuckle slightly aside by hand. Do not pull hard on the brake hose or axle.
• Keep fingers away from pinch points.

Step 8: Remove the Lower Control Arm Mounting Bolts

• Use a 17mm socket, 19mm socket, or 22mm socket as fitted to remove the lower control arm mounting bolts and nuts.
• Hold the opposite side with the matching 17mm combination wrench, 19mm combination wrench, or 22mm combination wrench.
• There are front and rear mounting points on the lower control arm.
• Support the control arm by hand as the last bolt comes out.

Step 9: Remove the Old Lower Control Arm

• Use a pry bar 18-inch to gently work the lower control arm out of the subframe brackets.
• Remove the arm from the vehicle.
• Compare the old and new control arms side by side before installation.
• Make sure the ball joint stud, bushings, and mounting points match.

Step 10: Install the New Lower Control Arm

• Slide the new front lower control arm with ball joint into the subframe brackets by hand.
• Use a pry bar 18-inch only if needed to align the bushing sleeves.
• Install the control arm bolts and nuts by hand first.
• Do not fully tighten the control arm bushing bolts yet.
• Hand-start bolts to avoid cross-threading.

Step 11: Connect the Ball Joint to the Steering Knuckle

• Guide the new ball joint stud into the steering knuckle by hand.
• Install the new castle nut by hand.
• Use a 19mm socket and torque wrench to tighten the ball joint nut to Torque to 78-98 Nm (58-72 ft-lbs).
• Continue tightening slightly only if needed to line up the cotter pin hole. Do not loosen the nut to align the hole.
• Use needle-nose pliers to install and bend the new cotter pin.

Step 12: Preload the Suspension Before Final Tightening

• Use the floor jack under the outer end of the lower control arm.
• Raise the control arm until it sits near normal ride height.
• This prevents twisting the rubber bushings after the vehicle is lowered.
• A bushing is a rubber mount that lets the suspension move while reducing noise and vibration.

Step 13: Torque the Control Arm Bolts

• Use the correct 17mm socket, 19mm socket, or 22mm socket with the torque wrench.
• Hold the opposite side with the matching combination wrench.
• Tighten the lower control arm mounting bolts to Torque to 98-118 Nm (72-87 ft-lbs).
• If your replacement hardware includes a different torque instruction, follow the hardware supplier’s specification.

Step 14: Reinstall the Wheel

• Install the wheel by hand.
• Use the 21mm lug nut socket and 1/2-inch drive ratchet to snug the lug nuts in a star pattern.
• Do not fully torque the lug nuts while the wheel is in the air.

Step 15: Lower and Torque the Wheel

• Use the floor jack to raise the vehicle slightly off the jack stands.
• Remove the jack stands.
• Lower your Tucson until the tire touches the ground.
• Use the 21mm lug nut socket and torque wrench to tighten lug nuts in a star pattern to Torque to 88-108 Nm (65-80 ft-lbs).

---

✅ After Repair

• ✅ Turn the steering wheel lock-to-lock while parked and listen for clunks or binding.
• ✅ Test drive slowly first. Listen for knocking, popping, or pulling.
• ✅ Recheck the lug nut torque after the first short drive.
• ✅ Schedule a front wheel alignment as soon as possible.
• ✅ If the steering wheel is off-center or the vehicle pulls, avoid highway driving until aligned.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 per side (parts + labor)

DIY Cost: $90-$220 per side (parts only)

You Save: $260-$430 per side by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours per side.

---
