🔧 Ball Joints - Replacement

This covers the front lower ball joints on your CR-V. On this suspension, the ball joint is a critical steering and suspension pivot, so the job requires safely separating the knuckle, pressing the new joint in, and then getting a wheel alignment afterward.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Support the vehicle with jack stands on solid, level ground. Never work under a vehicle supported only by a jack.
• Keep hands clear when separating the steering knuckle. Stored suspension force can release suddenly.
• Do not reuse damaged cotter pins or stretched fasteners.
• Do not final-torque suspension bushings while the suspension is hanging. Final tighten at normal ride height where applicable.
• A wheel alignment is required after this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench
• Breaker bar
• Torque wrench
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 19mm socket
• 21mm socket
• Ratchet
• Long extension
• Ball joint separator tool
• Ball joint press kit (specialty)
• Hammer
• Flat-blade screwdriver
• Pliers
• Wire brush
• Penetrating oil
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Ball joint pinch bolt and nut - Qty: 2
• Cotter pins - Qty: 2
• Front wheel alignment service - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front lug nuts before lifting the vehicle.
• Spray penetrating oil on all ball joint fasteners and let it soak.
• Plan for a front-end alignment after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the vehicle

• Use a floor jack to raise the front of the CR-V at the approved lift point.
• Place the vehicle on jack stands and chock the rear wheels.
• Remove the front wheel with a lug wrench.

Step 2: Remove the lower splash shield if needed

• Use a 10mm socket or 12mm socket to remove any lower covers blocking access.
• Set fasteners aside in order so reassembly is easier.

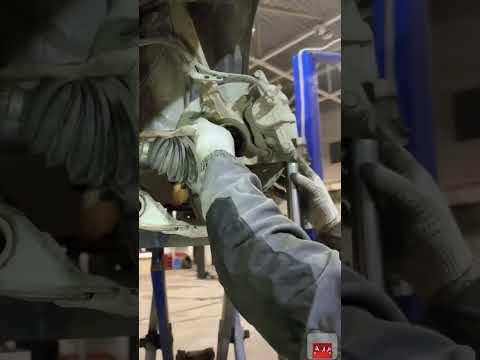

Step 3: Disconnect the ball joint from the knuckle

• Use a 17mm socket or 19mm socket to remove the pinch bolt or retaining fastener, depending on what is fitted.
• Use a ball joint separator tool to free the taper from the steering knuckle.
• Work slowly to avoid tearing nearby boots.

Step 4: Remove the old ball joint

• Use a ratchet and socket set to remove the remaining fasteners.
• If the joint is pressed in, use the ball joint press kit to drive it out of the control arm or knuckle.
• Clean the mounting bore with a wire brush and wipe away rust and dirt.

Step 5: Install the new ball joint

• Use the ball joint press kit to install the new joint straight and fully seated.
• Install the new pinch bolt and nut by hand first.
• Torque the ball joint fastener to factory specification for your CR-V.

Step 6: Reconnect the suspension

• Raise the lower arm slightly with a floor jack if needed to line up the joint.
• Reinstall any cotter pins or locking hardware.
• Torque any control arm or knuckle fasteners to factory specification.

Step 7: Reassemble the wheel area

• Reinstall the splash shield with a 10mm socket or 12mm socket.
• Reinstall the wheel and snug the lug nuts by hand.
• Lower the vehicle and torque the lug nuts to 108 Nm (80 ft-lbs).
• Repeat the procedure on the other side if replacing both ball joints.

---

✅ After Repair

• Start the vehicle and turn the steering wheel lock to lock.
• Check for clunks, pops, or loose steering feel.
• Road test at low speed first.
• Schedule a four-wheel alignment immediately.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $360-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
