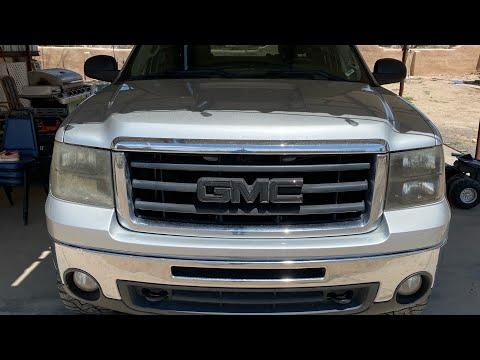

🔧 Ball Joints - Front Lower Ball Joint Replacement

Your Sierra uses front suspension ball joints that allow the steering knuckle to move up and down smoothly. A worn ball joint can cause clunks, uneven tire wear, and loose steering, so replacement is important for safety.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Support the truck securely on jack stands before removing any suspension parts.
• Use wheel chocks on the rear wheels so the truck cannot roll.
• Ball joint work can release stored suspension tension. Keep hands clear when separating the knuckle.
• Do not let the brake hose hang by itself.
• An alignment is required after this repair.
• If your truck has electronic stability or steering angle sensors, the steering wheel should stay centered during reassembly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated for truck weight)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar
• Torque wrench
• 15mm socket
• 18mm socket
• 21mm socket
• 24mm socket
• Ball joint press kit (specialty)
• Pickle fork or ball joint separator (specialty)
• Hammer
• Pry bar
• Needle nose pliers
• Paint marker
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Ball joint snap ring - Qty: 2
• Ball joint retaining hardware kit - Qty: 1
• Front wheel alignment - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front lug nuts before lifting the truck.
• Spray penetrating oil on the ball joint and knuckle fasteners before starting.
• If the truck has aftermarket suspension parts, inspect them before reassembly.
• This guide covers the front lower ball joints. On your Sierra, upper ball joints are usually serviced with the upper control arm assembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack to lift the front of the truck.
• Place jack stands under the frame and lower the truck onto them.
• Remove the front wheel with a 21mm socket.
• Never work under a truck held only by a jack.

Step 2: Remove the brake and steering components from the knuckle

• Use an 18mm socket and 15mm socket to remove the brake caliper and bracket.
• Hang the caliper with wire or a bungee cord so the hose is not stretched.
• Use a 21mm socket to remove the outer tie rod nut from the steering knuckle.
• Use a pickle fork or ball joint separator to separate the tie rod end.

Step 3: Separate the lower ball joint from the steering knuckle

• Use a 24mm socket and breaker bar to remove the lower ball joint nut.
• Use a ball joint separator or pickle fork to release the ball joint stud from the knuckle.
• Support the lower control arm with the floor jack so the suspension does not drop suddenly.
• Mark the knuckle position if needed.

Step 4: Remove the old lower ball joint

• Remove the snap ring with needle nose pliers.
• Use the ball joint press kit to press the old ball joint out of the lower control arm.
• Clean the bore in the control arm with a wire brush if needed.

Step 5: Install the new lower ball joint

• Position the new ball joint in the control arm.
• Use the ball joint press kit to press it fully into place.
• Install the new snap ring with needle nose pliers.
• Torque to 33 Nm (24 ft-lbs) if your replacement hardware kit uses a fastener style mount; press-fit joints must be fully seated.

Step 6: Reassemble the knuckle and steering parts

• Insert the ball joint stud into the steering knuckle.
• Install the new lower ball joint nut with a 24mm socket.
• Torque to 122 Nm (90 ft-lbs).
• Reconnect the outer tie rod end and tighten it with a 21mm socket.
• Torque to 55 Nm (41 ft-lbs).
• Reinstall the brake bracket and caliper using an 18mm socket and 15mm socket.
• Torque to 129 Nm (95 ft-lbs) for the caliper bracket bolts.

Step 7: Repeat on the other side

• Repeat the same process on the opposite front wheel.
• Replace ball joints in pairs.

Step 8: Reinstall wheels and lower the truck

• Install the wheel with a 21mm socket.
• Torque to 190 Nm (140 ft-lbs) for the lug nuts.
• Lower the truck to the ground with the floor jack.

---

✅ After Repair

• Start the truck and turn the steering wheel left and right to check for noise.
• Verify the brakes feel normal before driving.
• Drive slowly at first and listen for clunks or popping.
• Get a professional front-end alignment as soon as possible.
• Recheck all fasteners after the first short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $330-$640 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
