🔧 Camry - Front Ball Joint Replacement

On your Camry, the “ball joint” that commonly wears is the front lower ball joint. Most OEM-style repairs replace the front lower control arm assembly because the ball joint is built into it, restoring safe steering and tire wear.

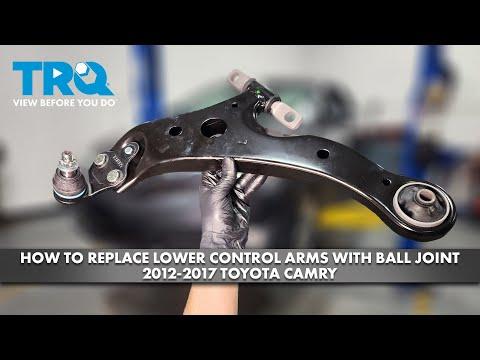

Assumption: This procedure replaces the front lower control arm (includes ball joint) on each side.

Difficulty Level: Advanced | Estimated Time: 2.5-4.0 hours (both sides)

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and use jack stands; never rely on a floor jack alone.
• ⚠️ Keep hands clear of pinch points when separating the joint from the steering knuckle.
• ⚠️ Do not pull or over-stretch the ABS wheel-speed sensor wire or brake hose.
• ⚠️ Final tightening of control-arm bushings should be done at normal ride height to avoid bushing damage.
• ⚠️ An alignment is required after this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 3/8" (10–100 ft-lbs)
• Torque wrench 1/2" (50–250 ft-lbs)
• Socket set 10mm–22mm (3/8" and 1/2" drive)
• Wrench set 14mm–22mm
• 21mm socket
• Needle-nose pliers
• Hammer (2–3 lb)
• Pry bar (18–24")
• Ball joint separator (specialty)
• Paint marker
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm assembly (includes ball joint) - Replace in pairs - Qty: 2
• New ball joint/knuckle nut - Qty: 2
• New cotter pin - Qty: 2
• Stabilizer (sway bar) link nut(s) - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Use a 21mm socket to slightly loosen the front wheel lug nuts before lifting.
• Lift the front and support the car with jack stands at the proper front support points.
• Spray penetrating oil on the ball joint nut and the control-arm mounting bolts; let it soak 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front wheel

• Use a 21mm socket to remove the lug nuts and remove the wheel.

Step 2: Free the stabilizer (sway bar) link from the control arm

• Use a 17mm or 19mm socket (varies by link) to remove the stabilizer link nut at the control arm.
• If the stud spins, hold it with the appropriate hex key (commonly 5mm or 6mm) while turning the nut with a wrench.
• Tip: Clean threads first for easier removal.

Step 3: Remove the lower ball joint nut (at the steering knuckle)

• Remove the cotter pin using needle-nose pliers.
• Use a 19mm socket (common) to remove the ball joint nut.
• If the nut is a “castle nut” (slots), discard it and plan to install a new one.

Step 4: Separate the ball joint from the steering knuckle

• Install the ball joint separator (specialty) between the knuckle and the ball joint stud.
• Use a hammer (2–3 lb) or the separator’s screw (depending on style) to “pop” the taper loose.
• Tip: Support the knuckle so it doesn’t drop.

Step 5: Unbolt the control arm from the subframe

• Use a paint marker to mark the general position of the control arm washers/bolts (helps reassembly).
• Use a breaker bar 1/2" and the correct socket (typically 19mm–22mm) to remove the control arm mounting bolts (front and rear).
• Use a pry bar to guide the control arm out of the subframe pockets.

Step 6: Install the new control arm (with ball joint)

• Position the new control arm into the subframe and start the mounting bolts by hand using the correct socket (typically 19mm–22mm).
• Guide the ball joint stud into the steering knuckle.
• Install the new ball joint nut by hand using the correct socket.

Step 7: Tighten fasteners (initial tightening)

• Tighten the ball joint nut using a torque wrench 1/2": Torque to 118 Nm (87 ft-lbs), then tighten further only as needed to align the cotter pin hole.
• Install a new cotter pin using needle-nose pliers and bend the legs over.
• Reconnect the stabilizer link and tighten using a torque wrench: Torque to 74 Nm (55 ft-lbs).

Step 8: Final-tighten control arm bushing bolts at ride height

• Reinstall the wheel using a 21mm socket and snug the lug nuts.
• Lower the car so the suspension is at normal ride height (vehicle weight on wheels), or use a floor jack under the control arm to raise it until the hub-to-fender height looks normal.
• Use a torque wrench 1/2" to tighten the control arm mounting bolts: Torque to 137 Nm (101 ft-lbs) (front) and Torque to 175 Nm (129 ft-lbs) (rear).
• Tip: Ride-height tightening prevents bushing twist.

Step 9: Torque the wheels

• Use a torque wrench 1/2" to torque lug nuts in a star pattern: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Start the engine and turn the steering wheel lock-to-lock; confirm nothing binds or clunks.
• Road test at low speed first, then moderate speed; listen for popping noises over bumps.
• Get a 4-wheel alignment as soon as possible to prevent tire wear.
• Recheck lug nut torque after 25–50 miles using a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $220-$520 (parts only, both sides)

You Save: $430-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
