🔧 Sonata - Ball Joint Replacement

On your Sonata, “ball joint replacement” usually means the front lower ball joint, which connects the steering knuckle to the lower control arm. Depending on the exact front suspension build, Hyundai may service the ball joint as part of the complete lower control arm (most common) rather than as a separate pressed-in joint.

Difficulty Level: Advanced | Estimated Time: 2-4 hours (per side)

---

⚠️ Safety & Precautions

• ⚠️ Support the car on jack stands—never rely on a floor jack alone.
• ⚠️ Keep the car OFF and the key fob far away so it cannot go to READY mode.
• ⚠️ Do not touch or pull on orange high-voltage cables (hybrid system).
• ⚠️ Wear eye protection when separating the ball joint; parts can pop loose suddenly.
• ⚠️ You will need a professional alignment after this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar 1/2"
• Torque wrench 1/2"
• Metric socket set 10mm-24mm
• Metric wrench set 10mm-24mm
• Needle-nose pliers
• Hammer (2 lb)
• Pry bar 18"
• Ball joint separator (specialty)
• Punch set
• Penetrating oil
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower control arm (with ball joint) - Qty: 1 (Left or Right)
• Front lower ball joint - Qty: 1 (only if your Sonata uses a serviceable joint)
• Ball joint nut (new, self-locking) - Qty: 1
• Cotter pin - Qty: 1
• Control arm mounting hardware kit - Qty: 1 (recommended)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting.
• Spray penetrating oil on the ball joint nut and control arm bolts 10-15 minutes before removal.
• Quick confirm so I can give the exact correct steps and torque specs: are you replacing the front ball joint (most common), and do you have a complete lower control arm or a ball joint only?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front corner

• Use a floor jack (rated 3-ton minimum) at the approved front jacking point and raise the car.
• Place jack stands (rated 3-ton minimum) under solid frame/support points and lower the car onto them.
• Remove the wheel using a metric socket set 10mm-24mm.

Step 2: Confirm what’s being replaced

• Look at the joint where the lower control arm meets the steering knuckle.
• If the ball joint is built into the control arm, plan to replace the front lower control arm (with ball joint).
• If the ball joint is separate/press-in, you’ll need the correct front lower ball joint and likely a press setup.
• Ball joint separator pops it loose safely.

Step 3: Separate the ball joint from the steering knuckle

• Remove the cotter pin using needle-nose pliers (if equipped).
• Loosen/remove the ball joint nut using a metric socket set 10mm-24mm and breaker bar 1/2".
• Install and operate the ball joint separator (specialty) until the taper pops free.
• If needed, strike the side of the knuckle boss with a hammer (2 lb) to help release the taper (do not hit the stud threads).

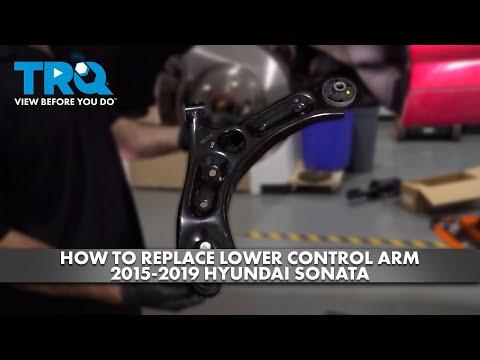

Step 4: If replacing the complete lower control arm, remove the arm

• Support the lower control arm lightly with the floor jack (rated 3-ton minimum).
• Mark the position of any cam/adjustment bolts (if present) using a paint marker.
• Remove the control arm-to-subframe bolts using a metric socket set 10mm-24mm and breaker bar 1/2".
• Use a pry bar 18" as needed to guide the arm out.

Step 5: Install the new control arm (or stop here for press-in joint path)

• Position the new arm and start all bolts by hand using a metric wrench set 10mm-24mm.
• Connect the ball joint stud into the knuckle and install the new nut using a metric socket set 10mm-24mm.
• STOP HERE: Final tightening/torque specs and “tighten-at-ride-height” steps must match your exact front suspension version.

---

✅ After Repair

• Reinstall the wheel and hand-tighten lug nuts, then lower the car and torque them with a torque wrench 1/2".
• Get a 4-wheel alignment as soon as possible.
• Test drive at low speed first; listen for clunks and confirm straight tracking.

---

💰 DIY vs Shop Cost

Shop Cost: ₹10,000-₹25,000 (parts + labor, per side)

DIY Cost: ₹4,000-₹15,000 (parts only, per side)

You Save: ₹6,000-₹10,000 by doing it yourself!

Local labor rates vary; most shops book this at ~2-4 hours.

---
