🔧 Grand Cherokee - Front Control Arm Replacement

This guide covers replacing the front upper and lower control arms on your Grand Cherokee. Control arms locate the wheel and suspension; worn bushings or ball joints can cause clunks, uneven tire wear, wandering, or vibration.

Assumption: This procedure is for the front suspension control arms, replacing arms as complete assemblies.

Difficulty Level: Advanced Beginner / Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Grand Cherokee with jack stands before working underneath. Never rely on a floor jack alone.
• ⚠️ Suspension parts can shift suddenly when loosened. Keep hands clear of pinch points.
• ⚠️ Do not loosen or tighten final control arm bushing bolts with the suspension hanging. Final tightening must be done at normal ride height to avoid twisting the bushings.
• ⚠️ If a ball joint separator is used, it may release suddenly with a loud pop. Wear safety glasses.
• ⚠️ An alignment is required after replacing control arms.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 3/8-inch drive ratchet
• 21mm socket
• 22mm socket
• 24mm socket
• 15mm socket
• 18mm socket
• 21mm wrench
• 22mm wrench
• 24mm wrench
• Trim clip removal tool
• Ball joint separator (specialty)
• Pry bar 18-inch
• Dead blow hammer
• Paint marker
• Penetrating oil
• Wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front upper control arm assembly - Left: 1, Right: 1
• Front lower control arm assembly - Left: 1, Right: 1
• Front control arm hardware kit - Qty: 1
• Ball joint nuts - Qty: 4
• Wheel alignment service - Qty: 1

---

📋 Before You Begin

• Park your Grand Cherokee on flat, solid ground.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Use penetrating oil on the control arm bolts and ball joint nuts before starting.
• Use a paint marker to mark the position of alignment cams if equipped. This helps you drive safely to the alignment shop, but it does not replace an alignment.
• A ball joint separator is a tool that presses the ball joint stud out of the steering knuckle without hammering directly on the joint.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel Lug Nuts

• Use a 22mm socket and 1/2-inch drive breaker bar to loosen the front lug nuts about one turn.
• Do not remove the lug nuts yet.
• Loosen wheels before lifting.

Step 2: Raise and Support the Front End

• Use a floor jack rated 3-ton minimum to lift the front of your Grand Cherokee at the front crossmember.
• Place jack stands rated 3-ton minimum under the approved front frame support points.
• Lower the vehicle gently onto the jack stands.
• Keep the floor jack nearby for supporting the suspension later.

Step 3: Remove the Front Wheels

• Use a 22mm socket to remove the loosened lug nuts.
• Remove both front wheels and set them aside.

Step 4: Support the Lower Control Arm

• Place the floor jack under the outer end of the lower control arm.
• Raise the jack just enough to lightly support the arm.
• This keeps the suspension from dropping suddenly when the ball joint is separated.

Step 5: Separate the Upper Ball Joint

• Use a 21mm socket and 21mm wrench to loosen the upper ball joint nut at the steering knuckle.
• Leave the nut threaded on a few turns while separating the joint.
• Use a ball joint separator (specialty) to separate the upper ball joint from the knuckle.
• Remove the nut fully with the 21mm socket.
• Move the upper control arm up and away from the steering knuckle.

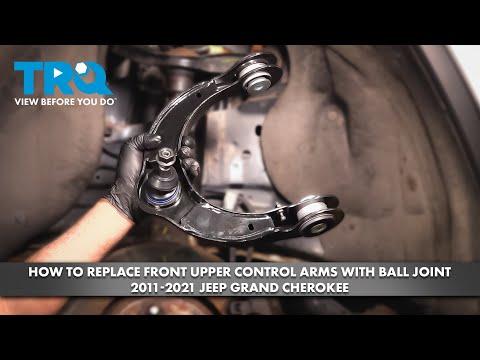

Step 6: Remove the Front Upper Control Arm

• Use a 15mm socket, 18mm socket, or matching wrench as needed to remove the two upper control arm mounting fasteners.
• Pull the upper control arm out of the mounting pockets.
• Compare the new arm to the old arm before installing it.
• Match left and right sides carefully.

Step 7: Install the New Upper Control Arm

• Position the new upper control arm into the frame mounts.
• Install the mounting bolts by hand first to avoid cross-threading.
• Use a 15mm socket, 18mm socket, or matching wrench to snug the bolts only.
• Do not final torque the bushing bolts yet.

Step 8: Connect the Upper Ball Joint

• Guide the upper ball joint stud into the steering knuckle.
• Install the new ball joint nut by hand.
• Use a 21mm socket and 1/2-inch drive torque wrench to tighten the upper ball joint nut to Torque to 70 Nm (52 ft-lbs).

Step 9: Separate the Lower Ball Joint

• Use a 24mm socket and 24mm wrench to loosen the lower ball joint nut.
• Leave the nut threaded on a few turns while separating the joint.
• Use a ball joint separator (specialty) to separate the lower ball joint from the steering knuckle.
• Remove the lower ball joint nut fully with the 24mm socket.

Step 10: Mark the Lower Control Arm Cam Positions

• If the lower control arm bolts have eccentric alignment cams, use a paint marker to mark their current position.
• An eccentric cam is an off-center washer used to adjust wheel alignment.
• This mark helps keep the wheels close enough for a short drive to the alignment shop.

Step 11: Remove the Lower Control Arm

• Use a 24mm socket, 24mm wrench, and 1/2-inch drive breaker bar to remove the lower control arm mounting bolts.
• Use a 21mm socket or 22mm socket where fitted on bracket or link fasteners.
• Use a pry bar 18-inch to carefully work the lower control arm out of the frame mounts.
• Remove the lower control arm from the vehicle.

Step 12: Install the New Lower Control Arm

• Position the new lower control arm into the frame mounts.
• Install the mounting bolts by hand.
• If alignment cams are used, align them with the paint marks made earlier.
• Use a 24mm socket and 24mm wrench to snug the bolts only.
• Do not final torque the lower control arm bushing bolts yet.

Step 13: Connect the Lower Ball Joint

• Guide the lower ball joint stud into the steering knuckle.
• Install the new lower ball joint nut by hand.
• Use a 24mm socket and 1/2-inch drive torque wrench to tighten the lower ball joint nut to Torque to 135 Nm (100 ft-lbs).

Step 14: Set the Suspension to Ride Height

• Use the floor jack under the lower control arm to raise the suspension until the hub sits close to normal ride height.
• Normal ride height means the suspension is loaded like the vehicle is sitting on the ground.
• This step protects the new rubber bushings from being twisted.

Step 15: Final Torque the Control Arm Mounting Bolts

• Use a 1/2-inch drive torque wrench with the correct 15mm socket, 18mm socket, 21mm socket, 22mm socket, or 24mm socket as fitted.
• Tighten the upper control arm frame bolts to Torque to 75 Nm (55 ft-lbs).
• Tighten the lower control arm frame bolts to Torque to 175 Nm (129 ft-lbs).
• If your replacement hardware includes torque-to-yield bolts, follow the hardware maker’s included torque-plus-angle instruction.

Step 16: Repeat on the Other Side

• Use the same tools and steps to replace the opposite-side upper and lower control arms.
• Replace control arms in pairs when possible to keep suspension feel even side to side.

Step 17: Reinstall the Front Wheels

• Install the wheels by hand.
• Use a 22mm socket to snug the lug nuts in a star pattern.
• Raise the vehicle slightly with the floor jack, remove the jack stands, and lower the vehicle to the ground.
• Use a 22mm socket and 1/2-inch drive torque wrench to tighten the lug nuts to Torque to 176 Nm (130 ft-lbs).

---

✅ After Repair

• ✅ Bounce the front of your Grand Cherokee a few times to settle the suspension.
• ✅ Check that all tools are removed from under the vehicle.
• ✅ Test drive slowly at first and listen for clunks, rubbing, or steering pull.
• ✅ Get a professional 4-wheel alignment as soon as possible after the repair.
• ✅ Recheck visible fasteners after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 parts + labor

DIY Cost: $450-$1,000 parts only

You Save: $750-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours plus alignment time.

---
