🔧 Grand Cherokee - Front Control Arm Replacement

This repair replaces the front upper and/or lower control arms on your Grand Cherokee. Control arms hold the wheel in the correct position, and worn bushings or ball joints can cause clunks, loose steering, uneven tire wear, or poor alignment.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

Assumption: This guide covers the front control arms; rear control arms use a different procedure.

---

⚠️ Safety & Precautions

• ⚠️ Always support your Grand Cherokee with jack stands before working underneath it.
• ⚠️ Do not rely on a floor jack alone. A floor jack lifts; jack stands hold the vehicle safely.
• ⚠️ Coil spring and suspension parts can move suddenly. Keep hands clear when separating ball joints.
• ⚠️ Final control arm bolt tightening must be done at normal ride height to prevent bushing damage.
• ⚠️ Battery disconnect is not required for this repair.
• ⚠️ An alignment is required after replacing control arms.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• 1/2-inch drive breaker bar
• 1/2-inch drive torque wrench
• 3/8-inch drive ratchet
• 21mm socket
• 22mm socket
• 24mm socket
• 18mm socket
• 15mm socket
• 21mm wrench
• 22mm wrench
• 24mm wrench
• 18mm wrench
• 15mm wrench
• Ball joint separator (specialty)
• Pickle fork (specialty)
• Hammer (2 lb)
• Pry bar 18-inch
• Needle-nose pliers
• Paint marker
• Penetrating oil

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front upper control arm assembly - Qty: 2 if replacing both sides
• Front lower control arm assembly - Qty: 2 if replacing both sides
• Control arm mounting bolts and nuts - Qty: As needed
• Ball joint cotter pins - Qty: 2-4
• Replacement alignment hardware - Qty: As needed

Tip: Replace control arms in left/right pairs when possible for even handling.

---

📋 Before You Begin

• Park your Grand Cherokee on level ground.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts slightly before lifting the vehicle.
• Spray penetrating oil on the control arm bolts and ball joint nuts.
• Use a paint marker to mark the position of alignment cams or washers before removing lower control arm bolts.
• Plan for a professional wheel alignment after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Wheel

• Use a 21mm socket and 1/2-inch drive breaker bar to loosen the front lug nuts about one turn.
• Do not remove the lug nuts yet.
• Loosen wheels before lifting.

Step 2: Raise and Support the Vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front of your Grand Cherokee at the front crossmember.
• Place jack stands (rated 3-ton minimum) under the front frame support points.
• Lower the vehicle gently onto the jack stands.
• Shake the vehicle lightly to confirm it is stable before working.

Step 3: Remove the Front Wheel

• Use a 21mm socket to remove the loosened lug nuts.
• Remove the wheel and place it flat under the side of the vehicle as a backup safety measure.

Step 4: Inspect the Control Arm Area

• Use a flashlight if available to look at the upper control arm, lower control arm, ball joints, bushings, and mounting bolts.
• A bushing is the rubber cushion where the arm bolts to the frame.
• A ball joint is the pivot joint that lets the steering knuckle move up, down, and side to side.

Step 5: Remove the Upper Control Arm Ball Joint Nut

• Use needle-nose pliers to remove the cotter pin from the upper ball joint stud.
• Use an 18mm socket or 18mm wrench to loosen and remove the upper ball joint nut.
• If the stud spins, apply upward pressure with a pry bar 18-inch while turning the nut.

Step 6: Separate the Upper Ball Joint

• Use a ball joint separator (specialty) to separate the upper ball joint from the steering knuckle.
• A ball joint separator presses the tapered joint loose without hammering directly on the threads.
• If needed, use a hammer (2 lb) to tap the side of the knuckle near the joint, not the threaded stud.
• Do not damage the threads.

Step 7: Remove the Upper Control Arm Mounting Bolts

• Use a 15mm socket and 15mm wrench to remove the two upper control arm mounting bolts.
• Remove the upper control arm from the vehicle.
• Compare the new arm to the old one before installation.

Step 8: Install the New Upper Control Arm

• Position the new front upper control arm assembly in the mounting brackets.
• Use a 15mm socket and 15mm wrench to install the mounting bolts finger-tight only.
• Do not fully tighten the bushing bolts while the suspension is hanging.

Step 9: Connect the Upper Ball Joint

• Guide the upper ball joint stud into the steering knuckle by hand.
• Use an 18mm socket to install the ball joint nut.
• Torque to 54 Nm (40 ft-lbs), then tighten further only as needed to align the cotter pin hole.
• Use needle-nose pliers to install a new cotter pin.

Step 10: Mark the Lower Control Arm Alignment Hardware

• Use a paint marker to mark the position of the lower control arm cam bolts and washers.
• Cam bolts are offset alignment bolts that adjust wheel angle.
• This helps the vehicle drive safely to the alignment shop after repair.

Step 11: Support the Lower Control Arm

• Use the floor jack (rated 3-ton minimum) under the lower control arm to support it lightly.
• Do not lift the vehicle off the jack stands.
• This relieves tension from the lower ball joint and mounting bolts.

Step 12: Remove the Lower Ball Joint Nut

• Use needle-nose pliers to remove the cotter pin from the lower ball joint stud.
• Use a 24mm socket or 24mm wrench to loosen and remove the lower ball joint nut.

Step 13: Separate the Lower Ball Joint

• Use a ball joint separator (specialty) to separate the lower ball joint from the steering knuckle.
• If using a pickle fork (specialty), expect it to damage the old ball joint boot.
• A pickle fork is a wedge-shaped tool used to force tapered suspension joints apart.
• Use a hammer (2 lb) only on the separator tool or the side of the knuckle.

Step 14: Remove the Lower Control Arm Mounting Bolts

• Use a 21mm socket and 21mm wrench or 22mm socket and 22mm wrench to remove the lower control arm mounting bolts.
• Keep track of cam bolt washer direction and position.
• Remove the lower control arm from the vehicle.

Step 15: Install the New Lower Control Arm

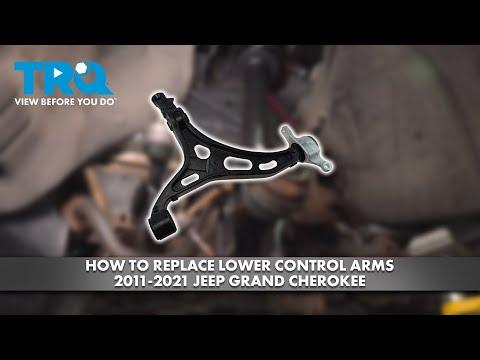

• Position the new front lower control arm assembly into the frame brackets.
• Use a 21mm socket and 21mm wrench or 22mm socket and 22mm wrench to install the mounting bolts finger-tight.
• Align the cam washers with the paint marks you made earlier.

Step 16: Connect the Lower Ball Joint

• Raise the lower control arm slightly with the floor jack (rated 3-ton minimum) until the ball joint stud enters the steering knuckle.
• Use a 24mm socket to install the lower ball joint nut.
• Torque to 108 Nm (80 ft-lbs), then tighten further only as needed to align the cotter pin hole.
• Use needle-nose pliers to install a new cotter pin.

Step 17: Load the Suspension Before Final Tightening

• Use the floor jack (rated 3-ton minimum) under the lower control arm to raise the suspension to normal ride height.
• Normal ride height means the control arm sits close to the same angle it has when the vehicle is on the ground.
• This prevents twisting and tearing the new rubber bushings.

Step 18: Final-Tighten the Control Arm Bolts

• Use a 1/2-inch drive torque wrench with the correct socket/wrench combination.
• Upper control arm mounting bolts: Torque to 75 Nm (55 ft-lbs).
• Lower control arm front mounting bolt: Torque to 190 Nm (140 ft-lbs).
• Lower control arm rear mounting bolt: Torque to 190 Nm (140 ft-lbs).
• Tighten bushings at ride height.

Step 19: Reinstall the Wheel

• Install the wheel by hand and start all lug nuts by hand.
• Use a 21mm socket to snug the lug nuts in a star pattern.
• Raise the vehicle slightly with the floor jack (rated 3-ton minimum), remove the jack stands, and lower the vehicle fully.
• Use a 1/2-inch drive torque wrench and 21mm socket to tighten the lug nuts.
• Torque to 176 Nm (130 ft-lbs).

Step 20: Repeat on the Other Side if Needed

• Repeat the same steps on the opposite front side if replacing control arms in pairs.
• Use the same tools and torque values.

---

✅ After Repair

• ✅ Turn the steering wheel lock-to-lock while parked and listen for binding or popping.
• ✅ Road test slowly first. Listen for clunks and check that the steering wheel feels centered.
• ✅ Recheck the lug nut torque after the first short drive: Torque to 176 Nm (130 ft-lbs).
• ✅ Get a professional four-wheel alignment as soon as possible.
• ✅ Avoid highway speeds if the steering wheel is off-center or the vehicle pulls strongly.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $300-$900 (parts only)

You Save: $600-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
