🔧 Cherokee - Front Brake Pads & Rotor Replacement

You’ll be removing the front wheels, unbolting the brake caliper and bracket, swapping the rotor, then installing new pads and reassembling everything with correct torque. This restores braking power, reduces vibration/pulsation, and prevents uneven pad wear.

Difficulty Level: Intermediate | Estimated Time: 2.0–3.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Cherokee on jack stands before working under/around wheels.
• ⚠️ Brake dust is hazardous—wear a mask and avoid blowing dust with air.
• ⚠️ Do not let the caliper hang by the brake hose—support it with a hanger.
• ⚠️ Keep brake fluid off paint; it damages paint fast.
• ⚠️ No battery disconnect is required for front brakes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar (1/2")
• Torque wrench (1/2", 20–200 ft-lbs range)
• 21mm socket
• 13mm socket
• 18mm socket
• Ratchet (3/8")
• Wire brush
• Bungee cord
• Large C-clamp
• Flathead screwdriver
• Torx T30 bit
• Dead-blow hammer
• Brake parts cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake hardware kit (clips/shims) - Qty: 1
• Brake grease (silicone or ceramic) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts 1/2 turn before lifting (do not remove yet).
• Open the hood and locate the brake fluid reservoir; keep the cap sitting loosely on top. Watch fluid level when compressing pistons.
• Plan to do one side at a time so you can use the other side as a reference.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use the floor jack (rated 3-ton minimum) to lift at the proper front jack point.
• Set the Cherokee onto jack stands (rated 3-ton minimum) and give the vehicle a firm shake to confirm it’s stable.
• Remove the front wheels using a 21mm socket and breaker bar (1/2").

Step 2: Remove the caliper (the part that squeezes the pads)

• Turn the steering wheel to give yourself room to work on the caliper.
• Use a flathead screwdriver to gently pry the caliper outward a little (this creates space to slide it off).
• Remove the caliper slide pin bolts using a 13mm socket.
• Lift the caliper off and hang it from the strut spring using a bungee cord.
• Torque spec (reinstall later): Torque to 35 Nm (26 ft-lbs)
• “Slide pins” are the two bolts the caliper moves on.

Step 3: Remove the old pads and caliper bracket

• Pull the brake pads out of the bracket by hand.
• Remove the caliper bracket bolts using an 18mm socket and breaker bar (1/2").
• Set the bracket aside.
• Torque spec (reinstall later): Torque to 169 Nm (125 ft-lbs)

Step 4: Remove the rotor

• If equipped, remove the rotor retaining screw using a Torx T30 bit.
• Pull the rotor off the hub. If it’s stuck, tap the rotor hat (center area) with a dead-blow hammer until it loosens.

Step 5: Clean the hub surface

• Use a wire brush to clean rust off the hub face (where the rotor sits).
• Spray the area with Brake parts cleaner spray and let it dry.
• A clean hub helps prevent brake pulsation.

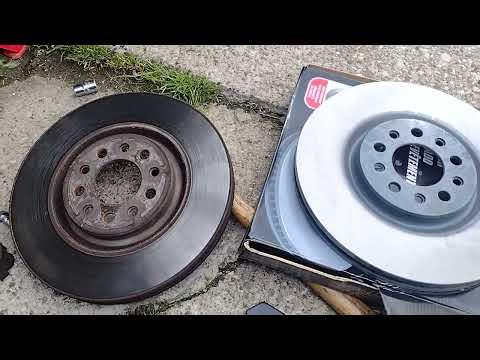

Step 6: Install the new rotor

• Clean both sides of the new rotor using Brake parts cleaner spray (new rotors often have anti-rust oil on them).
• Slide the rotor onto the hub.
• If equipped, reinstall the retaining screw using a Torx T30 bit and ratchet (3/8").
• Torque spec (if equipped): Torque to 9 Nm (80 in-lbs)

Step 7: Prepare the bracket and install new pad hardware

• Snap the new hardware clips into the caliper bracket by hand (they should sit flat).
• Clean the bracket “pad lands” (where pads slide) using a wire brush.
• Apply a thin film of brake grease (silicone or ceramic) to the pad lands and the clip contact points (do not get grease on rotor or pad friction).
• “Hardware” is the metal clips the pads slide on.

Step 8: Reinstall the caliper bracket

• Position the bracket over the rotor.
• Install the bracket bolts by hand first, then tighten using an 18mm socket.
• Torque spec: Torque to 169 Nm (125 ft-lbs)

Step 9: Compress the caliper piston

• Before compressing, check the brake fluid reservoir level under the hood; if it’s near “MAX,” remove a small amount (so it doesn’t overflow).
• Place an old pad against the piston face, then use a large C-clamp to slowly press the piston fully back in.
• Go slowly and evenly; stop if you feel abnormal resistance.
• The “piston” is the round part that pushes the pad.

Step 10: Install the new pads and reinstall the caliper

• Install the new pads into the bracket by hand (they should move freely).
• Slide the caliper over the pads and align the slide pin holes.
• Install the slide pin bolts using a 13mm socket.
• Torque spec: Torque to 35 Nm (26 ft-lbs)

Step 11: Reinstall wheels and lower the vehicle

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the vehicle using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (1/2", 20–200 ft-lbs range) and 21mm socket.
• Torque spec: Torque to 135 Nm (100 ft-lbs)

Step 12: Pump the brake pedal (critical)

• With the engine OFF, press the brake pedal slowly 10–15 times until it feels firm.
• Check the brake fluid level and top off with Brake fluid (DOT 3) if needed.
• If you skip this, the first stop can be scary.

---

✅ After Repair

• Start the engine and confirm the brake pedal stays firm and doesn’t sink.
• Check for leaks around the calipers and confirm no hoses are twisted.
• Do a slow test drive in a safe area; confirm no pulling, grinding, or warning lights.
• Bed-in (break-in) the pads: make 8–10 medium stops from ~40 km/h to ~10 km/h, with 30–60 seconds between stops to cool.
• Re-check lug nut torque with a torque wrench after ~80–160 km.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000–₹25,000 (parts + labor)

DIY Cost: ₹6,000–₹16,000 (parts only)

You Save: ₹6,000–₹9,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,500–₹3,000/hour. This repair takes a shop approximately 1.5–2.5 hours.

---
