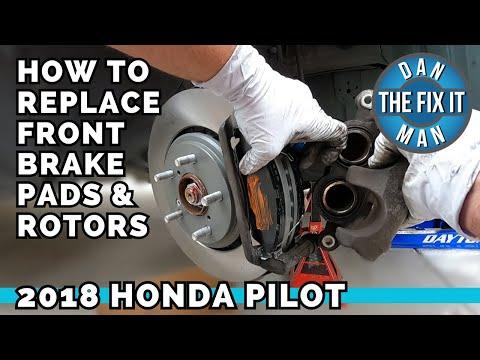

🔧 Pilot - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, swap the brake pads and rotors, then reassemble everything with the correct torque so the brakes work safely and quietly. The key is supporting the caliper correctly, cleaning the hub, and tightening bolts to spec.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Factory front single-piston calipers and OEM-style rotors.

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and use jack stands; never rely on a jack alone.
• ⚠️ Brakes may be hot; let them cool before touching rotors/calipers.
• ⚠️ Do not let the caliper hang by the brake hose; support it with a hanger.
• ⚠️ Brake dust and cleaner are irritating; wear gloves and safety glasses.
• ⚠️ Keep brake fluid off paint; it can damage the finish.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 17mm socket
• 12mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-150 ft-lbs range)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-60 ft-lbs range)
• Phillips #3 bit screwdriver
• Manual impact driver (specialty)
• Large C-clamp (6" minimum)
• Brake caliper hanger hook (specialty)
• Flat blade screwdriver
• Wire brush
• Rubber mallet
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front brake hardware/abutment clip kit - Qty: 1
• Brake caliper slide pin grease (silicone brake grease) - Qty: 1
• Brake cleaner - Qty: 2 cans
• DOT 3 brake fluid - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Crack the front lug nuts loose 1/4 turn using a 19mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir. If it’s very full, remove a small amount with a clean towel (so it doesn’t overflow when you compress the piston).
• Take a photo before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front end

• Use a floor jack (rated 3-ton minimum) to lift at the front center jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum) at the front side support points.
• Remove the front wheels using a 19mm socket.

Step 2: Remove the caliper (the clamp that squeezes the pads)

• Turn the steering wheel to give yourself room to work on the side you’re doing.
• Remove the two caliper slide pin bolts using a 12mm socket and 3/8" drive ratchet.
• Lift the caliper off the bracket and support it with a brake caliper hanger hook (specialty).
• Do not stretch or twist the rubber brake hose.
• Torque spec on install: Torque to 34 Nm (25 ft-lbs)

Step 3: Remove the old pads and hardware

• Slide the pads out of the bracket by hand. If stuck, gently pry with a flat blade screwdriver.
• Remove the stainless hardware clips from the bracket.
• Clean the pad “rails” on the bracket using brake cleaner spray and a wire brush.
• Clean metal helps pads slide quietly.

Step 4: Remove the caliper bracket

• Remove the two bracket bolts using a 17mm socket and 1/2" drive breaker bar.
• Lift the bracket off and set it aside.
• Torque spec on install: Torque to 108 Nm (80 ft-lbs)

Step 5: Remove the rotor

• If your rotors have retaining screws, remove them using a manual impact driver (specialty) with a Phillips #3 bit screwdriver tip.
• Pull the rotor off the hub. If it’s stuck, tap the rotor hat with a rubber mallet to break it free.
• Clean the hub face (where the rotor sits) with brake cleaner spray and a wire brush until smooth.
• A clean hub prevents pedal pulsation.

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake cleaner spray and wipe with shop towels (removes shipping oil).
• Place the new rotor onto the hub.
• If you re-use retaining screws, snug them using a Phillips #3 bit screwdriver (do not over-tighten).

Step 7: Reinstall the bracket and prep the slide pins

• Reinstall the bracket using a 17mm socket.
• Torque to 108 Nm (80 ft-lbs) using a 1/2" drive torque wrench.
• Pull the slide pins out one at a time, wipe clean with shop towels, and apply a thin coat of brake caliper slide pin grease.
• Only use grease made for brakes.

Step 8: Install new hardware clips and pads

• Install the new hardware clips into the bracket by hand (they snap in).
• Apply a very light film of brake caliper slide pin grease where the pad ears touch the clips.
• Slide the new pads into place.

Step 9: Compress the caliper piston

• Place an old pad against the caliper piston face.
• Use a large C-clamp (6" minimum) to slowly press the piston fully back into the caliper.
• Check the brake fluid reservoir while compressing; remove excess if it starts to overflow.
• Go slow to protect seals.

Step 10: Reinstall the caliper

• Set the caliper over the new pads.
• Install the slide pin bolts using a 12mm socket.
• Torque to 34 Nm (25 ft-lbs) using a 3/8" drive torque wrench.

Step 11: Reinstall wheels and torque lug nuts

• Reinstall the wheels using a 19mm socket.
• Lower the vehicle from the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a 1/2" drive torque wrench.
• Torque to 127 Nm (94 ft-lbs)

Step 12: Repeat on the other front wheel

• Repeat Steps 1–11 on the other side so braking stays even.

---

✅ After Repair

• Pump the brake pedal 10-15 times until it feels firm before driving (this seats the pads against the rotors).
• Check brake fluid level and top off with DOT 3 brake fluid if needed.
• With the engine running, press the brake pedal again; confirm a firm pedal.
• Do a slow test drive in a safe area and confirm no grinding, pulling, or warning lights.
• Bed-in the pads (basic method): make 8-10 moderate stops from ~40 to 10 mph, letting brakes cool a bit between stops; avoid sitting stopped with hard pedal pressure right after.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
