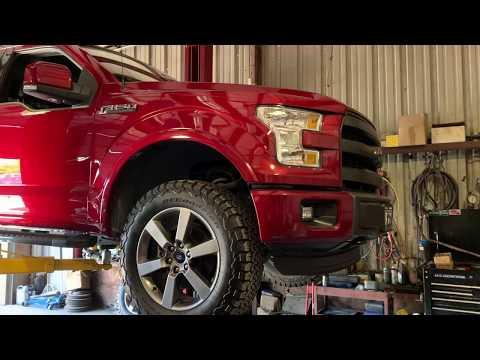

🔧 F-150 - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, take off the brake calipers, replace the pads and rotors, then reassemble and torque everything correctly. This restores safe stopping power and prevents grinding, vibration, and uneven braking.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Your A4

---

⚠️ Safety & Precautions

• ⚠️ Support the truck with jack stands; never rely on a jack.
• ⚠️ Brake dust is harmful—wear a mask and use brake cleaner, not compressed air.
• ⚠️ Don’t let the caliper hang by the rubber brake hose; support it with a hanger.
• ⚠️ If brake fluid is near “MAX,” remove a little before compressing pistons (fluid can overflow).
• ⚠️ Keep grease and oil off pad friction material and rotor faces.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar 1/2"
• Torque wrench 1/2" (50-250 ft-lbs range)
• Socket set 1/2" drive (13mm, 15mm, 18mm, 21mm)
• Ratchet 1/2"
• C-clamp 6"
• Caliper piston compression tool (specialty)
• Flathead screwdriver
• Wire brush
• Brake parts cleaner spray
• Bungee cord
• Rubber mallet
• Turkey baster

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Brake hardware kit (clips/abutments) - Qty: 1
• Brake caliper slide pin boots (if damaged) - Qty: 1
• High-temp silicone brake grease - Qty: 1
• Brake cleaner - Qty: 2 cans
• DOT 4 brake fluid - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Loosen the front lug nuts slightly before lifting (don’t remove them yet).
• Open the hood and locate the brake fluid reservoir so you can watch the fluid level while compressing pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Use wheel chocks to secure the rear wheels.
• Use a 21mm socket and breaker bar to loosen lug nuts 1/2 turn.
• Lift the front with a floor jack (rated 3-ton minimum) and support the frame with jack stands (rated 3-ton minimum).
• Remove the lug nuts with a 21mm socket and take off both front wheels.

Step 2: Remove the caliper (the squeeze part)

• Turn the steering wheel to give yourself room at the brake you’re working on.
• Use a flathead screwdriver to gently pry the caliper outward a tiny bit (this makes removal easier).
• Use a 13mm socket and ratchet to remove the two caliper slide pin bolts.
• Lift the caliper off and hang it from the suspension with a bungee cord. Never hang by the hose.

Step 3: Remove the old pads and hardware

• Pull the brake pads out of the bracket by hand.
• Remove the pad abutment clips (hardware) from the bracket.
• Use brake parts cleaner spray and a wire brush to clean the bracket pad “rails” where the clips sit.

Step 4: Remove the caliper bracket (the pad holder)

• Use an 18mm socket, breaker bar, and ratchet to remove the two caliper bracket bolts on the back side.
• Set the bracket aside.
• On reassembly: Torque to 250 Nm (184 ft-lbs).

Step 5: Remove the old rotor

• Slide the rotor off the hub.
• If it’s stuck from rust, spray the hub area with brake parts cleaner spray, then tap the rotor hat with a rubber mallet to break it loose.
• Use a wire brush to clean the hub face (flat mounting surface). A clean hub prevents vibration.

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake parts cleaner spray to remove packing oil.
• Place the rotor onto the hub.
• Optional “hold-in-place” trick: thread on 1-2 lug nuts by hand to keep the rotor flush while you work (use your 21mm socket only for snug, not tight).

Step 7: Service slide pins and install new hardware

• Pull the slide pins out of the bracket by hand.
• Wipe pins clean and apply a thin coat of high-temp silicone brake grease.
• Caliper slide pins are the small rods that let the caliper move smoothly.
• Install the new pad abutment clips from the brake hardware kit onto the bracket.

Step 8: Reinstall the bracket

• Position the bracket over the rotor.
• Install the two bracket bolts by hand first (to avoid cross-threading).
• Use an 18mm socket and torque wrench 1/2" to tighten: Torque to 250 Nm (184 ft-lbs).

Step 9: Install the new pads

• Install the new pads into the bracket.
• Apply a very thin layer of high-temp silicone brake grease to pad ears/backing contact points only (not on the pad surface).

Step 10: Compress the caliper piston

• Check the brake fluid reservoir level under the hood.
• If it’s very full, use a turkey baster to remove a small amount so it won’t overflow.
• Use a caliper piston compression tool (specialty) or C-clamp 6" to slowly push the piston back in.
• Caliper piston is the round part that pushes the pads.

Step 11: Reinstall the caliper

• Place the caliper over the new pads.
• Install the slide pin bolts by hand, then tighten with a 13mm socket.
• Final tighten with a torque wrench 1/2": Torque to 34 Nm (25 ft-lbs).

Step 12: Reinstall wheels and torque lug nuts

• Reinstall both wheels and thread lug nuts by hand.
• Lower the truck off the jack stands using the floor jack (rated 3-ton minimum).
• Use a torque wrench 1/2" and 21mm socket to tighten lug nuts in a star pattern: Torque to 203 Nm (150 ft-lbs).

---

✅ After Repair

• With the engine off, press the brake pedal 10-15 times until it feels firm. This seats the pads.
• Check the brake fluid level and top off with DOT 4 brake fluid if needed.
• Road test at low speed first. Confirm no pulling, grinding, or warning lights.
• Pad bedding (recommended): make 6-8 medium stops from 40 mph to 10 mph, letting brakes cool 30-60 seconds between stops.
• Re-check lug nut torque after 25-50 miles using a torque wrench 1/2".

---
