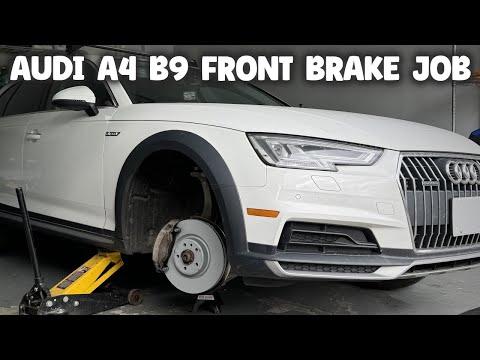

🔧 A4 - Front Brake Pads & Rotor Replacement

This job replaces your A4’s front brake pads and rotors so it can stop smoothly and safely. Worn pads can damage rotors, and warped rotors can cause steering wheel shake when braking.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands; never rely on a jack alone.
• ⚠️ Brakes may contain dust—use brake cleaner, not compressed air.
• ⚠️ Don’t let the caliper hang by the brake hose; always support it.
• ⚠️ Brake fluid can damage paint—wipe spills immediately.
• ⚠️ If your brake fluid reservoir overflows when compressing the piston, remove some fluid with a suction tool.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm lug bolt socket
• Torque wrench (20–250 Nm range)
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Breaker bar (1/2" drive)
• 13mm socket
• 15mm wrench
• 21mm socket
• M14 XZN triple-square bit
• Torx T30 bit
• Flat trim tool
• Brake caliper piston compression tool (specialty)
• Bungee cord or caliper hook
• Wire brush
• Plastic or rubber mallet
• Brake cleaner
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake pad wear sensor - Qty: 1
• Front caliper carrier bolts - Replace in pairs - Qty: 2
• Front rotor set screw - Qty: 2
• Brake caliper grease - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• 🧰 Crack the front wheel bolts loose using a 17mm lug bolt socket before lifting the car.
• 🧰 Open the hood and remove the brake fluid reservoir cap (leave it sitting loosely). This helps fluid move back when compressing caliper pistons.
• 🧰 Turn the steering wheel to give yourself more room (turn left to work on the right side, and vice-versa).
• 🧰 Assumption: Your A4 uses a standard front floating caliper (no EPB on the front). Hardware head style can vary; tool options are included below.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of the car

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper front jack point.
• Place jack stands (rated 3-ton minimum) under the pinch weld/support points and lower onto the stands.
• Remove the wheel bolts using a 17mm lug bolt socket and take the front wheels off.

Step 2: Remove the pad wear sensor (left front)

• On the left front, locate the wear sensor wire near the caliper.
• Use a flat trim tool to gently unclip the wire from its retainers.
• Disconnect the sensor connector carefully (don’t pull on the wire).

Step 3: Remove the caliper

• Find the two caliper guide pin bolts on the back side of the caliper.
• Use a 13mm socket to remove the guide pin bolts while holding the pin with a 15mm wrench if it wants to spin.
• Lift the caliper off the bracket and support it using a bungee cord or caliper hook.

Step 4: Remove the old pads and inspect

• Pull the brake pads out of the caliper bracket by hand.
• Check the rubber guide pin boots for tears and check for uneven pad wear (inner vs outer).
• Clean pad contact areas on the bracket using brake cleaner and a wire brush.

Step 5: Remove the caliper carrier bracket

• Locate the two large caliper carrier bolts that hold the bracket to the steering knuckle.
• Tool choice depends on bolt head style:
• Use a 21mm socket and breaker bar (1/2" drive) if the bolts have hex heads.
• Use an M14 XZN triple-square bit and breaker bar (1/2" drive) if they have a triple-square head. (A “triple-square” is a 12-point, star-like internal drive common on Audi.)
• Remove the bracket and set it aside.

Step 6: Remove the rotor

• Remove the small rotor retaining screw using a Torx T30 bit.
• Pull the rotor off the hub. If it’s stuck from rust, tap around the rotor hat using a plastic or rubber mallet until it loosens.
• Clean the hub face with a wire brush and spray with brake cleaner. Clean hub = no pedal pulsation.

Step 7: Install the new rotor

• Clean both sides of the new rotor with brake cleaner and shop towels to remove protective oil.
• Place the rotor on the hub and install the new set screw using a Torx T30 bit.
• Torque to 4 Nm (3 ft-lbs).

Step 8: Reinstall the caliper carrier bracket

• Reinstall the bracket and start the two carrier bolts by hand to avoid cross-threading.
• Tighten using a 21mm socket or M14 XZN triple-square bit (whichever matches your bolt head).
• Torque to 200 Nm (148 ft-lbs).

Step 9: Compress the caliper piston

• Install the old inner pad against the piston (to protect it), then use a brake caliper piston compression tool (specialty) to slowly press the piston fully back into the caliper.
• Watch the brake fluid reservoir while you compress; remove fluid if it starts to overflow.

Step 10: Install new pads

• Apply a thin film of brake caliper grease to the pad “ears” where they slide on the bracket.
• Do not get grease on the pad friction material or rotor.
• Install the new pads into the bracket.

Step 11: Reinstall the caliper

• Place the caliper over the new pads and align the guide pin holes.
• Install the guide pin bolts using a 13mm socket (use a 15mm wrench to counter-hold if needed).
• Torque to 30 Nm (22 ft-lbs).

Step 12: Reconnect the wear sensor and secure wiring

• Connect the new wear sensor and route the wire exactly like the original.
• Use a flat trim tool to clip it back into the retainers so it can’t rub the wheel.

Step 13: Reinstall wheels

• Put the wheels back on and hand-thread the wheel bolts.
• Lower the car off the stands using the floor jack (rated 3-ton minimum).
• Tighten wheel bolts in a star pattern using a torque wrench.
• Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• ✅ Before starting the engine, slowly pump the brake pedal 10–15 times until it feels firm. This seats the pads against the rotors.
• ✅ Check brake fluid level and reinstall the reservoir cap.
• ✅ Start the engine and confirm the pedal stays firm (it will drop slightly with power assist).
• ✅ Do a careful test drive: low speed first, then moderate braking. Listen for grinding or scraping.
• ✅ Pad bedding (recommended): make 6–10 medium stops from ~40 mph to ~10 mph, letting brakes cool slightly between stops; avoid sitting stopped with hot brakes.

---
