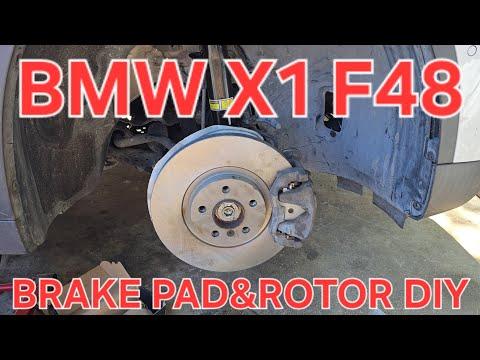

🔧 X1 - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the brake caliper (the clamp that squeezes the pads), replace the pads and rotor (the metal disc), then reassemble with the correct torque. This restores safe stopping power and prevents vibration/pulsation caused by worn or warped rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: your X1 has standard front floating calipers with a front pad wear sensor.

---

⚠️ Safety & Precautions

• 🧯 Work on level ground and support the X1 with jack stands; never rely on a jack alone.
• 🔥 Brakes get extremely hot—let everything cool fully before touching.
• 🧤 Wear safety glasses and mechanic gloves; brake dust and cleaner are irritants.
• 🧴 Don’t press the brake pedal with the caliper removed, or the piston can pop out and leak.
• 🧪 Brake fluid damages paint—wipe spills immediately.
• 🔋 Battery disconnect is not required for front brakes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• Breaker bar (1/2")
• Torque wrench (20–200 Nm range)
• 7mm hex bit socket
• 18mm socket
• Torx T30 bit
• Ratchet (3/8")
• Flathead screwdriver
• C-clamp or brake caliper piston tool
• Caliper hanger hook or bungee cord
• Wire brush
• Rubber mallet
• Brake cleaner spray
• Catch pan
• Shop towels
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake pad wear sensor - Qty: 1
• Brake caliper carrier bolts - Recommended replace - Qty: 2
• Brake caliper slide pin boots/hardware kit - If worn or torn - Qty: 1
• Brake lubricant (silicone-based) - Qty: 1
• Anti-seize compound - Very light use - Qty: 1
• Brake fluid (DOT 4) - Top-off only if needed - Qty: 1 quart

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to P, and set the parking brake.
• 🧱 Place wheel chocks behind the rear tires.
• 🧴 Open the hood and locate the brake fluid reservoir. If it’s near MAX, remove a small amount with a towel/syringe before compressing pistons (fluid rises when pistons go back).
• 🛞 Crack the front wheel bolts loose 1/4 turn with a 17mm socket and breaker bar before lifting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front and remove the wheels

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the wheel bolts using a 17mm socket and ratchet (3/8").
• Set wheels aside under the vehicle as an extra safety backup.

Step 2: Remove the caliper and pads

• Turn the steering wheel to give more access to the caliper.
• Pop off the caliper spring clip (if equipped) using a flathead screwdriver. Cover it with your hand—spring tension.
• Unplug the front pad wear sensor from the pad (usually on the left front) and unclip the wire from its retainers using a flathead screwdriver.
• Remove the caliper guide/slide bolts using a 7mm hex bit socket and ratchet (3/8").
• Lift the caliper off and hang it with a caliper hanger hook or bungee cord (do not let it hang by the brake hose).
• Pull the old pads out of the caliper bracket by hand.

Step 3: Remove the caliper carrier (bracket)

• The caliper carrier is the fixed bracket the pads slide in.
• Remove the carrier bolts using an 18mm socket and breaker bar (1/2").
• Set the carrier aside.
• On reinstall: Torque to 110 Nm (81 ft-lbs).

Step 4: Remove the rotor

• Remove the rotor retaining screw using a Torx T30 bit and ratchet (3/8").
• If the rotor is stuck, tap around the hat (center area) with a rubber mallet until it breaks free.
• Pull the rotor off the hub.

Step 5: Clean and prep the hub surface

• Use a wire brush to clean rust from the hub face (where the rotor sits).
• Spray the area with brake cleaner spray and wipe with shop towels.
• Apply a paper-thin smear of anti-seize compound to the hub face only (keep it off rotor/pad surfaces). Too much can cause rotor wobble.

Step 6: Install the new rotor

• Clean the new rotor surfaces with brake cleaner spray (removes shipping oil).
• Install the rotor onto the hub and install the retaining screw using a Torx T30 bit.
• Torque to 16 Nm (12 ft-lbs).

Step 7: Service the carrier and install it

• Clean the pad sliding surfaces on the carrier using a wire brush.
• If you have new pad hardware/clips, install them now by hand.
• Reinstall the carrier bolts using an 18mm socket and torque wrench (20–200 Nm range).
• Torque to 110 Nm (81 ft-lbs).

Step 8: Compress the caliper piston

• The piston is the round part that pushes the inner pad. It must be pushed back to fit new thick pads.
• Place an old pad against the piston face, then compress with a C-clamp or brake caliper piston tool slowly and evenly.
• Watch the brake fluid reservoir while compressing; catch overflow with a catch pan and shop towels.

Step 9: Install new pads and wear sensor

• Apply a thin layer of brake lubricant (silicone-based) to pad ears/backing where they contact the carrier/caliper (do not get any on pad friction material).
• Install the new pads into the carrier by hand.
• Install the new wear sensor into the correct pad (typically the inner pad on the left front), then route and clip the wire exactly like the old one.

Step 10: Reinstall the caliper

• Slide the caliper back over the new pads/rotor.
• Install the guide/slide bolts using a 7mm hex bit socket and torque wrench (20–200 Nm range).
• Torque to 30 Nm (22 ft-lbs).
• Reinstall the spring clip (if equipped) using a flathead screwdriver.
• Double-check the wear sensor connector is fully seated and clipped.

Step 11: Reinstall wheels

• Install wheels and hand-thread the bolts.
• Lower the X1 off the stands using the floor jack (rated 3-ton minimum).
• Tighten wheel bolts in a star pattern using a torque wrench (20–200 Nm range).
• Torque to 140 Nm (103 ft-lbs).

---

✅ After Repair

• 🦶 With the engine off, pump the brake pedal 8–12 times until it feels firm (this seats the pads against the rotors).
• 🧴 Check brake fluid level and top off with DOT 4 only if needed.
• 🔍 Look for leaks and make sure the wear sensor wire is not rubbing the wheel/tire.
• 🚗 Bed-in (break-in) the pads: do 8–10 medium stops from ~40 mph down to ~10 mph, leaving space between stops to cool slightly. Avoid hard panic stops for the first 200 miles.
• 🛑 If a brake warning light stays on, the wear sensor may not be connected or the reset may be needed (typically clears after correct installation and a short drive).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$480 (parts only)

You Save: $430-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
