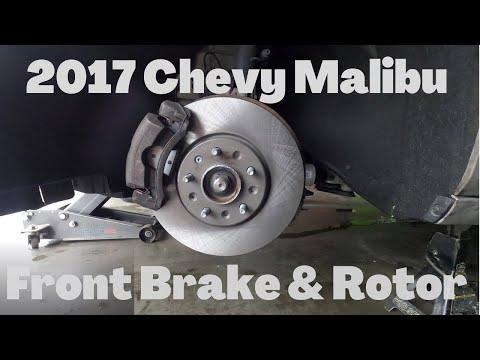

🔧 Malibu - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the brake caliper and bracket, replace the rotor, then install new pads and reassemble everything with proper torque. This restores braking performance and helps prevent vibration or grinding caused by worn pads/warped rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Never work under a car supported only by a jack—use jack stands on solid ground.
• Brake dust and cleaner are irritating—wear safety glasses and nitrile gloves.
• Don’t let the caliper hang by the hose—support it with a caliper hanger hook (a hook that holds the caliper).
• Keep grease and oil off pad/rotor friction surfaces—clean with brake cleaner if contaminated.
• Battery disconnect is not required for front brakes on your Malibu.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket (22mm)
• Breaker bar (1/2" drive)
• Torque wrench (1/2" drive, 20-200 ft-lbs range)
• Ratchet (3/8" drive)
• Socket set (10mm-21mm)
• Hex bit socket set (metric)
• C-clamp (6") or disc brake piston compressor (specialty)
• Caliper hanger hook (specialty)
• Flat blade screwdriver
• Wire brush
• Rubber mallet
• Brake parts cleaner
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake hardware/abutment clip kit - Qty: 1
• Brake caliper slide pin grease (silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park your Malibu on level ground, shift to P, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Crack the front lug nuts loose 1/4 turn using a 22mm lug socket and breaker bar before lifting.
• Open the hood and check the brake fluid reservoir level—when you compress the pistons, the level may rise. Remove a little fluid if it’s near MAX.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front and remove the wheels

• Lift the front using a floor jack at the proper front jacking point, then support with jack stands.
• Remove lug nuts using a 22mm lug socket and remove both front wheels.

Step 2: Locate the caliper, slide pins, and bracket

• The caliper is the clamp that squeezes the pads; the slide pins are the smaller bolts that let it move; the bracket is the larger mount holding the pads.
• Turn the steering wheel for access (left side: wheel turned right; right side: wheel turned left).

Step 3: Remove the caliper (do not disconnect the hose)

• Remove the caliper slide pin bolts using a ratchet and the correct metric hex bit socket.
• Lift the caliper off the bracket and hang it from the strut spring using a caliper hanger hook.
• Torque spec (reinstall): Torque to 38 Nm (28 ft-lbs)

Step 4: Remove the old pads and hardware

• Remove the inner and outer pads by hand. Use a flat blade screwdriver gently if they’re stuck.
• Remove the pad abutment clips (hardware) from the bracket.

Step 5: Remove the caliper bracket

• Remove the two large bracket-to-knuckle bolts using a breaker bar and the correct socket.
• Set the bracket on a clean surface.
• Torque spec (reinstall): Torque to 200 Nm (148 ft-lbs)

Step 6: Remove the rotor

• Pull the rotor straight off the hub. If it’s stuck, tap the rotor hat with a rubber mallet until it breaks free.
• Clean the hub face with a wire brush and wipe with shop towels. A clean hub helps prevent brake vibration.

Step 7: Install the new rotor

• Spray both sides of the new rotor with brake parts cleaner and wipe with shop towels.
• Install the rotor onto the hub. Hold it in place with one lug nut threaded on by hand (use your 22mm lug socket to snug lightly).

Step 8: Service the bracket and install new hardware

• Clean the pad contact areas on the bracket using a wire brush and brake parts cleaner.
• Install new abutment clips from the hardware kit.
• Pull the slide pins out (one at a time), wipe clean with shop towels, apply a thin coat of caliper slide pin grease, and reinstall.

Step 9: Reinstall the bracket

• Position the bracket over the rotor and start both bolts by hand.
• Tighten using a ratchet, then final-tighten with a torque wrench.
• Torque to 200 Nm (148 ft-lbs)

Step 10: Compress the caliper piston

• Before compressing, make sure the old inner pad is against the piston face (it spreads the force).
• Use a C-clamp (6") or disc brake piston compressor (specialty) to slowly push the piston fully back into the caliper.
• Watch the brake fluid reservoir as you compress. Go slow to avoid overflow.

Step 11: Install new pads and reinstall the caliper

• Install the new inner and outer pads into the bracket.
• Lower the caliper over the pads and align the slide pin holes.
• Install the slide pin bolts using a ratchet and correct metric hex bit socket, then final-tighten with a torque wrench.
• Torque to 38 Nm (28 ft-lbs)

Step 12: Reinstall wheels and torque lug nuts

• Reinstall both wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench.
• Torque to 140 Nm (103 ft-lbs)

---

✅ After Repair

• Pump the brake pedal 10-15 times before driving until it feels firm. The pedal will be low at first.
• Check brake fluid level and top off with DOT 3 if needed.
• With the engine running, do a slow test in a safe area: gentle stops, then moderate stops.
• Pad bedding (recommended): make 8-10 medium stops from ~40 to ~10 mph, allowing 30-60 seconds between stops for cooling.
• Recheck for leaks, abnormal noises, or pulling; retorque lug nuts after 25-50 miles using a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $180-$380 (parts only)

You Save: $370-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
