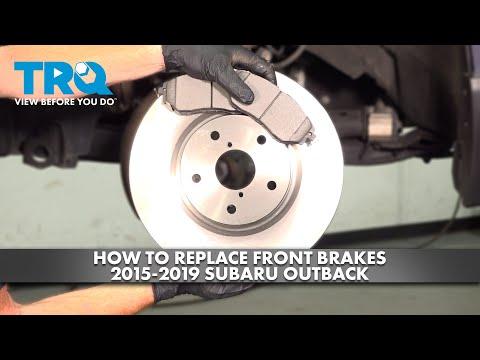

🔧 Outback - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, take off the brake calipers and brackets, replace the rotors, then install new brake pads. This restores stopping power and fixes pulsation/shaking caused by warped rotors or worn pads.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and use jack stands—never rely on a jack alone.
• Brake dust is harmful—use brake cleaner, not compressed air.
• Do not let the caliper hang by the brake hose—support it with a hook.
• Keep grease and brake fluid off pad/rotor friction surfaces.
• After compressing pistons, check the brake fluid level so it doesn’t overflow.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20–150 ft-lbs range)
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–50 ft-lbs range)
• Flat-blade screwdriver
• C-clamp brake piston compressor
• Brake caliper hanger hook
• Wire brush
• Rubber mallet
• Phillips screwdriver
• M8 x 1.25 bolts (pair)
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake hardware kit (pad clips/shims) - Qty: 1
• Brake caliper grease (silicone/high-temp) - Qty: 1
• Brake fluid (DOT 3 or DOT 4) - Qty: 1 bottle

---

📋 Before You Begin

• Park your Outback on flat ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Crack the front lug nuts loose 1/4 turn using a 19mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; keep the cap loosely set on top (don’t remove it completely unless needed).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front end

• Use a floor jack to lift the front at the approved front jacking point.
• Place jack stands under the front pinch welds or approved support points and lower onto them.
• Remove the front wheels using a 19mm socket.

Step 2: Remove the front brake caliper (do not stretch the hose)

• Turn the steering wheel to give yourself working room at the side you’re on.
• Remove the caliper slide pin bolts using a 14mm socket.
• Lift the caliper off the pads and support it with a caliper hanger hook. Never hang it by the hose.

Step 3: Remove old pads and inspect hardware

• Pull the pads out of the bracket by hand; use a flat-blade screwdriver gently if they’re stuck.
• Remove the pad clips/hardware from the bracket (usually they pop out by hand).
• Clean the bracket pad lands with a wire brush and brake cleaner spray.

Step 4: Remove the caliper bracket

• Remove the two caliper bracket bolts using a 17mm socket and breaker bar.
• Set the bracket aside.
• When reinstalling later: Torque to 80 N·m (59 ft-lbs).

Step 5: Remove the rotor

• If equipped with rotor retaining screws, remove them with a Phillips screwdriver.
• If the rotor is stuck, thread two M8 x 1.25 bolts into the rotor push-off holes evenly until the rotor pops loose.
• Tap around the rotor hat with a rubber mallet if needed, then remove the rotor.

Step 6: Prep the hub and install the new rotor

• Clean rust from the hub face with a wire brush, then spray with brake cleaner spray.
• Clean the new rotor faces with brake cleaner spray to remove packing oil.
• Install the new rotor. If you have retaining screws, reinstall them with a Phillips screwdriver (snug only).
• Hold the rotor in place by hand, or temporarily install 1-2 lug nuts by hand (no tools yet).

Step 7: Reinstall the caliper bracket

• Reinstall the bracket and start both bolts by hand.
• Tighten using a 17mm socket.
• Torque to 80 N·m (59 ft-lbs) using a torque wrench.

Step 8: Install new pad hardware and pads

• Install new pad clips/hardware into the bracket.
• Apply a thin film of brake caliper grease where the pad “ears” touch the clips. (This is the metal-to-metal sliding area.)
• Install the new inner and outer pads into the bracket by hand.

Step 9: Compress the caliper piston and reinstall the caliper

• Place an old brake pad against the piston face, then use a C-clamp brake piston compressor to slowly push the piston fully back in.
• Watch the brake fluid reservoir while compressing; remove a little fluid if it gets too high.
• Slide the caliper over the new pads.
• Install the slide pin bolts using a 14mm socket.
• Torque to 27 N·m (20 ft-lbs) using a torque wrench.

Step 10: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the vehicle off the stands using the floor jack.
• Torque lug nuts in a star pattern using a 19mm socket and torque wrench: Torque to 120 N·m (89 ft-lbs).

---

✅ After Repair

• With the engine OFF, slowly pump the brake pedal 10–15 times until it feels firm. This seats pads to the rotor.
• Check brake fluid level and top off with DOT 3 or DOT 4 if needed.
• Start the engine and confirm the pedal feels normal.
• Do a cautious test drive and verify no grinding, pulling, or vibration.
• Pad bed-in (recommended): make 8–10 moderate stops from 40 to 10 mph, letting brakes cool a bit between stops; avoid hard panic stops for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹9,000-₹22,000 (parts only)

You Save: ₹9,000-₹13,000 by doing it yourself!

Shop labor rates vary but typically run ₹2,000-₹4,000/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
