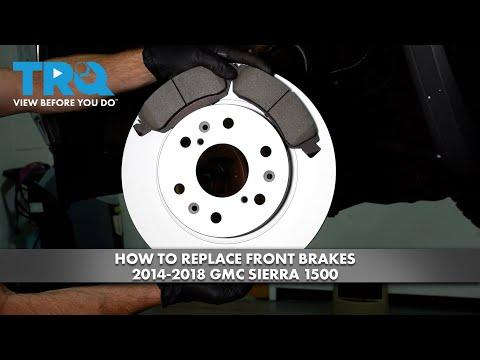

🔧 Sierra 1500 - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, take off the brake caliper and bracket, replace the rotor, then install new pads and reassemble with the correct torque. This restores braking performance and prevents vibration/pulsation caused by worn pads or warped rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support your Sierra 1500 with jack stands on the frame; never rely on a jack alone.
• 🔥 Brakes can be extremely hot; let everything cool before touching.
• 🧴 Brake dust is harmful—use brake cleaner, not compressed air, to clean parts.
• 🧯 Do not press the brake pedal while the caliper is off the rotor.
• 🔋 Battery disconnect is not required for this front brake job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 22mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30–200 ft-lbs range)
• 13mm socket
• 18mm socket
• Ratchet (3/8" or 1/2")
• Short extension (3" drive extension)
• Flat blade screwdriver
• C-clamp (6" minimum) or disc brake piston compressor (specialty)
• Bungee cord or mechanics wire
• Wire brush
• Rubber mallet
• Brake parts cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2 Replace in pairs
• Front brake pad hardware kit (clips) - Qty: 1
• Brake caliper slide grease (silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle

---

📋 Before You Begin

• 🧭 Park on level ground, shift to PARK, and set the parking brake.
• 🪵 Place wheel chocks behind the rear tires.
• 🧴 Pop the hood and check the brake fluid level—when you compress the caliper pistons, the level can rise. Remove a little fluid if near “MAX”.
• 🧰 Lay out parts so you don’t mix left/right hardware clips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts

• Use a 22mm socket and breaker bar to loosen the front wheel lug nuts about 1 turn (don’t remove yet).

Step 2: Lift and support the front end

• Use a floor jack (rated 3-ton minimum) to lift the front of your Sierra 1500 at a proper front lift point.
• Place jack stands (rated 3-ton minimum) under the frame and lower the truck onto them.
• Shake the truck lightly to confirm it’s stable before working.

Step 3: Remove the wheels

• Use a 22mm socket and ratchet to remove the lug nuts, then remove both front wheels.

Step 4: Remove the brake caliper

• Turn the steering wheel to give yourself more room (turn left to work on the right side, and vice-versa).
• Use a 13mm socket and ratchet to remove the two caliper slide pin bolts.
• Lift the caliper off the bracket. Use a bungee cord or mechanics wire to hang the caliper so the brake hose is not stretched.
• Do not let the caliper hang by the hose.
• Reinstall torque later: Torque to 31 Nm (23 ft-lbs)

Step 5: Remove the old brake pads and hardware clips

• Use a flat blade screwdriver to carefully pry the pads out of the bracket if they’re stuck.
• Remove the old stainless hardware clips from the bracket.

Step 6: Remove the caliper bracket

• Use an 18mm socket, breaker bar, and short extension (3" drive extension) to remove the two caliper bracket bolts.
• Remove the bracket and set it aside.
• Reinstall torque later: Torque to 221 Nm (163 ft-lbs)

Step 7: Remove the rotor

• Pull the rotor straight off the hub.
• If it’s rust-stuck, spray the hub area with brake parts cleaner spray, then tap the rotor hat with a rubber mallet until it breaks free.

Step 8: Clean the hub and prep the new rotor

• Use a wire brush to clean rust off the hub face (where the rotor sits). A clean, flat hub helps prevent brake vibration.
• Spray both sides of the new rotor with brake parts cleaner spray and wipe with shop towels to remove protective oil.

Step 9: Install the new rotor

• Slide the new rotor onto the hub.
• To keep it from wobbling while you work, thread on one lug nut by hand (use your fingers only) to hold the rotor in place.

Step 10: Reinstall the caliper bracket

• Position the bracket over the rotor.
• Install the bracket bolts by hand first, then tighten using an 18mm socket and ratchet.
• Final-tighten with a 1/2" drive torque wrench (30–200 ft-lbs range): Torque to 221 Nm (163 ft-lbs)

Step 11: Install new hardware clips and pads

• Snap the new hardware clips into the bracket.
• Apply a thin layer of brake caliper slide grease (silicone) where the pad “ears” touch the hardware clips.
• Slide the new pads into the bracket.
• Keep grease off pad/rotor friction surfaces.

Step 12: Compress the caliper piston

• A C-clamp (6" minimum) squeezes the piston back into the caliper so the thicker new pads will fit.
• Place an old pad against the piston face, then use the C-clamp (or disc brake piston compressor (specialty)) to slowly compress the piston fully.
• Watch the brake fluid reservoir under the hood—don’t let it overflow.

Step 13: Reinstall the caliper

• Set the caliper over the new pads and align it with the slide pin bolt holes.
• Install the slide pin bolts using a 13mm socket and ratchet.
• Final-tighten with a torque wrench: Torque to 31 Nm (23 ft-lbs)

Step 14: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the truck off the jack stands using the floor jack.
• Use a 1/2" drive torque wrench and 22mm socket to torque lug nuts in a star pattern: Torque to 190 Nm (140 ft-lbs)

---

✅ After Repair

• 🦶 With the engine OFF, slowly press the brake pedal 8–10 times until it feels firm. This seats the pistons against the new pads.
• 🧴 Check brake fluid level and top off with DOT 3 if needed.
• 🕵️ Look for leaks, odd noises, or a wheel that drags heavily.
• 🛣️ Bed-in the pads: make 8–10 medium stops from ~40 mph down to ~10 mph, allowing a little cooling time between stops. Avoid hard stops for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹10,000-₹25,000 (parts only)

You Save: ₹8,000-₹10,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
