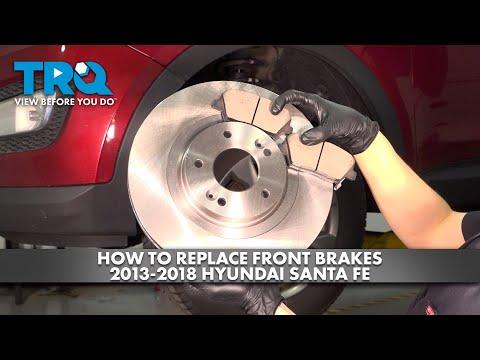

🔧 Santa Fe - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the front brake calipers, replace the brake pads, and swap the rotors. Worn pads or warped rotors can cause squealing, grinding, vibration, and longer stopping distance.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: factory front single-piston calipers with standard rotor retaining screws.

---

⚠️ Safety & Precautions

• 🧯 Support the Santa Fe with jack stands on solid ground; never rely on a jack alone.
• 🧤 Brake dust is harmful; wear nitrile gloves and a dust mask, and use brake cleaner (do not blow with compressed air).
• 🔥 Brakes can be hot after driving; let everything cool before starting.
• 🧵 Do not let the caliper hang by the brake hose; use a caliper hanger hook.
• 🔋 Battery disconnect is not required for front brakes on the Santa Fe.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar 1/2"
• Torque wrench 3/8" (10–100 ft-lbs range)
• Torque wrench 1/2" (50–150 ft-lbs range)
• 21mm socket
• 14mm socket
• 17mm socket
• Ratchet 3/8"
• Ratchet 1/2"
• Short extension 3/8"
• Flat trim tool
• C-clamp (6-inch) or disc brake piston compressor (specialty)
• Caliper hanger hook
• Phillips #3 screwdriver
• Rubber mallet
• Wire brush
• Brake cleaner spray
• Shop towels
• Safety glasses
• Nitrile gloves
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2 Replace in pairs
• Front pad hardware/clip kit - Qty: 1
• Brake caliper slide pin grease (silicone-based) - Qty: 1
• Brake parts cleaner - Qty: 1
• Brake fluid (DOT 3 or DOT 4) - Qty: 1 quart
• Medium-strength threadlocker (blue) - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Loosen the front lug nuts 1/2 turn with a 21mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; keep the cap loosely set on top.
• If the reservoir is very full, remove a little fluid with a suction tool before compressing pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack to lift at the front center jacking point, then set the Santa Fe onto jack stands.
• Remove the wheels using a 21mm socket.

Step 2: Locate the caliper and remove the caliper bolts

• Turn the steering wheel to give yourself room (left for right side, right for left side).
• On the back of the caliper, remove the two slide-pin bolts using a 14mm socket and ratchet.
• Slide pins are the guided bolts the caliper moves on.

Step 3: Support the caliper and remove the old pads

• Lift the caliper off the bracket and hang it using a caliper hanger hook.
• Remove the inner and outer pads from the bracket by hand; use a flat trim tool if they’re stuck.
• Remove the pad hardware/clips from the bracket (note their positions).

Step 4: Remove the caliper bracket

• Remove the two caliper bracket-to-knuckle bolts using a 17mm socket, breaker bar, and ratchet.
• Set the bracket aside on a towel.
• On reassembly: Torque to 98–108 Nm (72–80 ft-lbs) and apply medium-strength threadlocker (blue).

Step 5: Remove the rotor

• Remove the rotor retaining screw(s) using a Phillips #3 screwdriver.
• If the rotor is stuck to the hub, tap the rotor “hat” area with a rubber mallet until it breaks free.
• Clean the hub face with a wire brush and brake cleaner spray so the new rotor sits perfectly flat.
• A dirty hub can cause pedal pulsation.

Step 6: Install the new rotor

• Clean both sides of the new rotor with brake cleaner spray and shop towels to remove shipping oil.
• Apply a very thin film of anti-seize compound to the hub center ring (not the wheel studs).
• Install the rotor and reinstall the retaining screw(s) using a Phillips #3 screwdriver.

Step 7: Service the bracket and slide pins

• Clean the bracket pad “rails” with a wire brush and brake cleaner spray.
• Install new pad hardware/clips.
• Remove each slide pin, wipe it clean with shop towels, and apply caliper slide pin grease.
• Slide pin grease keeps the caliper moving freely.

Step 8: Reinstall the bracket

• Position the bracket over the rotor and start the bolts by hand.
• Tighten using a 17mm socket and torque wrench 1/2": Torque to 98–108 Nm (72–80 ft-lbs).

Step 9: Install the new pads

• Install the new pads into the bracket (inner pad typically goes on the piston side).
• If your pad set includes a wear indicator, match it to the same side/position as removed.

Step 10: Compress the caliper piston

• Before compressing, check the brake fluid reservoir level.
• Use a C-clamp (6-inch) or disc brake piston compressor (specialty) to slowly push the piston fully back into the caliper.
• Go slow to avoid overflowing the reservoir.

Step 11: Reinstall the caliper

• Place the caliper over the new pads and align the slide pin holes.
• Install and tighten the slide-pin bolts using a 14mm socket and torque wrench 3/8": Torque to 25–30 Nm (18–22 ft-lbs).

Step 12: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the Santa Fe and torque lug nuts in a star pattern using a 21mm socket and torque wrench 1/2": Torque to 108–127 Nm (80–94 ft-lbs).

Step 13: Repeat on the other front side

• Repeat Steps 2–12 for the other front brake.
• Always do brakes in pairs.

---

✅ After Repair

• With the engine off, pump the brake pedal 10–15 times until it feels firm.
• Check brake fluid level and top off with DOT 3 or DOT 4 if needed.
• Start the engine and confirm the pedal stays firm and the vehicle stops normally at low speed.
• Bed-in the pads (seats pads to rotors): do 8–10 moderate stops from ~40 mph to ~10 mph, allowing 30–60 seconds between stops.
• Recheck for leaks, odd noises, or pulling; re-torque lug nuts after 25–50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
