🔧 F-150 - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, take off the brake caliper and bracket, swap the rotors, then install new pads and reassemble. Doing pads and rotors together helps prevent vibration, noise, and uneven braking.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the truck with jack stands on the frame; never rely on a floor jack alone.
• 🛑 Chock the rear wheels with wheel chocks and keep the transmission in Park.
• 🛑 Brake dust is harmful—wear nitrile gloves and safety glasses; use brake cleaner, not compressed air.
• 🛑 Do not let the caliper hang by the brake hose—support it with a bungee cord.
• 🛑 Watch the brake fluid level when compressing pistons; siphon a little out if the reservoir is near “MAX”.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 13mm socket
• 18mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (30-250 ft-lbs range)
• C-clamp (6" minimum)
• Flathead screwdriver
• Bungee cord
• Wire brush
• Rubber mallet
• Brake parts cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front pad hardware/clip kit - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, turn the steering wheel straight, and set the parking brake.
• Crack the front lug nuts loose with a 21mm socket and breaker bar before lifting (about 1/4 turn).
• Open the hood and locate the brake fluid reservoir. Leave the cap sitting loosely on top (don’t tighten it) so fluid can move as pistons retract.
• Tip: Do one side at a time. The other side is your “reference” if you forget pad orientation.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Lift the front end with a floor jack (rated 3-ton minimum) and place jack stands (rated 3-ton minimum) under the frame.
• Remove the lug nuts using a 21mm socket and 3/8" drive ratchet, then remove the wheel.

Step 2: Remove the caliper (the clamp that squeezes the pads)

• Turn the steering wheel to give yourself room to work on that side.
• Remove the two caliper slide pin bolts using a 13mm socket and 3/8" drive ratchet.
• Lift the caliper off the bracket. Support it with a bungee cord so the brake hose is not strained.

Step 3: Remove the old brake pads and hardware

• Pull the pads out of the bracket by hand. If they’re stuck, gently pry with a flathead screwdriver.
• Remove the stainless pad clips (hardware) from the bracket.

Step 4: Remove the caliper bracket

• Remove the two caliper bracket bolts using an 18mm socket and 1/2" drive breaker bar.
• Set the bracket aside.

Step 5: Remove the rotor

• Pull the rotor straight off the hub.
• If the rotor is rust-stuck, tap between the wheel studs with a rubber mallet until it breaks free.
• Clean the hub face with a wire brush so the new rotor sits perfectly flat (this helps prevent pedal pulsation).

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake parts cleaner spray to remove shipping oil.
• Slide the new rotor onto the hub. Hold it in place with one lug nut hand-threaded (use the 21mm socket lightly) so it doesn’t flop around.

Step 7: Reinstall the caliper bracket

• Reinstall the bracket bolts using an 18mm socket and 1/2" drive ratchet.
• Torque to 200 Nm (148 ft-lbs) using a torque wrench (30-250 ft-lbs range).

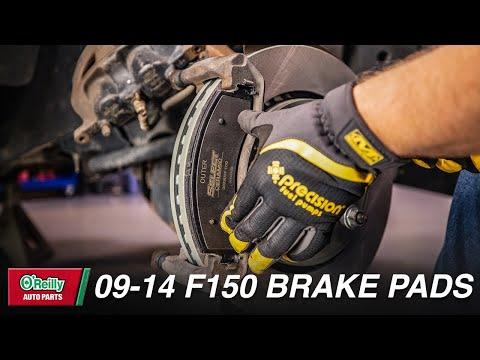

Step 8: Install new pad hardware and pads

• Install the new pad clips into the bracket.
• Apply a thin film of brake caliper grease (silicone) where the pad “ears” slide on the clips (avoid the pad friction material and rotor face).
• Slide the new pads into place.

Step 9: Compress the caliper piston

• Place one old brake pad against the piston face.
• Use a C-clamp (6" minimum) to slowly press the piston back into the caliper until it bottoms out.
• Check the brake fluid reservoir while compressing. If it rises too high, remove a small amount (do not overflow).

Step 10: Reinstall the caliper

• Set the caliper over the new pads.
• Install the caliper slide pin bolts using a 13mm socket and 3/8" drive ratchet.
• Torque to 35 Nm (26 ft-lbs) using a torque wrench (30-250 ft-lbs range).

Step 11: Reinstall the wheel and torque lug nuts

• Reinstall the wheel and hand-thread all lug nuts.
• Lower the truck off the jack stands using the floor jack (rated 3-ton minimum).
• Torque the lug nuts in a star pattern using a 21mm socket and torque wrench (30-250 ft-lbs range).
• Torque to 203 Nm (150 ft-lbs).

Step 12: Repeat on the other front side

• Repeat Steps 1–11 on the other side.
• Tip: Compare pad seating both sides.

---

✅ After Repair

• With the engine OFF, press the brake pedal slowly 10–15 times until it feels firm (this seats the pistons against the new pads).
• Check brake fluid level and top off with DOT 3 if needed. Tighten the reservoir cap.
• Start the engine and confirm the pedal stays firm.
• Test-drive at low speed first. Make sure it stops straight and no grinding noises.
• Pad/rotor break-in: do 6–10 moderate stops from 35–45 mph with cool-down time between stops. Avoid hard stops for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $200-$450 (parts only)

You Save: $250-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
