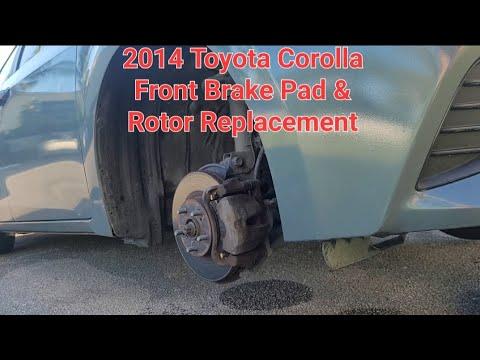

🔧 Corolla - Front Brake Pads & Rotor Replacement

You’ll remove the front calipers, replace the brake pads, and swap the rotors. New pads need a smooth, true rotor surface to stop safely and avoid vibration.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: stock front single-piston sliding calipers.

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Brake dust is harmful—wear a dust mask and avoid blowing dust with compressed air.
• ⚠️ Don’t let the caliper hang by the brake hose—support it with a bungee cord.
• ⚠️ Keep grease off pad/rotor friction surfaces; clean with brake cleaner if contaminated.
• ⚠️ Brake fluid can damage paint—wipe spills immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (2-ton minimum pair)
• Wheel chocks
• 21mm socket
• 14mm socket
• 17mm socket
• 3/8" ratchet
• 1/2" breaker bar
• Torque wrench (10-200 Nm range)
• C-clamp (6" minimum)
• Bungee cord
• Flathead screwdriver
• Needle-nose pliers
• M8 x 1.25 bolts (pair)
• Wire brush
• Brake cleaner spray
• Shop rags
• Nitrile gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front brake hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the engine off, and place wheel chocks behind the rear tires.
• Release the hood and locate the brake fluid reservoir. You’ll watch the fluid level when compressing the pistons.
• Loosen (crack loose) the front wheel lug nuts 1/2 turn before lifting the car using a 21mm socket and breaker bar.
• “Caliper slide pins” are the two bolts that let the caliper glide.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Lift the front of your Corolla using a floor jack (rated 3-ton minimum) at the front center jacking point.
• Set the car securely onto jack stands (2-ton minimum pair).
• Remove the lug nuts using a 21mm socket and 3/8" ratchet, then remove both front wheels.

Step 2: Remove the caliper (do NOT disconnect the brake hose)

• Turn the steering wheel to give yourself room (left for right side, right for left side).
• Remove the two caliper slide pin bolts using a 14mm socket and 3/8" ratchet.
• Lift the caliper off the bracket. Support it with a bungee cord so the hose isn’t stretched.

Step 3: Remove the old pads and hardware

• Pull the brake pads out of the caliper bracket by hand. Use a flathead screwdriver gently if they’re stuck.
• Remove the stainless hardware clips (abutment clips) from the bracket using needle-nose pliers.
• Abutment clips are the pad “tracks”.

Step 4: Remove the caliper bracket

• Remove the two caliper bracket bolts using a 17mm socket and 1/2" breaker bar.
• Set the bracket aside on a stable surface.
• During reassembly: Torque to 107 Nm (79 ft-lbs) using a torque wrench (10-200 Nm range).

Step 5: Remove the rotor

• If the rotor slides off, remove it by hand.
• If the rotor is stuck from rust, thread the M8 x 1.25 bolts (pair) into the rotor’s push-off holes and tighten evenly with a 17mm socket until the rotor pops loose.
• Clean the hub face (where the rotor sits) using a wire brush and wipe with shop rags.

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake cleaner spray and wipe with shop rags (this removes protective oil).
• Apply a very thin film of anti-seize compound to the hub face (not on rotor friction surfaces).
• Install the new rotor onto the hub.

Step 7: Service the slide pins and reinstall the bracket

• Pull the slide pins out of the bracket by hand.
• Wipe old grease off using shop rags, then apply fresh brake caliper grease (silicone) in a thin coat.
• Slide pins must move smoothly by hand.
• Reinstall the caliper bracket and tighten bolts with a 17mm socket, then Torque to 107 Nm (79 ft-lbs) using a torque wrench (10-200 Nm range).

Step 8: Install new hardware clips and new pads

• Install the new abutment clips into the bracket by hand (use needle-nose pliers if needed).
• Apply a thin layer of brake caliper grease (silicone) where the pad “ears” touch the clips (metal-to-metal contact points only).
• Install the new pads into the bracket. They should slide easily.

Step 9: Compress the caliper piston

• Remove the brake fluid reservoir cap under the hood to prevent pressure buildup.
• Place one old pad against the caliper piston face.
• Use a C-clamp (6" minimum) to slowly press the piston fully back into the caliper.
• Watch the reservoir level—if it gets too high, remove a little fluid with shop rags (do not spill).

Step 10: Reinstall the caliper

• Set the caliper over the new pads and align the slide pin bolt holes.
• Install the slide pin bolts using a 14mm socket and 3/8" ratchet.
• Torque to 34 Nm (25 ft-lbs) using a torque wrench (10-200 Nm range).

Step 11: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a 21mm socket.
• Torque to 103 Nm (76 ft-lbs) using a torque wrench (10-200 Nm range).

---

✅ After Repair

• Before driving, pump the brake pedal 10-15 times until it feels firm (this seats the pads against the rotors).
• Check the brake fluid level and top off with DOT 3 if needed (do not overfill).
• Do a slow test in a safe area: confirm normal stopping, no pulling, and no grinding noises.
• Bed-in (break-in) the pads: make 6-10 moderate stops from ~35 mph to ~5 mph with cooling time between. Don’t hold the pedal at a full stop.
• Recheck lug nut torque after 50-100 miles using a torque wrench (10-200 Nm range).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $160-$380 (parts only)

You Save: $290-$520 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
