🔧 Wrangler - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the brake calipers and brackets, swap the rotors, then install new pads and reassemble. This restores stopping power and prevents vibration or grinding when rotors are worn or warped.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and chock the rear wheels.
• ⚠️ Support the Wrangler with jack stands—never rely on a floor jack.
• ⚠️ Do not let the brake caliper hang by the rubber brake hose.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air.
• ⚠️ Brake fluid can damage paint; wipe spills immediately.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 13mm socket
• 21mm socket
• Torque wrench (10-250 ft-lbs range)
• C-clamp (6" minimum)
• Large flathead screwdriver
• Bungee cord or caliper hook
• Wire brush
• Rubber mallet
• Brake cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front brake hardware/abutment clip kit - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground, leave the transmission in 1st gear, and set the parking brake.
• 🧰 Chock both rear wheels.
• 🧰 Pop the hood and remove the brake master cylinder cap (leave it resting on top). This helps fluid return when you compress the caliper pistons.
• 🧰 If the brake fluid is already near “MAX,” suction a little out so it doesn’t overflow when pistons are pushed back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and lift the front

• Use a 21mm socket and breaker bar to crack the front lug nuts loose about 1/2 turn while the tires are on the ground.
• Lift the front axle with a floor jack (rated 3-ton minimum) and set it securely on jack stands (rated 3-ton minimum).
• Remove the wheels using a 21mm socket.

Step 2: Remove the brake caliper

• Turn the steering wheel to give yourself more room at the side you’re working on.
• Use a 13mm socket and 3/8" drive ratchet to remove the two caliper slide-pin bolts.
• Carefully lift the caliper off the bracket.
• Hang the caliper using a bungee cord or caliper hook; a caliper hook is just a strap/hook that supports the caliper so the brake hose isn’t stretched.

Step 3: Remove old pads and hardware

• Pull the brake pads out of the bracket by hand. If they’re stuck, gently pry with a large flathead screwdriver.
• Remove the stainless pad clips (hardware) from the bracket.

Step 4: Remove the caliper bracket

• Use a 21mm socket with a breaker bar to remove the two caliper bracket bolts (they’re tight).
• Set the bracket aside.
• During reassembly: Torque to 169 Nm (125 ft-lbs).

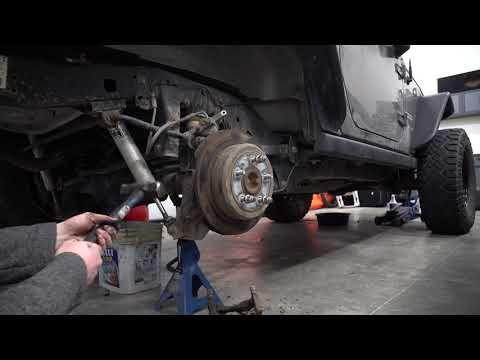

Step 5: Remove the rotor

• Pull the rotor straight off the wheel studs.
• If it’s rust-stuck, spray the hub/center area with brake cleaner spray, then tap the rotor hat with a rubber mallet to break it free.

Step 6: Clean the hub and prep the new rotor

• Use a wire brush to clean rust off the wheel hub face (where the rotor sits flat).
• Spray the new rotor with brake cleaner spray and wipe with shop towels to remove shipping oil.
• Install the new rotor onto the hub.

Step 7: Install new pad hardware

• Install the new stainless hardware clips into the caliper bracket by hand.
• Apply a very thin film of brake caliper grease (silicone) where the pad “ears” slide on the clips. Keep grease off pad friction surfaces.

Step 8: Reinstall the caliper bracket

• Position the bracket over the new rotor.
• Start both bracket bolts by hand, then tighten using a 21mm socket and breaker bar.
• Final tighten using a torque wrench (10-250 ft-lbs range): Torque to 169 Nm (125 ft-lbs).

Step 9: Compress the caliper piston

• Before compressing, watch the brake fluid reservoir under the hood for rising level.
• Use a C-clamp (6" minimum) to slowly push the caliper piston back until it bottoms out.
• If the piston is hard to push, stop and re-check that you’re pushing straight; forcing it can damage the caliper.

Step 10: Install new pads and reinstall the caliper

• Slide the new pads into the bracket by hand.
• Place the caliper over the new pads/rotor.
• Install the caliper slide-pin bolts using a 13mm socket and 3/8" drive ratchet.
• Final tighten using a torque wrench (10-250 ft-lbs range): Torque to 35 Nm (26 ft-lbs).

Step 11: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the Wrangler off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Torque the lug nuts in a star pattern using a torque wrench (10-250 ft-lbs range): Torque to 129 Nm (95 ft-lbs).

Step 12: Pump the brake pedal and recheck fluid

• With the engine OFF, slowly pump the brake pedal until it feels firm (this seats the pads against the rotors).
• Top off brake fluid if needed, then reinstall the reservoir cap.

---

✅ After Repair

• ✅ Do a slow test in a safe area: confirm firm pedal and straight stopping.
• ✅ Listen for scraping/grinding (light pad “whoosh” is normal).
• ✅ Recheck brake fluid level after the test drive.
• ✅ Brake pad bed-in (recommended): make 8-10 moderate stops from ~40 to ~10 mph, driving a little between stops to cool. Avoid hard stops for 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$350 (parts only)

You Save: $290-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
