🔧 X5 - Front Brake Pads & Rotor Replacement

On your X5, the front brake pads clamp the rotor to slow the vehicle. When pads get thin or rotors get worn/warped, you’ll feel noise, vibration, or longer stopping distance—replacing pads and rotors together restores proper braking and helps the new pads bed-in correctly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the X5 with jack stands—never rely on a jack alone.
• 🧤 Brake dust is harmful; wear N95 mask and safety glasses, and use brake cleaner (don’t blow with compressed air).
• 🔥 Brakes get hot—work only when rotors are cool to the touch.
• 🧯 Keep brake fluid off paint; it removes paint quickly.
• 🔩 Do one side at a time so you can reference the other side if needed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 3/8" ratchet
• 1/2" breaker bar
• 1/2" torque wrench (20-200 Nm range)
• 7mm hex bit socket
• 18mm socket
• 6mm hex bit socket
• Flat trim/pry tool
• Small flathead screwdriver
• Brake caliper piston compressor tool (specialty)
• Caliper hanger hook (specialty)
• Wire brush
• Rubber mallet
• Shop towels
• Brake cleaner spray
• Nitrile gloves
• Safety glasses
• N95 dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front brake pad wear sensor - Qty: 1
• Brake caliper hardware kit (clips) - Qty: 1
• Brake lubricant (silicone/ceramic) - Qty: 1
• Medium-strength threadlocker - Qty: 1
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, turn the steering wheel straight, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Crack the front wheel bolts loose before lifting (about 1/8–1/4 turn).
• Open the hood and locate the brake fluid reservoir; you’ll be pushing pistons back, so fluid level may rise—remove a little with a towel if it’s already at MAX.
• Piston compressor tool pushes the piston back safely.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

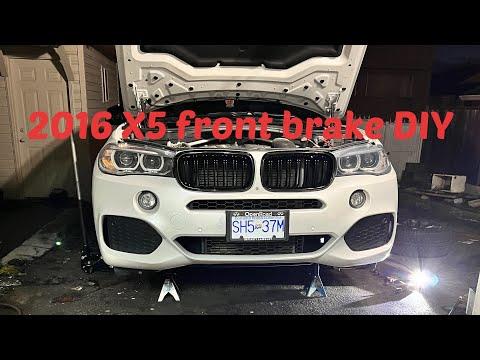

Step 1: Lift and secure the front end

• Use a floor jack to lift the front at the factory jacking point.
• Set the vehicle down onto jack stands and confirm it’s stable.
• Remove the wheel bolts using a 17mm socket and breaker bar, then remove the wheel.

Step 2: Remove the caliper spring clip

• On the front of the caliper, remove the anti-rattle spring clip using a flat trim/pry tool.
• Keep a hand over it as you pry—spring tension can pop it out.

Step 3: Unplug the front pad wear sensor (left front wheel)

• Follow the small wire coming from the inner brake pad and open the connector box using a small flathead screwdriver.
• Disconnect the sensor plug carefully (do not pull on the wire).
• This sensor is usually one-time use.

Step 4: Remove the caliper guide pin bolts

• Pop off the two plastic caps on the back of the caliper using a small flathead screwdriver.
• Remove the two guide pin bolts using a 7mm hex bit socket and 3/8" ratchet.
• Support the caliper as the second bolt comes out.

Step 5: Hang the caliper (do NOT let it dangle)

• Lift the caliper off the bracket and rotor.
• Hang it from the suspension spring/strut using a caliper hanger hook (specialty).
• Do not stretch or twist the brake hose.

Step 6: Remove old pads and compress the piston

• Remove the inner and outer pads by hand; use a flat trim/pry tool if they’re stuck.
• Position the old inner pad against the piston face, then use a brake caliper piston compressor tool (specialty) to slowly push the piston fully back.
• Check the brake fluid reservoir level as you compress.

Step 7: Remove the caliper carrier (bracket)

• Remove the two carrier-to-knuckle bolts using an 18mm socket and breaker bar.
• Set the carrier aside.
• During reassembly, apply medium-strength threadlocker and Torque to 110 Nm (81 ft-lbs).

Step 8: Remove the rotor

• Remove the small rotor retaining screw using a 6mm hex bit socket.
• Pull the rotor off. If stuck, tap the rotor hat with a rubber mallet to break it loose.
• During reassembly, Torque to 16 Nm (12 ft-lbs).

Step 9: Clean the hub and install the new rotor

• Clean the wheel hub face using a wire brush and brake cleaner spray until it’s smooth and rust-free.
• Apply a very thin film of anti-seize compound on the hub face (avoid the rotor friction surface).
• Install the new rotor and install the retaining screw using a 6mm hex bit socket, then Torque to 16 Nm (12 ft-lbs).

Step 10: Reinstall the carrier and prep hardware

• Reinstall the caliper carrier using an 18mm socket and torque wrench.
• Apply medium-strength threadlocker to the bolts and Torque to 110 Nm (81 ft-lbs).
• Install new pad abutment clips from the hardware kit (if included), snapping them into the carrier by hand.
• Apply a thin layer of brake lubricant where the pad “ears” slide on the clips (keep lube off rotor/pad friction material).

Step 11: Install new pads and wear sensor

• Install the new inner and outer pads into the carrier by hand.
• On the left front, press the new wear sensor into the slot on the inner pad (it “clicks” in).
• Route the sensor wire exactly like the original to avoid rubbing the tire.

Step 12: Reinstall the caliper

• Place the caliper over the new pads and rotor.
• Install the two guide pin bolts using a 7mm hex bit socket.
• Torque to 30 Nm (22 ft-lbs).
• Reinstall the plastic caps using a small flathead screwdriver.

Step 13: Reinstall the caliper spring clip and plug in sensor

• Reinstall the anti-rattle spring clip using a flat trim/pry tool until it seats fully.
• Reconnect the wear sensor plug and close the connector box.

Step 14: Reinstall wheel and repeat on the other side

• Reinstall the wheel and hand-thread the bolts.
• Lower the vehicle off the stands using the floor jack.
• Torque wheel bolts in a star pattern using a torque wrench: Torque to 140 Nm (103 ft-lbs).
• Repeat Steps 1–13 on the other front wheel (wear sensor is typically only on the left front).

---

✅ After Repair

• With the engine OFF, pump the brake pedal 10–15 times until it feels firm (this seats the pistons).
• Check brake fluid level and top off only if needed.
• Start the engine and confirm the pedal remains firm.
• Perform a careful test drive: first at low speed, confirm no pulling, grinding, or warning lights.
• Brake bed-in (general safe method): do 6–10 medium stops from ~50 km/h to ~10 km/h, with light driving between stops to cool.
• If a brake warning remains due to the wear sensor, reset the brake service in the instrument cluster/iDrive (if equipped).

---
