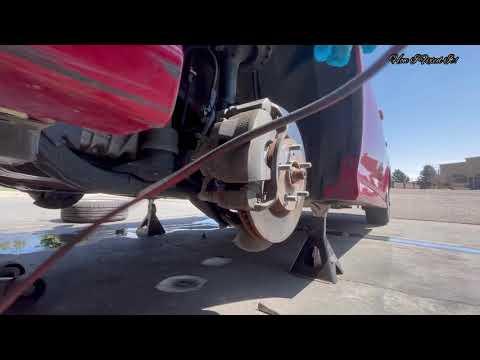

🔧 Camry - Front Brake Pads & Rotor Replacement

You’ll be removing the front wheels, swapping the brake pads and rotors, then reassembling and torquing everything to spec. New rotors help prevent vibration and ensure the new pads bed in evenly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a level surface and support the car with jack stands—never rely on a jack alone.
• ⚠️ Keep the hybrid system OFF: make sure the car is not in READY mode and keep the key/fob away from the car.
• ⚠️ Do not press the brake pedal with the caliper removed, or the piston can pop out and leak.
• ⚠️ Brake dust is harmful—avoid blowing it with compressed air; use brake cleaner instead.
• ⚠️ Watch for brake fluid overflow when compressing the caliper piston; wipe spills immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar 1/2"
• Torque wrench 3/8" (10–100 ft-lbs range)
• Torque wrench 1/2" (50–200 ft-lbs range)
• 17mm socket
• 14mm socket
• 17mm socket (caliper bracket bolts)
• Ratchet 3/8"
• Flathead screwdriver (medium)
• C-clamp or disc brake piston compressor (specialty)
• Brake caliper hanger hook (specialty)
• Wire brush
• Rubber mallet
• Brake cleaner spray
• Small bungee cord

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front pad hardware/clip kit - Qty: 1
• Brake caliper slide pin grease (silicone) - Qty: 1
• Brake parts lubricant (anti-squeal) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Chock the rear wheels with wheel chocks and park on level ground.
• Make sure the Camry is OFF (not in READY mode) and the key/fob is away from the car.
• Loosen the front lug nuts 1/2 turn before lifting using a 17mm socket and breaker bar.
• Open the hood and check the brake fluid reservoir level; if it’s near “MAX,” remove a little with a clean syringe/turkey baster so it won’t overflow when you compress the piston.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front with a floor jack (rated 3-ton minimum) at the front jacking point.
• Set the car down on jack stands (rated 3-ton minimum) at the proper support points.
• Give the car a gentle shake to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts with a 17mm socket and ratchet 3/8".
• Remove both front wheels and set them aside.

Step 3: Remove the brake caliper (do not hang by the hose)

• Turn the steering wheel to give yourself more room (left side: turn wheel right; right side: turn wheel left).
• Remove the two caliper slide bolts using a 14mm socket.
• Lift the caliper off the bracket and support it using a brake caliper hanger hook (specialty) or small bungee cord.
• Never let the caliper dangle.

Step 4: Remove the old brake pads and hardware

• Slide the pads out of the bracket by hand. Use a flathead screwdriver (medium) if they’re stuck.
• Remove the pad clips/hardware from the bracket (these are the metal “tracks” the pads slide on).

Step 5: Remove the caliper bracket

• Remove the two caliper bracket bolts using a 17mm socket and breaker bar 1/2".
• Set the bracket aside.
• On install later: Torque to 107 Nm (79 ft-lbs).

Step 6: Remove the rotor

• Pull the rotor straight off the hub.
• If it’s rust-stuck, tap the rotor hat with a rubber mallet to break it free.
• Clean the hub face with a wire brush and spray with brake cleaner spray.
• A clean hub helps prevent brake pulsation.

Step 7: Install the new rotor

• Clean both sides of the new rotor with brake cleaner spray to remove packing oil.
• Place the rotor onto the hub.
• To hold it flush while you work, thread on 1-2 lug nuts by hand (use the old lug nuts). Snug with a 17mm socket lightly—do not fully torque yet.

Step 8: Service the slide pins (important for even braking)

• Pull the slide pins out of the bracket by hand.
• Wipe them clean and apply a thin, even coat of brake caliper slide pin grease (silicone).
• Reinsert pins and confirm they move smoothly.
• “Slide pins” are the small greased rods that let the caliper move side-to-side.

Step 9: Install new pad hardware and pads

• Install the new pad clips/hardware onto the bracket by hand.
• Apply a thin film of brake parts lubricant (anti-squeal) where the pad backing touches the clips (metal-to-metal contact points only).
• Slide the new pads into the bracket.

Step 10: Reinstall the caliper bracket

• Position the bracket over the rotor and start the bolts by hand.
• Tighten using a 17mm socket and torque wrench 1/2".
• Torque to 107 Nm (79 ft-lbs).

Step 11: Compress the caliper piston

• Place the old inner pad against the caliper piston.
• Use a C-clamp or disc brake piston compressor (specialty) to slowly press the piston fully back into the caliper.
• Watch the brake fluid reservoir while compressing; stop if it nears overflow.
• The “piston” is the round part that pushes the pads against the rotor.

Step 12: Reinstall the caliper

• Set the caliper over the new pads/rotor.
• Install the two slide bolts using a 14mm socket.
• Tighten using a torque wrench 3/8": Torque to 34 Nm (25 ft-lbs).

Step 13: Repeat on the other front wheel

• Perform the same pad/rotor steps on the other side.
• Replace pads and rotors as a set (left + right) to keep braking even.

Step 14: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread lug nuts.
• Lower the car off the stands using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern using a torque wrench 1/2": Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Pump the brake pedal 8–12 times before moving the car until it feels firm.
• Check brake fluid level and top off with DOT 3 if needed (do not overfill).
• With the car in a safe area, do a slow test drive and confirm: no pulling, no grinding, normal pedal feel.
• Bed-in (break-in) the pads: make 6–10 moderate stops from ~30 mph to ~5 mph, with 30–60 seconds between stops to cool.
• Recheck for any leaks and confirm lug nuts are still torqued after 50–100 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$380 (parts only)

You Save: $290-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
