🔧 CX-50 - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers out of the way, swap the old pads for new ones, and then reassemble everything with the correct torque. This restores braking performance and prevents metal-to-metal rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Support your CX-50 on jack stands; never rely on a floor jack alone.
• 🧤 Brakes make dust—wear safety glasses and a dust mask; use brake cleaner, not compressed air.
• 🔥 Brakes can be very hot after driving; let everything cool before touching.
• 🧴 Brake fluid can damage paint; keep rags handy and don’t overflow the reservoir.
• 🔩 Do one side at a time so you can use the other side as a reference.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 14mm socket
• 17mm socket
• Torque wrench (20–150 ft-lbs range)
• Large C-clamp
• Flathead screwdriver
• Bungee cord
• Wire brush
• Brake parts cleaner spray
• Nitrile gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• High-temp silicone brake grease - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Crack the front lug nuts loose 1/4 turn using a 21mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; you’ll watch the fluid level when compressing the caliper piston.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front using a floor jack (rated 3-ton minimum) at the correct front jacking point.
• Set the CX-50 down onto jack stands (rated 3-ton minimum).
• Give the vehicle a gentle push to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts using a 21mm socket and ratchet.
• Remove both front wheels and set them aside.

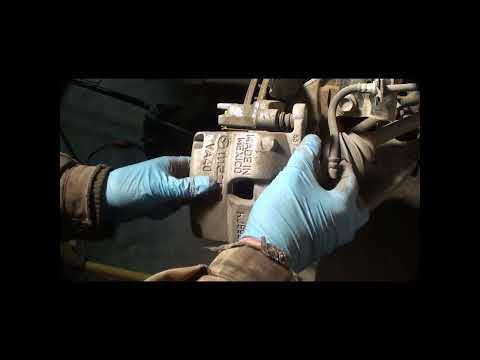

Step 3: Locate the caliper and remove the slide pin bolts

• Turn the steering wheel to give yourself more room (left for right side work, right for left side work).
• Remove the 2 caliper slide pin bolts using a 14mm socket and ratchet.
• Don’t let the caliper hang by the hose.

Step 4: Support the caliper

• Lift the caliper off the bracket.
• Hang the caliper from the suspension spring/strut using a bungee cord.

Step 5: Remove old pads and hardware

• Slide the old inner and outer pads out of the bracket by hand.
• Remove the stainless hardware/abutment clips using a flathead screwdriver.
• Clean the pad bracket contact areas using brake parts cleaner spray and a wire brush.

Step 6: Compress the caliper piston

• Place one old pad against the piston face.
• Slowly compress the piston using a large C-clamp until the piston is fully seated.
• Watch the brake fluid reservoir; remove a little fluid if it gets too full.
• Go slow to avoid damaging seals.

Step 7: Lube slide pins and install new hardware

• Pull each slide pin out (they’re the smooth pins the caliper bolts thread into).
• Apply a thin coat of high-temp silicone brake grease to the slide pin and reinstall it.
• Install new abutment clips (hardware) into the bracket by hand.
• Apply a very light film of high-temp silicone brake grease where pads touch the clips.

Step 8: Install the new pads

• Install the new inner and outer pads into the bracket by hand.
• If your inner pad has a wear indicator, install it in the same position as the original.

Step 9: Reinstall the caliper

• Set the caliper back over the new pads.
• Install the slide pin bolts by hand first to avoid cross-threading.
• Tighten the slide pin bolts using a 14mm socket and torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 10: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread all lug nuts.
• Lower the CX-50 off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a 21mm socket and torque wrench: Torque to 108 Nm (80 ft-lbs).

---

✅ After Repair

• With the engine OFF, pump the brake pedal 10–15 times until it feels firm. This seats the pistons against the new pads.
• Check brake fluid level in the reservoir and top off with DOT 3 if needed.
• Do a slow test drive. Start with gentle stops in a safe area.
• Pad bed-in (recommended): make 6–10 moderate stops from ~30 mph down to ~5 mph, letting brakes cool a bit between stops. Avoid hard panic stops for the first ~200 miles.
• If you hear grinding, feel pulling, or the pedal is soft, stop and recheck your work.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
