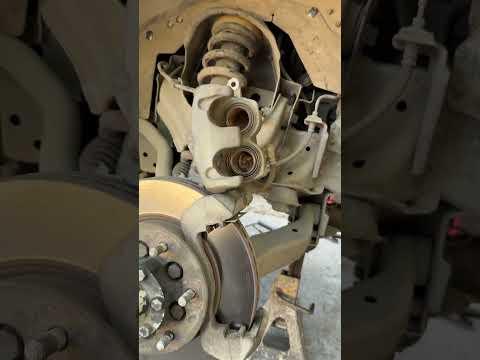

🔧 Trailblazer - Front Brake Pad Replacement

Replacing the front brake pads on your Trailblazer is a straightforward sliding-caliper job: you’ll remove the caliper, swap pads and hardware, compress the piston, then reassemble. The only “must be exact” part is torquing the caliper fasteners correctly so nothing loosens or binds.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the Trailblazer with jack stands before you go under or remove any wheels.
• ⚠️ Do not press the brake pedal while the caliper is off the rotor.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air.
• ⚠️ Keep grease and oil off the pad friction material and rotor face.
• ⚠️ If brake fluid nears the top of the reservoir, remove a little to prevent overflow when compressing pistons.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket (typically 19mm)
• Breaker bar (1/2")
• Torque wrench (10-200 ft-lbs range)
• Ratchet (3/8")
• Socket set (metric 10mm-21mm)
• Hex bit socket set (metric)
• Flat trim tool
• C-clamp (6")
• Brake caliper hanger hook
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1-2 cans
• DOT 3 brake fluid - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Loosen the front lug nuts slightly using a breaker bar and lug nut socket before lifting.
• Open the hood and locate the brake fluid reservoir. Leave the cap on, but be ready to remove a small amount if the level is very high.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm your front caliper fastener type (needed for exact torque specs)

• Turn the steering wheel fully left/right to see the back of the front caliper.
• Look at the two smaller “slider” bolts (the ones that hold the caliper to the bracket).
• Tell me whether those slider bolts are hex-head (regular bolt head) or internal hex (Allen). If you can, tell me the size you used to test-fit (example: 13mm, 15mm, 7mm Allen).
• A “slider” is the pin the caliper moves on.

Step 2: Lift and support the front end

• Lift the front using a floor jack at the proper front jack point.
• Set the Trailblazer on jack stands and gently shake to confirm it’s stable.
• Remove the wheel using a lug nut socket and ratchet.

Step 3: Remove the caliper (do not let it hang)

• Remove the 2 caliper slider bolts using the correct socket or hex bit socket.
• Lift the caliper off the rotor.
• Support it with a brake caliper hanger hook so the brake hose is not stretched or twisted.

Step 4: Remove old pads and hardware

• Slide the pads out of the bracket by hand. If they’re stuck, use a flat trim tool to gently pry.
• Remove the stainless pad clips (abutment clips) from the bracket.
• Clean the pad clip “rails” on the bracket using brake cleaner spray and a wire brush until smooth.

Step 5: Compress the caliper piston

• Place an old brake pad against the piston face.
• Use a C-clamp (6") to slowly push the piston fully back into the caliper.
• Check the brake fluid reservoir level as you compress; remove a small amount if it approaches the top.

Step 6: Install new hardware and pads

• Install the new abutment clips onto the bracket by hand.
• Apply a very thin film of brake caliper grease where the pad ears contact the clips (metal-to-metal contact points only).
• Install the new pads in the bracket in the same positions as the old ones.
• Keep grease off pad/rotor surfaces.

Step 7: Reinstall the caliper and tighten fasteners (torque pending your answer)

• Lower the caliper over the new pads.
• Start both slider bolts by hand to avoid cross-threading.
• Tighten the slider bolts using your ratchet and the correct socket/hex bit socket.
• Torque to OEM spec (I’ll give the exact value after you confirm bolt type/size in Step 1).

Step 8: Reinstall the wheel

• Reinstall the wheel and hand-start the lug nuts.
• Lower to the ground and tighten lug nuts in a star pattern using a torque wrench.
• Torque to OEM spec (I’ll confirm the exact lug torque for your wheel package when you reply).

Step 9: Repeat on the other front wheel

• Repeat Steps 2 through 8 on the other side.
• Always replace pads on both front wheels.

---

✅ After Repair

• With the engine off, slowly pump the brake pedal 10-15 times until it feels firm. This seats the pads against the rotors.
• Start the engine and confirm the pedal feels normal (it may drop slightly with brake assist).
• Check the brake fluid level and top off with DOT 3 if needed.
• Do a cautious test drive and listen for grinding or pulling.
• For best results, do gentle stops for the first 150-200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$160 (parts only)

You Save: $190-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
