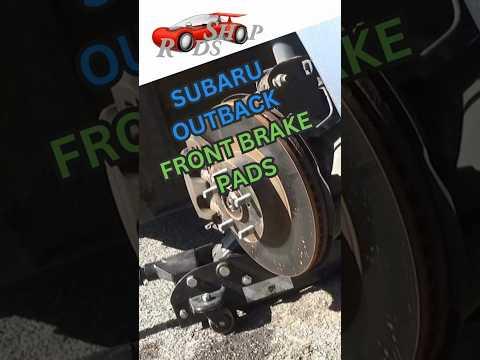

🔧 Outback - Front Brake Pad Replacement

On your Outback, replacing the front brake pads means removing the front caliper, swapping the pads, and pushing the caliper piston back so everything fits. Doing it right prevents noise, uneven braking, and premature rotor wear.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the vehicle with jack stands; never rely on a jack.
• ⚠️ Brake dust is harmful; avoid blowing with compressed air.
• ⚠️ Brakes get hot; work only when fully cool.
• ⚠️ Do not let the caliper hang by the hose; support it.
• ⚠️ Keep brake fluid off paint; it can damage the finish.
• ⚠️ No battery disconnect is required for this front brake pad job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 19mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20–150 ft-lbs range)
• 14mm socket
• 17mm socket
• Flat-blade screwdriver
• Bungee cord
• C-clamp (6" minimum)
• Brake parts cleaner spray
• Wire brush
• High-temp silicone brake grease
• Disposable gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front pad hardware kit - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, put the shifter in P, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Crack the front wheel lug nuts loose 1/2 turn using a 19mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; keep the cap loosely set on top (don’t remove it completely unless needed).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front of the vehicle using a floor jack at the front center jacking point.
• Set the vehicle onto jack stands at the pinch weld/support points.
• Remove the wheels using a 19mm socket.

Step 2: Locate the caliper and remove the lower caliper bolt

• Turn the steering wheel to give yourself more room (left for right side work, right for left side work).
• Remove the lower caliper slide pin bolt using a 14mm socket and ratchet.
• Pivot the caliper upward off the pads.

Step 3: Support the caliper safely

• Hang the caliper from the strut spring using a bungee cord.
• Make sure the brake hose is not stretched or twisted.

Step 4: Remove the old pads and hardware

• Slide the old pads out by hand; if they’re stuck, gently help them with a flat-blade screwdriver.
• Remove the old pad clips (hardware) from the caliper bracket.
• Spray the bracket pad lands with brake parts cleaner spray and scrub with a wire brush.
• Clean metal contact points prevent pad sticking.

Step 5: Compress the caliper piston

• Check the brake fluid reservoir level first; if it’s near MAX, be ready for it to rise.
• Place an old pad against the piston face, then slowly compress the piston using a C-clamp (6" minimum).
• A C-clamp is a screw clamp that pushes the piston straight back into the caliper.
• Stop when the piston is fully seated and the new thicker pads will fit.

Step 6: Install new hardware and grease the contact points

• Install the new pad clips from the front pad hardware kit onto the bracket.
• Apply a very thin film of high-temp silicone brake grease where the pad ears touch the clips (metal-to-metal contact points only).
• Do not get grease on pad friction material or the rotor.

Step 7: Install the new pads

• Slide the new pads into the bracket by hand.
• If one pad has a wear indicator (small metal “squealer”), install it in the same position the old one came from.

Step 8: Reinstall the caliper

• Pivot the caliper back down over the new pads.
• Install the lower slide pin bolt using a 14mm socket and torque wrench.
• Torque to the OEM specification for your Outback’s front caliper slide pin bolt.

Step 9: Repeat on the other front wheel

• Repeat Steps 2–8 on the other side.
• Try to do both sides before pressing the brake pedal.

Step 10: Reinstall wheels and torque lug nuts

• Reinstall both wheels using a 19mm socket.
• Lower the vehicle off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern with a torque wrench.
• Torque to 120 N·m (88 ft-lbs)

Step 11: Restore pedal feel and check fluid level

• With the engine OFF, pump the brake pedal slowly 10–15 times until it feels firm.
• Check the brake fluid reservoir and top up only if needed using brake fluid (DOT 3).
• Clean any spilled fluid immediately.

---

✅ After Repair

• Start the engine and confirm the brake pedal stays firm.
• Do a low-speed test in a safe area: gentle stops first, then normal stops.
• Listen for grinding (not normal) and light rubbing (can be normal initially).
• If you installed new pads on old rotors, perform a gentle break-in: 6–10 moderate stops from 40–15 km/h with cool-down driving between stops.
• Recheck brake fluid level after the test drive.

---
