1500 Classic - Front Brake Pad Replacement 🛠️

Got it—you want to replace the front brake pads on your 2020 1500 Classic SLT 4WD. I’ll walk you through it step by step.

Two quick questions before we start:

• 🧰 Do you have a floor jack and a pair of jack stands? (A floor jack lifts the truck; jack stands safely hold it up.)
• 🧱 Are you planning to replace pads only, or pads and rotors? (Rotors are the big round discs the pads clamp onto.)

I'll assume for now: front pads only, stock single-piston front calipers, and that you have basic tools. If that’s wrong, tell me and I’ll adjust.

Tools & Supplies Needed 🔧

• 🧰 Floor jack (rated for a full-size truck)
• 🧰 Jack stands (at least 2, rated for truck weight)
• 🧰 Wheel chocks (blocks to stop the truck from rolling; wood blocks work in a pinch)
• 🧰 Lug wrench or 21 mm socket + breaker bar/ratchet (for wheel nuts)
• 🧰 Socket set including:
  • 13 mm (typical front caliper slide pin bolts on this truck)
  • 21 mm (for caliper bracket bolts if you remove the bracket / rotor)
• 🧰 Torque wrench (tool that lets you tighten bolts to a specific spec)
• 🧰 C-clamp or disc brake piston tool (to push the caliper piston back)
• 🧰 Flat screwdriver or small pry bar (to help move the caliper)
• 🧰 Wire brush (to clean rust from pad abutment areas)
• 🧰 Brake cleaner spray (for cleaning parts; do not use on paint)
• 🧰 High-temp brake grease (for slide pins and pad contact points)
• 🧰 Shop rags or paper towels
• 🧰 Bungee cord or wire (to hang the caliper so it doesn’t hang by the hose)
• 🧰 New front brake pads (for your 2020 1500 Classic 4WD)
• 🧰 Optional: New pad hardware kit (stainless clips the pads sit in—highly recommended)
• 🧰 Safety gear: gloves, safety glasses, and a dust mask (brake dust is nasty)

Key Torque Specs 🔩

• 🔧 Front caliper slide pin bolts: ~26 ft-lb (35 N·m)
• 🔧 Front caliper bracket bolts: ~130 ft-lb (176 N·m)
• 🔧 Front wheel lug nuts: 130 ft-lb (176 N·m)

These values are typical for your truck’s platform; if you have a factory service manual, use its numbers.

Safety First ⚠️

• ⚠️ Work on a flat, solid surface, not dirt or a slope.
• ⚠️ Always support the truck with jack stands, never just the jack.
• ⚠️ Keep the truck in Park with the parking brake set and rear wheels chocked.
• ⚠️ Do one side at a time so you can look at the other side as a reference.

Prep Steps 🚗

• 🧱 1. Loosen front lug nuts slightly
  • With the truck on the ground, use the lug wrench or 21 mm socket to crack each front lug nut loose about 1/2 turn.
• 🧱 2. Chock rear wheels
  • Place wheel chocks behind and in front of at least one rear wheel.
• 🧱 3. Jack up the front
  • Place the floor jack under the front crossmember (strong metal beam under the front).
  • Lift until both front wheels are off the ground.
• 🧱 4. Set jack stands
  • Place jack stands under the frame rails behind each front wheel.
  • Lower the truck gently onto the stands and leave the jack as a backup if possible.
• 🧱 5. Remove front wheels
  • Remove the loosened lug nuts and take off both front wheels.

Remove Old Front Pads (One Side at a Time) 🧲

• 🛠️ 6. Turn the steering
  • Turn the steering wheel so the side you’re working on points outward; this gives more room.
• 🛠️ 7. Inspect the caliper

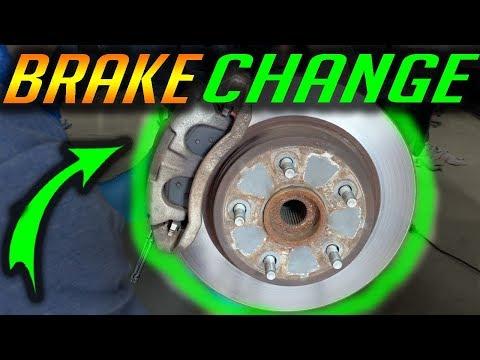

  • You’ll see the caliper (clamp), the bracket behind it, and the rotor (disc).
• 🛠️ 8. Remove caliper slide pin bolts
  • On the back of the caliper, remove the two slide pin bolts with the 13 mm socket.
  • Note their position; some trucks use upper/lower-specific pins.
• 🛠️ 9. Lift off the caliper
  • Gently pry the caliper away from the rotor with a flat screwdriver if it’s stuck.
  • Do not let it hang by the rubber brake hose—hang it with a bungee or wire from the spring.
• 🛠️ 10. Remove old pads
  • Slide the old pads out of the bracket. Note which side had the wear sensor tab (if your pads have one).
• 🛠️ 11. Remove pad hardware (clips)
  • Use a flat screwdriver to pop the old stainless clips out of the caliper bracket.

Clean & Prep Hardware 🧼

• 🧽 12. Clean bracket and rotor
  • Spray brake cleaner on the caliper bracket and rotor surface; wipe with a rag.
  • Use a wire brush on the areas where the clips sit to remove rust.
• 🧽 13. Install new hardware clips
  • Press the new stainless clips into the bracket until they snap in fully.
• 🧽 14. Service slide pins
  • Pull the slide pins out of the rubber boots one at a time.
  • Wipe off old grease and dirt.
  • Apply a thin coat of high-temp brake grease to the pins and reinstall them, making sure they move smoothly.

Compress Caliper Piston 🔄

• 🧴 15. Check brake fluid level
  • Open the hood and locate the brake fluid reservoir on the driver’s side near the firewall.
  • If it’s very full, remove a little with a clean syringe or turkey baster so it doesn’t overflow when you push the pistons back.
• 🧴 16. Compress the piston
  • Place an old brake pad against the piston in the caliper.
  • Use a C-clamp to slowly push the piston back into the caliper until it’s fully seated.
  • Go slowly to avoid damaging seals; watch the fluid level in the reservoir.

Install New Pads 🆕

• 🧩 17. Apply brake grease to pad contact points
  • Put a very thin layer of brake grease on the ears (metal ends) of the pads where they sit in the clips.
  • Do not get grease on the pad friction surface or rotor.
• 🧩 18. Install new pads in bracket
  • Slide the new pads into the clips on the bracket.
  • If one pad has a wear indicator tab, install it in the same position as the old one (usually inner pad).
• 🧩 19. Reinstall caliper over new pads
  • Position the caliper over the new pads and rotor.
  • Make sure the slide pin boots line up with the caliper holes.
• 🧩 20. Install and torque slide pin bolts
  • Install the slide pin bolts by hand first to avoid cross-threading.
  • Tighten with the 13 mm socket, then torque to about 26 ft-lb.

Repeat on the Other Side 🔁

• 🔁 21. Do the same steps on the other front wheel
  • Repeat steps 6–20 on the other side.

Reinstall Wheels & Final Checks ✅

• ✅ 22. Reinstall front wheels
  • Put the wheels back on and hand-thread all lug nuts.
• ✅ 23. Lower the truck
  • Jack the truck slightly to remove jack stands, then lower it fully to the ground.
• ✅ 24. Torque lug nuts
  • Use a torque wrench and 21 mm socket to tighten lug nuts in a star pattern to 130 ft-lb.
• ✅ 25. Pump the brake pedal
  • Before driving, sit in the truck and pump the brake pedal slowly until it feels firm. This seats the pads against the rotors.
• ✅ 26. Check brake fluid
  • Recheck the brake fluid level and adjust to the “MAX” line if needed.

Bed-In (Break-In) the New Pads 🛣️

• 🚦 27. Gentle driving first
  • For the first 200–300 km, avoid hard stops unless necessary.
• 🚦 28. Bedding procedure (if safe area available)
  • Do 5–6 medium stops from about 50–60 km/h down to 10–15 km/h, letting the brakes cool a bit between each.
  • Then drive a few km without heavy braking to cool them down.

Infotainment / Settings 📱

Your 1500 Classic doesn’t require any special infotainment or scan-tool steps for front pad replacement. Just clear any brake warning messages if they were on (they should go away once the system sees normal pressure and pad thickness).

What Shops Would Charge 💵

A shop in your area would typically charge around $250–$400 (USD equivalent) for front pads (labor + mid-grade pads). Doing it yourself saves a big chunk of that.

If you tell me whether you’re also replacing the rotors, I can add the extra steps and torque specs for the caliper bracket and rotor set screw (if equipped).
