🔧 Frontier - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers up, swap in new pads (and hardware), then reassemble and torque everything correctly. This restores stopping power and prevents grinding or rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and chock the rear wheels before lifting the truck.
• 🛑 Support the truck with jack stands; never rely on a floor jack alone.
• 🛑 Do not let the caliper hang by the brake hose; it can damage the hose.
• 🛑 Brake dust is irritating—wear a mask and use brake cleaner, not compressed air.
• 🛑 Keep brake fluid off paint; it can damage finishes.
• 🛑 No battery disconnect is required for this front brake pad job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20–200 ft-lbs range)
• 14mm socket
• 19mm socket
• Ratchet (1/2")
• Ratchet (3/8")
• Flathead screwdriver
• C-clamp (6" minimum)
• Caliper hanger hook (specialty)
• Wire brush
• Needle-nose pliers
• Disposable gloves (nitrile)
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (clips/shims) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 2 cans
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, leave the truck in gear, and set the parking brake.
• Place wheel chocks behind both rear tires.
• Crack the front lug nuts loose before lifting (about 1/2 turn).
• Open the hood and check the brake fluid reservoir level; it may rise when you compress the caliper pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a 21mm socket and breaker bar to loosen the front lug nuts 1/2 turn.
• Lift the front with a floor jack (rated 3-ton minimum) at the front jacking point.
• Set the frame onto jack stands (rated 3-ton minimum), then gently lower the truck onto them.
• Remove the wheels using the 21mm socket.

Step 2: Locate the caliper and remove the caliper bolts

• Turn the steering so you can see the back of the caliper more easily.
• Use a 14mm socket and ratchet (3/8") to remove the two caliper slide pin bolts (upper and lower).
• Carefully lift/swing the caliper up and off the bracket.
• Hang the caliper with a caliper hanger hook (specialty) (this is a strong hook that supports the caliper so the hose isn’t stressed).

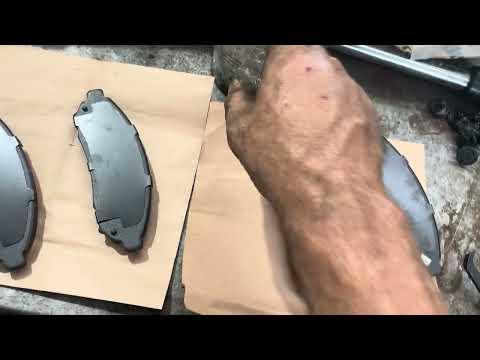

Step 3: Remove old pads and hardware

• Pull the old inner and outer pads out of the bracket by hand. If they’re stuck, gently pry with a flathead screwdriver.
• Remove the pad clips/shims (hardware) from the bracket. Use needle-nose pliers if needed.
• Spray the bracket pad ledges with brake cleaner and scrub with a wire brush until clean.

Step 4: Compress the caliper piston

• Check the brake fluid reservoir under the hood before compressing; if it’s near “MAX,” remove a little with a clean rag to prevent overflow.
• Use a C-clamp (6" minimum) to slowly push the caliper piston back in. Go slow so fluid moves back smoothly.
• Slow compression helps avoid messy overflow.

Step 5: Install new pad hardware and pads

• Install the new clips/shims from the front brake pad hardware kit into the bracket.
• Apply a thin film of brake caliper grease (silicone) where the pad “ears” touch the clips (metal-to-metal contact points only).
• Slide the new pads into place (inner pad on the inside, outer pad on the outside).
• If your pads include a wear indicator, it typically goes on the inner pad (position may vary by pad design).

Step 6: Reinstall the caliper

• Lower the caliper over the new pads.
• Install the caliper slide pin bolts by hand first to prevent cross-threading.
• Tighten using a 14mm socket and torque wrench (a torque wrench measures exact tightness). Torque to 34 Nm (25 ft-lbs).
• Make sure the brake hose is not twisted and the caliper sits square.

Step 7: Repeat on the other front wheel

• Repeat Steps 2–6 on the other side using the same 14mm socket, C-clamp, and torque wrench.
• Always replace pads on both sides.

Step 8: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread lug nuts.
• Lower the truck off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a 21mm socket and torque wrench: Torque to 133 Nm (98 ft-lbs).

Step 9: Pump the brake pedal and top off fluid

• Before moving the truck, press the brake pedal firmly 10–15 times until it feels normal (this seats the pads against the rotor).
• Check the reservoir and add DOT 3 brake fluid only if needed (do not overfill).

---

✅ After Repair

• With the engine running, confirm the brake pedal feels firm and consistent.
• Do a slow test stop in a safe area; listen for grinding and confirm straight braking.
• Pad bedding (recommended): make 6–10 medium stops from ~30 mph down to ~5 mph, allowing a little cooling between stops.
• Recheck brake fluid level after the test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
