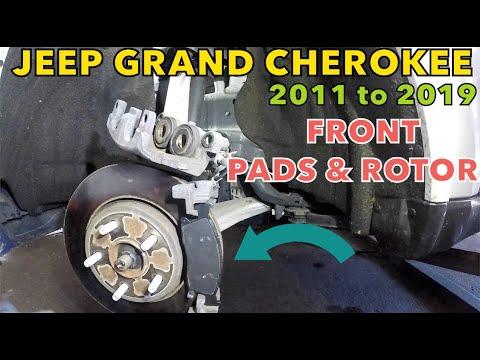

🔧 Grand Cherokee - Front Brake Pad Replacement

You’ll be removing the front wheels, unbolting the front brake calipers, swapping the pads, and reassembling with everything torqued correctly. This will restore braking performance and prevent damage to the rotors if your pads are worn.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the Grand Cherokee on jack stands; never rely on a floor jack alone.
• ⚠️ Work on a flat, solid surface and keep the transmission in Park with the parking brake engaged.
• ⚠️ Do not press the brake pedal while a caliper is removed; it can push the piston out.
• ⚠️ Brake dust can be harmful; avoid blowing it with air and use brake cleaner instead.
• ⚠️ The front brakes can get very hot after driving; let them cool before starting.
• ⚠️ Keep brake fluid off paint; it can damage painted surfaces. Wipe spills immediately.
• ⚠️ Battery disconnection is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ 21mm lug wrench or 21mm socket
• 🛠️ Breaker bar (1/2" drive)
• 🛠️ 13mm socket
• 🛠️ 21mm socket
• 🛠️ Ratchet (3/8" drive)
• 🛠️ Ratchet (1/2" drive)
• 🛠️ Torque wrench (3/8" or 1/2" drive, up to 150 ft-lbs)
• 🛠️ C-clamp (6" or larger)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Bungee cord or brake caliper hanger (specialty)
• 🛠️ Wire brush (steel)
• 🛠️ Shop rags
• 🛠️ Disposable gloves
• 🛠️ Safety glasses
• 🛠️ Small catch pan

A torque wrench is a tool that tightens bolts to an exact strength.

A C-clamp is a simple press that can push the caliper piston back.

A brake caliper hanger holds the caliper so the hose is not strained.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front brake pad set - Qty: 1 set (both front wheels, replace in pairs)
• 🔩 Front brake pad hardware kit (anti-rattle clips / abutment clips) - Qty: 1 set
• 🔩 High-temperature brake grease - Qty: 1 small tube
• 🔩 Brake cleaner spray (non-chlorinated) - Qty: 1–2 cans
• 🔩 Shop towels or paper towels - Qty: as needed
• 🔩 Anti-seize compound - Qty: small amount (for wheel hub center, optional)

Brake cleaner is a spray that removes oil and dust and dries quickly.

---

📋 Before You Begin

• Park the Grand Cherokee on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels to prevent any movement.
• Open the hood and locate the brake fluid reservoir on the driver side near the firewall. Remove the cap and set it loosely back on top (do not fully seal it) to allow fluid to move when you compress the pistons.
• Gather all tools and parts so you don’t have to crawl in and out during the job.
• If the front rotors are heavily grooved, cracked, or below minimum thickness, plan to replace them as well.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen front wheel lug nuts

• With the Grand Cherokee still on the ground, use the 21mm lug wrench or 21mm socket and a breaker bar to loosen each front wheel lug nut about one turn. Do not remove them yet.
• Loosening on the ground stops the wheel from spinning.

Step 2: Lift and support the front of the Grand Cherokee

• Position the floor jack under the front jacking point (center crossmember or recommended point in the owner’s manual) and raise the vehicle until both front wheels are off the ground.
• Place jack stands under the proper support points on each side (front frame rails or pinch welds as specified) and slowly lower the vehicle onto the stands using the floor jack.
• Give the Grand Cherokee a gentle shake at the front to confirm it is stable.
• Never work under a car supported only by a jack.

Step 3: Remove the front wheels

• Use the 21mm socket and ratchet or breaker bar to fully remove the front lug nuts.
• Remove both front wheels and set them aside where they won’t roll away.

Step 4: Inspect the front brake setup

• Look at the front brake assembly: you’ll see the rotor (big metal disc) and the caliper (clamp) over it.
• Note the small metal clips where the pads slide in; these are the pad hardware and will be replaced.

Step 5: Remove the front caliper guide pin bolts

• On the back side of the caliper, locate the two smaller guide pin bolts (upper and lower).
• Use a 13mm socket and ratchet to loosen and remove both guide pin bolts.
• Set the bolts aside in a safe place.

Step 6: Remove and support the caliper

• Gently pry the caliper away from the rotor using a flathead screwdriver if needed.
• Lift the caliper off the pads and rotor and hang it from the suspension spring using a bungee cord or brake caliper hanger.
• Make sure there is no tension on the rubber brake hose.
• Never let the caliper hang by the hose alone.

Step 7: Remove the old brake pads and hardware

• Slide the inner and outer pads out of the caliper bracket by hand. If they are stuck, use the flathead screwdriver to carefully pry them out.
• Remove the old metal hardware clips from the caliper bracket; they usually pull off by hand or with the flathead screwdriver.

Step 8: (Optional but recommended) Remove caliper bracket and clean thoroughly

• Locate the two large caliper bracket bolts at the back of the knuckle.
• Use a 21mm socket and breaker bar to remove these bolts and take off the caliper bracket.
• Use the wire brush to clean the areas where the hardware clips sit and the sliding surfaces for the pads.
• Clean with brake cleaner spray and wipe with shop rags.
• Reinstall the caliper bracket using the 21mm socket and torque wrench, and tighten the bracket bolts to 176 Nm (130 ft-lbs).
• Cleaning prevents new pads from sticking later.

Step 9: Install new pad hardware

• Clip the new hardware pieces from the front brake pad hardware kit into the caliper bracket where the pads will slide.
• Make sure each clip is fully seated and not bent.

Step 10: Apply brake grease to hardware

• Apply a very thin layer of high-temperature brake grease to the surfaces of the hardware where the pads will contact and slide.
• Do not get grease on the rotor or friction surface of the pads.
• Use just a thin film, not big blobs.

Step 11: Compress the caliper piston

• Remove the caliper from the hanger and hold it so you can see the piston (round part that presses the inner pad).
• Place an old brake pad against the piston, then position the C-clamp over the back of the caliper body and the old pad.
• Slowly tighten the C-clamp to push the piston back into the caliper until it is almost flush with the caliper housing.
• Watch the brake fluid reservoir under the hood to make sure it does not overflow; if it rises too high, use the small catch pan and a clean rag to remove a little fluid.
• Slow steady pressure avoids damaging the piston seals.

Step 12: Install new front brake pads

• Check your new pads: one is usually “inner” (with a clip or spring) and one is “outer.” Match them to how the old pads were installed.
• Slide the new outer pad into the outer side of the caliper bracket, making sure it sits fully in the hardware clips.
• Slide the new inner pad into the inner side of the bracket.
• Ensure both pads move freely back and forth in the clips.

Step 13: Reinstall the caliper over new pads

• Position the caliper over the new pads and rotor, lining up the guide pin holes with the caliper bracket.
• If the caliper does not fit over the pads, the piston may need to be compressed a bit more with the C-clamp.
• Reinstall the upper and lower guide pin bolts by hand first to avoid cross-threading.
• Use the 13mm socket and ratchet to tighten both guide pin bolts, then use a torque wrench with the 13mm socket to torque them to 44 Nm (32 ft-lbs).

Step 14: Repeat for the other front side

• Perform the same steps (5 through 13) on the other front wheel.
• Always replace pads on both sides of the axle.

Step 15: Final cleaning and rotor/wheel prep

• Spray the rotors (braking surfaces only) lightly with brake cleaner and wipe with a shop rag to remove fingerprints or grease.
• If desired, apply a very small amount of anti-seize compound to the center hub where the wheel contacts (avoid studs and rotor surface).

Step 16: Reinstall front wheels

• Reinstall the front wheels onto the hubs and hand-thread all 21mm lug nuts to avoid cross-threading.
• Use the 21mm socket and ratchet to snug the nuts in a star pattern while the vehicle is still on jack stands (do not fully torque yet).

Step 17: Lower the Grand Cherokee and torque lug nuts

• Use the floor jack to lift the vehicle slightly off the jack stands, remove the stands, then lower the Grand Cherokee fully to the ground.
• Use a torque wrench with a 21mm socket to tighten the lug nuts in a star pattern to 149 Nm (110 ft-lbs).

Step 18: Pump the brake pedal and check fluid

• With the engine off, sit in the driver’s seat and slowly pump the brake pedal several times until it becomes firm. This seats the pads against the rotors.
• Check the brake fluid level in the reservoir and adjust if necessary so it is between the MIN and MAX marks. Reinstall the cap securely.

---

✅ After Repair

• Start the engine and gently press the brake pedal; it should feel firm and consistent.
• Check around both front calipers for any leaks or unusual noises while slowly driving forward and braking in your driveway.
• Perform a short test drive at low speed (20–40 km/h), making several gentle stops to ensure the brakes feel normal.
• Bed-in the new pads: make 5–10 medium stops from 40–50 km/h down to 10 km/h, allowing some driving time between stops so the brakes can cool slightly. Avoid hard emergency-type stops unless necessary for safety.
• After the test drive, recheck lug nut torque with the torque wrench and inspect for any unusual smells or noises.

---

💰 DIY vs Shop Cost

Shop Cost: $300–$500 (parts + labor)

DIY Cost: $80–$180 (parts only)

You Save: $120–$420 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.0–1.5 hours.

---
