🔧 Santa Fe XL - Front Brake Pad Replacement

You’ll remove the front caliper, swap the old pads for new ones, and compress the caliper piston so everything fits back together. This restores safe stopping power and prevents pad-to-rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Santa Fe XL on jack stands—never rely on a floor jack alone.
• ⚠️ Avoid breathing brake dust; use brake cleaner and wear a mask if you have one.
• ⚠️ Brake fluid can damage paint—wipe spills immediately and keep the cap on when not checking level.
• ⚠️ Don’t press the brake pedal while the caliper is off the rotor.
• ⚠️ No battery disconnect is required for this front brake pad job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-150 ft-lbs range)
• Ratchet (3/8" drive)
• 3/8" drive torque wrench (10-80 ft-lbs range)
• 14mm socket
• 17mm socket
• Flat-blade screwdriver
• C-clamp (6" minimum) or brake caliper piston compressor (specialty)
• Bungee cord
• Wire brush
• Brake parts cleaner
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper slide pin grease (high-temp silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir. You’ll be pushing fluid back when compressing the piston, so watch the fluid level.
• Break loose the front wheel lug nuts slightly before lifting (don’t remove them yet).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and raise the front

• Use a 21mm socket and breaker bar to loosen the lug nuts about 1/2 turn.
• Lift the front with a floor jack (rated 3-ton minimum) at the proper front jacking point, then support with jack stands (rated 3-ton minimum).
• Remove the lug nuts using a 21mm socket and remove the wheel.

Step 2: Locate the caliper and check pad/rotor condition

• Turn the steering to give yourself room (left side: turn wheel right; right side: turn wheel left).
• Visually inspect the rotor. If it’s deeply grooved or heavily rust-scaled, consider replacing rotors too.
• Spray the caliper/bracket area lightly with brake parts cleaner to reduce dust.

Step 3: Remove the caliper (do not let it hang)

• Remove the two caliper guide pin bolts using a 14mm socket and ratchet (3/8" drive).
• Lift the caliper off the bracket. If it’s tight, gently pry with a flat-blade screwdriver.
• Hang the caliper from the suspension spring/strut using a bungee cord. Never hang by the hose.
• Guide pin (slide) bolts: Torque to 25-30 Nm (18-22 ft-lbs)

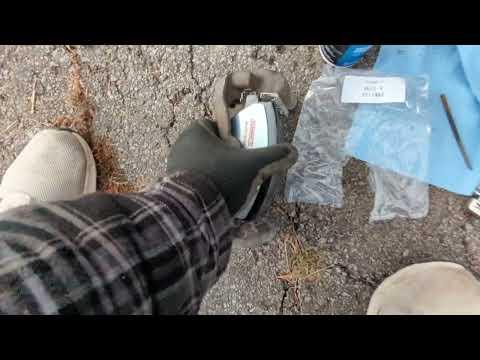

Step 4: Remove old pads and hardware

• Pull the old pads out of the bracket by hand.
• Remove the stainless pad clips (abutment clips) from the bracket.
• Clean the pad “landing areas” on the bracket using a wire brush and brake parts cleaner until smooth.

Step 5: Remove the caliper bracket (if needed for hardware access)

• If your hardware kit requires it (or for better cleaning), remove the bracket bolts using a 17mm socket and breaker bar.
• Bracket bolts: Torque to 78-98 Nm (58-72 ft-lbs)

Step 6: Compress the caliper piston

• Before compressing, check the brake fluid reservoir under the hood. If it’s near “MAX,” remove a little with a clean towel (don’t overflow).
• Use a C-clamp (6" minimum) or brake caliper piston compressor (specialty) to slowly push the piston straight back into the caliper.
• Go slowly and evenly. If it won’t compress smoothly, stop and inspect for binding or torn boot.
• Slow pressure prevents seal damage.

Step 7: Install new hardware and pads

• Install new abutment clips from the hardware kit onto the bracket by hand (they should snap/seat fully).
• Apply a thin film of brake caliper slide pin grease (high-temp silicone) to pad contact points on the clips (where the pad “ears” touch). Do not get grease on the pad friction surface.
• Install the new pads into the bracket. The pad with a wear indicator (if equipped) typically goes on the inside.

Step 8: Service the slide pins and reinstall the caliper

• Pull each slide pin out one at a time (from the bracket) and wipe clean with shop towels.
• Apply a light coat of brake caliper slide pin grease (high-temp silicone) and reinstall the pins.
• Reinstall the caliper over the new pads.
• Install and tighten the guide pin bolts using a 14mm socket and 3/8" drive torque wrench: Torque to 25-30 Nm (18-22 ft-lbs)

Step 9: Reinstall wheels and torque lug nuts

• Reinstall the wheel and hand-thread all lug nuts.
• Lower onto the ground enough that the tire just contacts and won’t spin.
• Torque lug nuts in a star pattern using a 21mm socket and 1/2" drive torque wrench: Torque to 88-108 Nm (65-80 ft-lbs)

Step 10: Restore pedal feel

• Before driving, pump the brake pedal slowly 10-15 times until it feels firm.
• Recheck brake fluid level at the reservoir and top off only if needed (use the correct brake fluid type shown on the reservoir cap).

---

✅ After Repair

• With the engine on, hold the brake pedal for 15 seconds to confirm it stays firm (no sinking).
• Do a low-speed test in a safe area: 5-15 mph stops first, then gradually normal braking.
• Bed-in (break-in) the pads: do 6-10 moderate stops from ~35 mph down to ~5 mph, allowing 30-60 seconds between stops for cooling.
• Recheck lug nut torque after 25-50 km of driving using a 21mm socket and 1/2" drive torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: ₹7,000-₹14,000 (parts + labor)

DIY Cost: ₹3,000-₹7,500 (parts only)

You Save: ₹4,000-₹6,500 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
