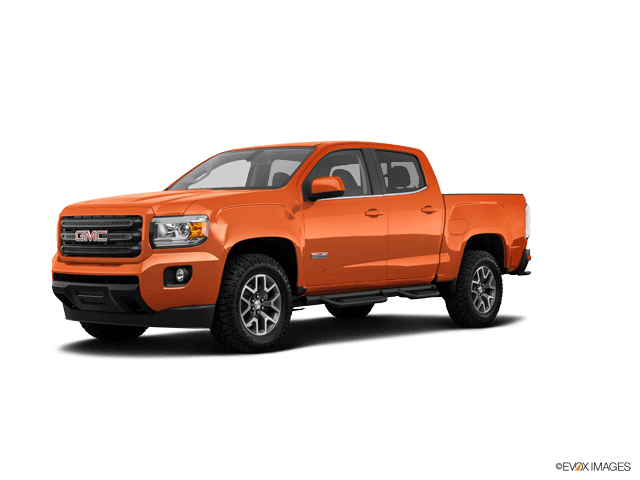

🔧 Canyon - Front Brake Pad Replacement

You’ll remove the front calipers, swap the old pads for new ones, and push the caliper pistons back so everything fits. This restores braking performance and prevents metal-to-metal grinding that can ruin rotors.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• Work on level ground and support your Canyon with jack stands before removing any wheels.
• Do not press the brake pedal while a caliper is off the rotor (the piston can pop out).
• Avoid breathing brake dust; use brake cleaner, not compressed air.
• Brake parts get hot—let everything cool before starting.
• Battery disconnect is not required for front pads on your Canyon.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum, pair)
• Wheel chocks (pair)
• 22mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20–250 ft-lbs range)
• 13mm socket
• 18mm socket
• Flathead screwdriver
• C-clamp (6" minimum)
• Bungee cord
• Wire brush
• Brake parts cleaner
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Brake caliper slide pin grease (high-temp silicone) - Qty: 1
• Medium-strength threadlocker (blue) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Loosen the front lug nuts slightly before lifting (do not remove them yet).
• Turn the steering wheel to give yourself room (turn left to work on the right side, and vice versa).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack to lift the front of your Canyon at the proper front jacking point.
• Place jack stands under the frame and lower the truck onto them with the floor jack.
• Confirm stability by gently rocking the truck before you work.

Step 2: Remove the front wheel

• Remove the lug nuts using a 22mm socket and breaker bar, then remove the wheel.

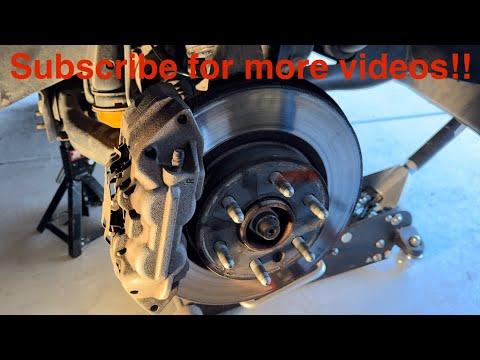

Step 3: Access the caliper and remove the caliper bolts

• Locate the two caliper slide pin bolts on the back side of the caliper.
• Remove the bolts using a 13mm socket and 3/8" drive ratchet.
• Lift the caliper off the bracket. If it’s tight, gently pry with a flathead screwdriver against the old pad backing plate. Pry slowly; don’t damage the boot.
• Hang the caliper from the suspension with a bungee cord (do not let it hang by the brake hose).

Step 4: Remove the old pads and inspect

• Slide the old pads out of the bracket by hand.
• Spray the bracket/pad contact areas with brake parts cleaner.
• Clean rust from the pad “lands” (where pads slide) using a wire brush.
• Quick check: If the rotor is deeply grooved or heavily rust-lipped, consider replacing or resurfacing it.

Step 5: Compress the caliper piston

• Remove the brake master cylinder cap under the hood (set it loosely on top) so fluid can move back.
• Place one old pad against the piston face, then use a C-clamp to slowly press the piston fully back into the caliper.
• Watch the brake fluid level as you compress—remove excess if it gets too high.
• A “C-clamp” is a screw clamp that presses the piston back evenly.

Step 6: Service the slide pins

• Pull the caliper slide pins out (they’re the smooth pins the caliper rides on).
• Wipe them clean, then apply a thin coat of brake caliper slide pin grease (high-temp silicone).
• Reinsert the slide pins and make sure the rubber boots are seated.

Step 7: Install the new pads

• Install any new pad hardware/clips that came with the pad set (if included).
• Apply a very thin film of brake caliper slide pin grease (high-temp silicone) only on the pad contact points where the pads slide in the bracket (not on pad friction material).
• Slide the new pads into place (inner and outer).

Step 8: Reinstall the caliper and torque fasteners

• Set the caliper back over the new pads.
• Reinstall the caliper slide pin bolts using a 13mm socket and 3/8" drive ratchet.
• Torque to 35 Nm (26 ft-lbs) using a torque wrench.

Step 9: If you removed the caliper bracket (only if needed)

• If you removed the bracket for cleaning or rotor replacement, reinstall the bracket bolts using an 18mm socket and breaker bar.
• Apply medium-strength threadlocker (blue) to clean bolt threads.
• Torque to 200 Nm (148 ft-lbs) using a torque wrench.

Step 10: Reinstall the wheel and torque lug nuts

• Put the wheel back on and hand-thread the lug nuts.
• Lower the truck until the tire just touches the ground, then snug the lugs in a star pattern using a 22mm socket.
• Fully lower the truck and torque the lug nuts in a star pattern.
• Torque to 190 Nm (140 ft-lbs) using a torque wrench.

Step 11: Repeat on the other front side

• Repeat Steps 2–10 for the other front wheel.

---

✅ After Repair

• With the engine OFF, pump the brake pedal slowly 10–15 times until it feels firm (this seats the pistons to the new pads).
• Check the brake fluid level and reinstall the master cylinder cap.
• Start the engine and confirm the pedal feels normal, then test brakes at low speed in a safe area.
• Pad break-in (recommended): do 6–10 moderate stops from ~30 mph to ~5 mph, with cool-down driving between stops. Avoid hard stops for 200 miles.
• Listen for grinding/squeal and re-check lug nut torque after 25–50 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $70-$390 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
