🔧 Ranger - Front Brake Pad Replacement

You’ll be removing the front brake calipers, swapping in new pads, and then reassembling everything with the correct torque. Worn pads reduce stopping power and can damage the rotors if they get too thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🛑 Support your Ranger on jack stands—never rely on a floor jack alone.
• 🧯 Brakes get hot—work on a cool front end and wear mechanic gloves.
• 🧼 Avoid breathing brake dust; use brake cleaner (no compressed air).
• 🚫 Do not press the brake pedal with a caliper removed.
• 🔋 Battery disconnect is not required for front pads on your Ranger.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• Breaker bar
• Torque wrench (20–200 ft-lbs range)
• 13mm socket
• 15mm socket
• Ratchet (3/8" drive)
• Flat-blade screwdriver
• C-clamp (6" or larger)
• Bungee cord
• Brake cleaner spray
• Wire brush
• Catch pan
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (clips/shims) - Qty: 1
• High-temperature silicone brake grease - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and locate the brake fluid reservoir. Leave the cap on for now.
• “Caliper” is the clamp that squeezes the rotor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front lug nuts

• Use a 21mm socket with a breaker bar to loosen the lug nuts about 1 turn while the tire is still on the ground.

Step 2: Lift and secure the front end

• Use the floor jack (rated 3-ton minimum) to lift the front of your Ranger at the proper jacking point.
• Set the truck onto jack stands (rated 3-ton minimum) and give it a gentle shake test.

Step 3: Remove the front wheels

• Remove the lug nuts using the 21mm socket and ratchet, then remove the wheels.

Step 4: Remove the caliper guide pin bolts

• Turn the steering wheel for better access (left for right side, right for left side).
• Locate the two caliper guide pin bolts on the back of the caliper.
• Use a 13mm socket and ratchet to remove both guide pin bolts.
• Guide pins are the caliper’s sliding bolts.

Step 5: Remove and support the caliper

• Use a flat-blade screwdriver to gently pry the caliper outward just enough to free it.
• Lift the caliper off the bracket.
• Hang the caliper from the suspension using a bungee cord (do not let it hang by the brake hose).

Step 6: Remove old pads and hardware

• Slide the brake pads out of the bracket by hand.
• Remove the pad clips/hardware from the bracket.
• Clean the bracket pad lands (where the clips sit) using brake cleaner spray and a wire brush.
• Use a catch pan under the area to catch runoff.

Step 7: Compress the caliper piston

• Check the brake fluid reservoir under the hood; if it’s near MAX, be ready for it to rise.
• Place one of the old pads against the piston face.
• Use a C-clamp (6" or larger) to slowly compress the piston until it bottoms out.
• If the reservoir starts to overflow, stop and remove a little fluid safely (keep it off paint).

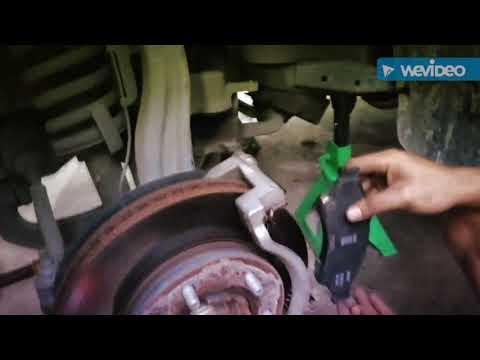

Step 8: Install new hardware and pads

• Install the new clips from the front brake pad hardware kit into the bracket.
• Apply a thin film of high-temperature silicone brake grease where the pad ears contact the clips.
• Slide the new pads into the bracket in the same orientation as removed.
• Grease pad contact points, not pad friction.

Step 9: Reinstall the caliper

• Lower the caliper over the new pads.
• Reinstall the guide pin bolts using the 13mm socket and ratchet.
• Final-tighten using a torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 10: Repeat on the other front wheel

• Repeat Steps 4–9 on the opposite side.
• Always replace front pads as a pair.

Step 11: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the truck to the ground using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern using a torque wrench: Torque to 150 Nm (111 ft-lbs).

---

✅ After Repair

• Pump the brake pedal slowly 8–12 times until it feels firm (this seats the pads against the rotor).
• Check brake fluid level and top off only if needed.
• Test drive at low speed first. Confirm no pulling, grinding, or warning lights.
• Pad break-in: make 6–10 moderate stops from 35–10 mph, with cool-down between stops.

---

💰 DIY vs Shop Cost

Shop Cost: ₹9,000-₹18,000 (parts + labor)

DIY Cost: ₹3,500-₹9,000 (parts only)

You Save: ₹5,500-₹9,000 by doing it yourself!

Shop labor rates vary but typically run ₹2,000-₹4,000/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
