🔧 Jetta - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front calipers out of the way, compress the caliper pistons, and install new pads. This restores braking performance and prevents pad-to-metal grinding that can damage your rotors.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a level surface and support your Jetta on jack stands before going under or pulling wheels.
• 🧤 Brake dust is harmful—wear a dust mask and avoid blowing dust with compressed air.
• 🔥 Brakes can be very hot—let everything cool before touching calipers/rotors.
• 🧪 Brake fluid can overflow when you push pistons back—keep the reservoir cap loose and watch the level.
• 🧷 Never let the caliper hang by the brake hose—support it with a hook/strap.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 13mm socket
• 15mm open-end wrench
• 3/8" ratchet
• Breaker bar (1/2")
• Torque wrench (20–200 Nm range)
• Flathead screwdriver

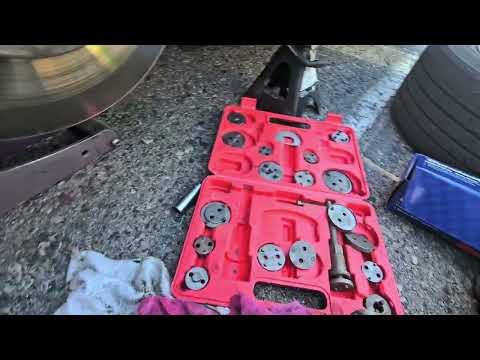

• C-clamp (6")
• Bungee cord
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake hardware/abutment clip kit - Qty: 1
• Brake caliper slide pin boots (if damaged) - Qty: 1
• Brake lubricant (silicone or ceramic) - Qty: 1
• Brake cleaner - Qty: 1
• Brake fluid (DOT 4) - Qty: 1 bottle

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🔒 Chock the rear wheels using wheel chocks.
• 🧴 Open the hood and loosen the brake fluid reservoir cap (leave it sitting on top).
• 🧼 Turn the steering wheel fully to the side you’re working on to create more room at the caliper.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen wheel bolts and lift the front

• Use a 17mm socket and breaker bar (1/2") to loosen the front wheel bolts about 1/2 turn while the car is on the ground.
• Lift the front using a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Remove the wheel bolts using a 17mm socket and take the wheels off.

Step 2: Access the caliper and remove the slide pin bolts

• Turn the steering wheel so the caliper you’re working on faces outward for better access.
• Use a flathead screwdriver to carefully pry the outer anti-rattle spring off the front of the caliper (hold it so it doesn’t fly). Keep your face clear.
• On the back of the caliper, use a 13mm socket to loosen the two caliper slide pin bolts while holding the pin flats with a 15mm open-end wrench.
• Remove both slide pin bolts using the 13mm socket.

Step 3: Swing the caliper up and support it

• Lift the caliper off the bracket (it may need a gentle wiggle).
• Support the caliper with a bungee cord so there is no strain on the brake hose.

Step 4: Remove old pads and hardware

• Pull the inner and outer pads out by hand from the bracket.
• If your new pads include new abutment clips, remove the old clips from the bracket.
• Use a wire brush and brake cleaner spray to clean pad contact points on the bracket where the clips sit. Clean metal helps prevent sticking.

Step 5: Compress the caliper piston

• Place one old brake pad against the piston face (as a buffer).
• Use a C-clamp (6") to slowly compress the piston until it bottoms out.
• Watch the brake fluid reservoir while compressing; remove excess fluid if it gets too high (do not spill on paint).

Step 6: Lubricate correctly and install new hardware

• Install the new abutment clips onto the bracket by hand.
• Apply a thin film of brake lubricant (silicone or ceramic) to the pad “ears” where they slide in the clips.
• Do not get lubricant on the pad friction material or rotor surface.

Step 7: Install new pads and reinstall caliper

• Install the new inner and outer pads into the bracket (they should slide freely).
• Lower the caliper back over the pads.
• Install the two caliper slide pin bolts by hand first to avoid cross-threading, then tighten using a 13mm socket while holding with a 15mm open-end wrench.
• Torque to 35 Nm (26 ft-lbs) using a torque wrench (20–200 Nm range).
• Reinstall the caliper anti-rattle spring using a flathead screwdriver.

Step 8: Reinstall wheels

• Reinstall the wheels and hand-thread the wheel bolts.
• Lower the car off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten wheel bolts in a star pattern using a 17mm socket and torque wrench (20–200 Nm range).
• Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• 🦶 Before driving, pump the brake pedal 10–15 times until it feels firm (this seats the pistons against the new pads).
• 🧴 Check brake fluid level and top off with DOT 4 if needed, then reinstall the reservoir cap snugly.
• 👂 Do a slow test drive and listen for grinding or pulling.
• 🛣️ Pad break-in: make 8–10 moderate stops from ~30 mph to ~5 mph, allowing 30–60 seconds between stops to cool.
• 🔎 Recheck wheel bolt torque after 25–50 miles using a torque wrench (20–200 Nm range).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$160 (parts only)

You Save: $190-$290 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
