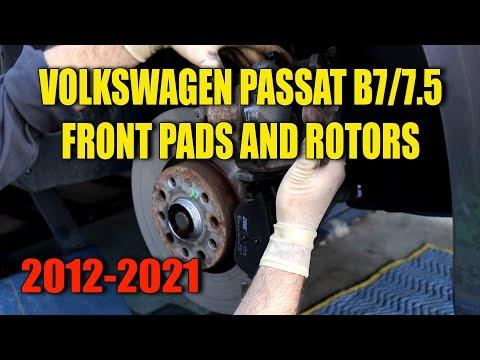

🔧 Passat - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers out of the way, compress the pistons, and install new pads with fresh hardware. The only “gotcha” is Volkswagen uses different front caliper bolt styles depending on which front brake setup your Passat has, and torque specs change with it.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the car with jack stands before working under/near a wheel.
• ⚠️ Brake dust is harmful—wear a mask and avoid blowing it with compressed air.
• ⚠️ Don’t let the caliper hang by the brake hose—use a caliper hanger (a hook/strap that supports the caliper).
• ⚠️ Brake fluid can damage paint—wipe spills immediately.
• ⚠️ If the brake fluid reservoir is full, compressing pistons can overflow it—monitor the level.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 17mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 Nm range)
• 3/8" drive torque wrench (10-80 Nm range)
• Ratchet (3/8" drive)
• Socket set (13mm-21mm)
• 7mm hex bit socket
• Torx bit set (T45-T50)
• Flathead screwdriver
• Brake caliper piston compressor tool (specialty)
• Caliper hanger hook
• Wire brush
• Brake parts cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front pad hardware kit (abutment clips) - Qty: 1
• Brake caliper guide pin bolt set - Qty: 1
• Brake grease (silicone or ceramic) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Crack the front wheel bolts loose 1/4 turn using a 17mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; leave the cap on but be ready to check level during piston compression.
• Turn the steering wheel so the caliper you’re working on points outward (gives more room to work).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Identify your front caliper bolt style (important)

• Look behind the caliper at the two slide-pin bolts.
• If the head is an internal hex, you’ll use a 7mm hex bit socket.
• If the head is star-shaped, you’ll use a Torx bit (T45-T50).
• Please reply with which you have (7mm hex or Torx), and if possible upload a clear photo of the back of the caliper. This lets me give you the exact torque specs for your brake setup.

Step 2: Lift and secure the front end

• Lift the front using a floor jack at the proper front lift point.
• Set the car down onto jack stands and give the car a gentle shake to confirm it’s stable.
• Remove the wheel bolts using a 17mm socket and remove the front wheels.

Step 3: Remove the caliper from the bracket

• Use a flathead screwdriver to carefully pry the outer spring clip off the front of the caliper (hold your hand over it so it doesn’t pop away). It can spring out fast.
• On the back of the caliper, remove the two slide-pin bolts using either the 7mm hex bit socket or Torx bit (T45-T50) (whichever matches your caliper).
• Lift the caliper off the bracket and support it with a caliper hanger hook (do not stress the brake hose).

Step 4: Remove old pads and hardware

• Pull the old inner and outer pads out by hand.
• Remove the stainless pad clips/abutment clips from the bracket using a flathead screwdriver.
• Clean the pad contact points on the bracket using a wire brush and brake parts cleaner spray, then wipe with shop towels.

Step 5: Compress the caliper piston

• Position the old inner pad against the piston face (this protects the piston).
• Use a brake caliper piston compressor tool (specialty) to slowly push the piston fully back into the caliper.
• Check the brake fluid reservoir level as you compress; if it approaches the MAX line, stop and remove a small amount (only if needed).

Step 6: Install new pad hardware and pads

• Install the new abutment clips onto the bracket by hand (they should snap/seat flat).
• Apply a very thin film of brake grease where the pad ears slide on the clips (do not get grease on pad friction material or rotor).
• Install the new pads into the bracket (inner pad typically clips into the piston on many VW calipers—press it in firmly if yours does).

Step 7: Reinstall the caliper and torque fasteners

• Place the caliper over the new pads.
• Install the slide-pin bolts by hand first, then tighten using the correct tool: 7mm hex bit socket or Torx bit (T45-T50).
• Torque spec note: I’ll provide the exact factory torque values as soon as you confirm whether your slide pins are 7mm hex or Torx (they differ by caliper setup). For now, do not “guess-tighten.”
• Reinstall the caliper spring clip using a flathead screwdriver (seat both ends fully).

Step 8: Reinstall wheels

• Reinstall the wheels and hand-thread all wheel bolts.
• Lower the car off the jack stands using the floor jack.
• Tighten wheel bolts in a star pattern using a torque wrench: Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• With the engine off, pump the brake pedal 10-15 times until it feels firm (this seats the pistons against the new pads).
• Check brake fluid level and top off only if needed.
• Do a low-speed test in a safe area: confirm normal stopping and no pulling/noise.
• Pad break-in: make 8-10 moderate stops from ~35 mph to ~5 mph, with cooling time between. Avoid hard panic stops initially.

---
