🔧 Land Cruiser - Front Brake Pad Replacement

On your Land Cruiser, the front pads sit inside a fixed (multi-piston) caliper and are held in by retaining pins and an anti-rattle spring. Replacing worn pads restores braking power and prevents rotor damage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🧯 Work on level ground and support the truck with jack stands before removing any wheel.
• 🧤 Brake dust is unhealthy; avoid blowing dust and use brake cleaner instead.
• 🔥 Brakes can be hot; let the front brakes cool fully first.
• 🚫 Do not press the brake pedal while pads/pins are removed.
• 🧴 Watch the brake fluid level while pushing pistons back; siphon a little if it’s near “MAX”.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• Torque wrench (30-250 ft-lbs range)
• Flathead screwdriver
• Needle-nose pliers
• Pin punch set (4mm-6mm)
• Small hammer
• Brake piston spreader (specialty)
• Wire brush
• Brake cleaner spray
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1 Recommended if pins/springs are rusty
• Brake pad shim kit - Qty: 1 If not included with pads
• High-temperature brake grease - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on a flat surface, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Crack the front lug nuts loose 1/4 turn using a 21mm socket and breaker bar.
• Open the hood and locate the brake fluid reservoir so you can monitor fluid level during piston push-back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front with a floor jack (rated 3-ton minimum) at the front jacking point.
• Set the frame down onto jack stands (rated 3-ton minimum) and gently shake the truck to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts using a 21mm socket and take off both front wheels.
• During reassembly: Torque to 177 Nm (131 ft-lbs) using a torque wrench.

Step 3: Locate the pad retaining pins and spring

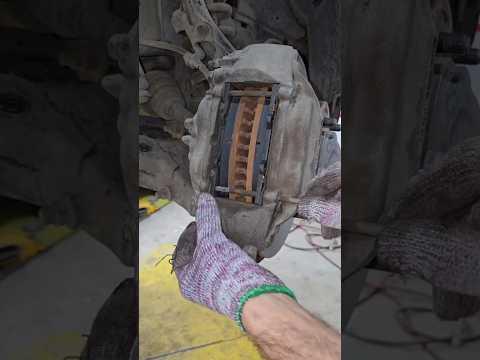

• Look at the front brake caliper face: you’ll see two horizontal retaining pins and a center anti-rattle spring.
• Spray the area with brake cleaner spray and wipe with shop rags to keep dirt out.

Step 4: Remove the pad retaining pins

• Use needle-nose pliers to remove any small pin clips (if equipped).
• Use a pin punch set (4mm-6mm) and small hammer to tap the retaining pins out, one at a time.
• Tip: Tap straight to avoid bending pins.

Step 5: Remove the anti-rattle spring and old pads

• Remove the spring from the caliper once the pins are out (use a flathead screwdriver if needed).
• Slide the pads out of the caliper by hand.
• If the pads are stuck, gently pry with a flathead screwdriver without gouging the rotor.

Step 6: Retract the caliper pistons

• Place an old pad against the pistons and use a brake piston spreader (specialty) to push the pistons back evenly.
• A brake piston spreader is a tool that presses pistons back smoothly so new thicker pads fit.
• Go slowly and keep checking the brake fluid reservoir so it doesn’t overflow.

Step 7: Clean and prep the pad contact points

• Use a wire brush to clean pad abutment/contact areas where the pads slide.
• Spray with brake cleaner spray and wipe with shop rags.
• Apply a thin film of high-temperature brake grease to pad ears/slide points and shim contact points only.
• Do not get grease on rotor or pad friction material; clean with brake cleaner spray if you do.

Step 8: Install new pads and shims

• Transfer/install the pad shims (if your pads use them) and place the new pads into the caliper in the same orientation as removed.
• Make sure pads sit flat and slide freely.
• Replace pads in pairs (both front wheels) to keep braking even.

Step 9: Reinstall the anti-rattle spring and retaining pins

• Position the spring correctly, then start the retaining pins by hand.
• Use a pin punch set (4mm-6mm) and small hammer to tap pins fully into place.
• Reinstall any clips (if equipped) using needle-nose pliers.

Step 10: Reinstall wheels and torque lug nuts

• Reinstall both wheels and snug lug nuts using a 21mm socket.
• Lower the truck using a floor jack (rated 3-ton minimum).
• Final tighten in a star pattern: Torque to 177 Nm (131 ft-lbs) using a torque wrench.

---

✅ After Repair

• With the engine off, slowly pump the brake pedal 8–12 times until it feels firm. This seats the pistons against the new pads.
• Check the brake fluid level and top off only if needed.
• Do a cautious test drive: start with gentle stops, then medium stops.
• Pad break-in: make 8–10 smooth stops from ~30 mph to 5 mph, letting brakes cool a bit between stops.
• Recheck for any abnormal noises and confirm the truck rolls freely when brakes are released.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
