🔧 Avalon - Front Brake Pad Replacement

You’ll remove the front wheels, swing the brake calipers out of the way, swap the old pads for new ones, then reassemble and verify pedal feel. This restores safe stopping power and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Avalon with jack stands—never rely on a jack alone.
• ⚠️ Brake dust is harmful—avoid blowing dust; use brake cleaner.
• ⚠️ Do not let the caliper hang by the rubber brake hose.
• ⚠️ Brakes may be hot—let everything cool before starting.
• ⚠️ Keep brake fluid off paint; it can damage finishes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-150 ft-lbs range)
• 14mm socket
• 17mm socket
• Flat-blade screwdriver
• C-clamp brake piston compressor
• Bungee cord
• Wire brush
• Brake cleaner
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit - Qty: 1
• Brake caliper grease (silicone, brake-safe) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Open the hood and locate the brake fluid reservoir. Do not remove fluid yet—just be ready to watch the level when compressing pistons.
• Loosen the front wheel lug nuts slightly before lifting the car (about 1/4 turn).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of your Avalon

• Use a floor jack (rated 3-ton minimum) at the front jack point and raise the car.
• Place jack stands (rated 3-ton minimum) under the proper support points and lower the car onto them.
• Give the car a gentle shake to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts using a 21mm socket and 3/8" drive ratchet (or 1/2" drive breaker bar if tight).
• Remove both front wheels and set them aside.

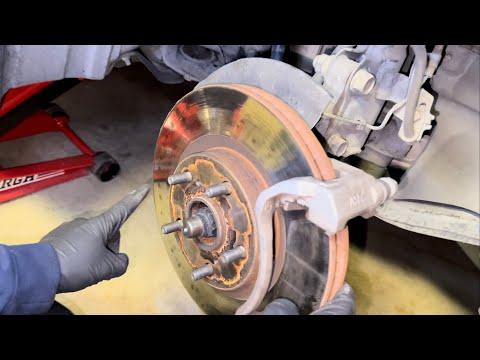

Step 3: Locate the caliper and remove the slide pin bolts

• The caliper is the “clamp” that squeezes the brake pads onto the rotor.
• Turn the steering knuckle as needed for access.
• Remove the two caliper slide pin bolts using a 14mm socket and 3/8" drive ratchet.

Step 4: Swing the caliper up and support it

• Carefully lift/swing the caliper away from the pads. Use a flat-blade screwdriver gently if it’s stuck.
• Support the caliper with a bungee cord so the brake hose is not stretched.

Step 5: Remove old pads and hardware

• Pull the old pads out by hand.
• Remove the stainless pad clips/hardware from the bracket (this is where the front brake pad hardware kit gets replaced).
• Clean the bracket pad “lands” (the metal ledges the clips sit on) using brake cleaner and a wire brush.
• Clean metal helps pads slide smoothly.

Step 6: Compress the caliper piston

• Check the brake fluid reservoir level under the hood before compressing.
• Position the old inner pad against the piston, then use a C-clamp brake piston compressor to slowly push the piston fully back into the caliper.
• If the reservoir starts to overflow, stop and remove a small amount of fluid (do not spill).

Step 7: Install new pad hardware and apply brake grease

• Install the new hardware clips from the front brake pad hardware kit onto the bracket.
• Apply a thin film of brake caliper grease (silicone, brake-safe) where the pad ears touch the clips.
• Do not get grease on the pad friction material or rotor.

Step 8: Install the new pads

• Install the new inner and outer pads into the bracket.
• Match any wear indicator location to how the old pads were installed (same side/orientation).

Step 9: Reinstall the caliper and torque fasteners

• Lower the caliper over the new pads.
• Install the slide pin bolts by hand first, then tighten using a 14mm socket and torque wrench (20-150 ft-lbs range).
• Torque to 34 Nm (25 ft-lbs)

Step 10: Repeat on the other front wheel

• Do the same pad replacement on the other front side.
• Always replace pads in pairs.

Step 11: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread lug nuts.
• Lower the car off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a 21mm socket and torque wrench (20-150 ft-lbs range).
• Torque to 103 Nm (76 ft-lbs)

---

✅ After Repair

• Before driving, pump the brake pedal 10–15 times until it feels firm (this seats the pistons against the new pads).
• Re-check brake fluid level and top off only if needed.
• With the engine running, hold firm pressure on the brake pedal for 15 seconds—make sure it doesn’t slowly sink.
• Do a cautious test drive and confirm no pulling, grinding, or warning lights.
• Pad break-in (recommended): make 6–10 gentle stops from ~30 mph, allowing a little cool-down between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$550 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $240-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
