🔧 Legacy - Front Brake Pad Replacement

Replacing the front brake pads restores safe stopping power and prevents rotor damage when pads get thin. You’ll remove the front wheels, swing the caliper out of the way, swap the pads and hardware, then torque everything back correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and support the car with jack stands (never the jack alone).
• 🛑 Chock the rear wheels so the car can’t roll.
• 🛑 Brake dust is harmful—use brake cleaner, not compressed air.
• 🛑 Don’t let the brake caliper hang by the rubber hose—support it with a hook/strap.
• 🛑 Brake fluid can overflow when you push the piston back—watch the reservoir level.
• 🔋 Battery disconnect is not required for front pads.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 14mm socket
• 17mm socket
• Torque wrench (10–200 Nm range)
• Large C-clamp or brake caliper piston compressor (specialty)
• Flat-blade screwdriver
• Needle-nose pliers
• Wire brush
• Bungee cord or caliper hook
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind both rear tires.
• Pop the hood and locate the brake fluid reservoir; do not add fluid now.
• Loosen the front wheel lug nuts slightly before lifting the car.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and lift the front

• Use a 19mm socket and breaker bar to loosen the front lug nuts 1/2 turn.
• Lift the front using the floor jack (rated 3-ton minimum), then set the car down onto jack stands (rated 3-ton minimum).

Step 2: Remove the front wheels

• Remove the lug nuts with the 19mm socket and ratchet, then remove both front wheels.

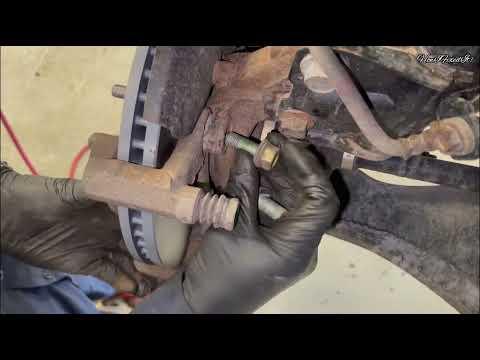

Step 3: Remove the caliper mounting bolts

• Turn the steering wheel to give yourself more room at the caliper.
• Use a 14mm socket and ratchet to remove the two caliper slide bolts.
• Lift the caliper off the bracket and support it using a bungee cord or caliper hook.
• Never pull or twist the brake hose.

Step 4: Remove old pads and hardware

• Pull the pads out of the bracket by hand. If tight, use a flat-blade screwdriver gently to pry.
• Remove the stainless abutment clips (hardware) using needle-nose pliers.

Step 5: Clean the bracket and install new hardware

• Spray the bracket area with brake cleaner spray.
• Use a wire brush to clean the pad “ledge” areas where the clips sit.
• Install the new abutment clips by hand (they snap into place).

Step 6: Compress the caliper piston

• Check brake fluid level under the hood before compressing the piston.
• Place an old pad against the piston face, then use a large C-clamp or brake caliper piston compressor (specialty) to push the piston in slowly until fully seated.
• Go slow to avoid overflowing the reservoir.

Step 7: Install new pads

• Apply a thin film of brake caliper grease (silicone) where the pad ears touch the clips and on any pad backing “contact points.”
• Do not get grease on the pad friction material or rotor face.
• Install the inner and outer pads into the bracket by hand. They should slide freely.

Step 8: Reinstall the caliper and torque bolts

• Lower the caliper back over the new pads.
• Install the slide bolts by hand first, then tighten with a 14mm socket.
• Torque to 27 Nm (20 ft-lbs) using a torque wrench (10–200 Nm range).

Step 9: Repeat on the other front side

• Repeat Steps 3–8 on the opposite front wheel.
• Always replace pads on both sides.

Step 10: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread lug nuts.
• Lower the car off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern with a torque wrench (10–200 Nm range): Torque to 120 Nm (89 ft-lbs).

---

✅ After Repair

• Press the brake pedal slowly 10–15 times until it feels firm (this seats the pads).
• Re-check the brake fluid level and top off only if needed.
• Do a careful low-speed test drive and confirm no pulling, grinding, or warning lights.
• Pad bedding: make 6–10 moderate stops from ~30–40 mph, letting brakes cool a bit between stops.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹12,000 (parts + labor)

DIY Cost: ₹2,500-₹6,500 (parts only)

You Save: ₹3,500-₹5,500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
