🔧 Optima - Front Brake Pad Replacement

You’ll remove the front calipers, swap in new pads (and hardware clips if included), then reassemble and pump the brake pedal to seat the pads. On your Optima, the front brakes do most of the stopping work, so worn pads can reduce braking performance and damage the rotors.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on a flat surface and support the car with jack stands—never rely on a jack alone.
• 🛑 Keep the car fully OFF (not in READY). Keep the key/fob away so the hybrid system can’t power up.
• 🛑 Do not press the brake pedal while a caliper is removed (it can push the piston out and leak fluid).
• 🛑 Avoid touching any orange high-voltage wiring/cables (not needed for this job).
• 🛑 Brake dust and cleaner are irritating—wear safety glasses and gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 14mm socket
• 17mm socket
• Torque wrench (10–200 Nm range)
• Flat-blade screwdriver
• C-clamp (6" minimum)
• Needle-nose pliers
• Wire brush
• Bungee cord
• Drain pan
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake pad hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone brake lubricant) - Qty: 1
• Brake cleaner - Qty: 1
• Front brake rotors - Qty: 2 If rotors are grooved/pulsing

---

📋 Before You Begin

• 📌 Park on level ground, shift to Park, and set the parking brake.
• 📌 Turn the car completely OFF and keep the key/fob at least 10 feet away.
• 📌 Loosen the front lug nuts 1/2 turn while the wheels are still on the ground using a 21mm socket and breaker bar.
• 📌 Open the hood and locate the brake fluid reservoir. If it’s very full, have a drain pan ready in case fluid rises when you compress the caliper piston.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Place wheel chocks behind the rear wheels.
• Lift the front using a floor jack (rated 3-ton minimum) at the front center jack point.
• Set the car onto jack stands (rated 3-ton minimum) at the front pinch welds or factory stand points.

Step 2: Remove the front wheels

• Remove the lug nuts using a 21mm socket and 3/8" drive ratchet.
• Set wheels aside, face-up, so they don’t tip over.

Step 3: Inspect and prep the caliper area

• Turn the steering wheel to give yourself room (left side: wheel turned right; right side: wheel turned left).
• Spray the caliper and bracket area with brake cleaner and let it drip into a drain pan. Don’t breathe the spray.
• Locate the caliper (the part that squeezes the pads) and the caliper bracket (the metal “carrier” the pads slide in).

Step 4: Remove the caliper (leave the bracket on for now)

• Remove the two caliper slide-pin bolts using a 14mm socket and 3/8" drive ratchet.
• Lift the caliper off the bracket. If it’s tight, gently pry using a flat-blade screwdriver.
• Hang the caliper from the suspension spring using a bungee cord. Do not let it hang by the brake hose.

Step 5: Remove old pads and hardware clips

• Pull the inner and outer pads out of the bracket by hand. Needle-nose pliers can help: use needle-nose pliers.
• Remove the stainless hardware/abutment clips from the bracket using a flat-blade screwdriver.
• Clean the pad “lands” (the shiny pad contact shelves on the bracket) with a wire brush and brake cleaner.

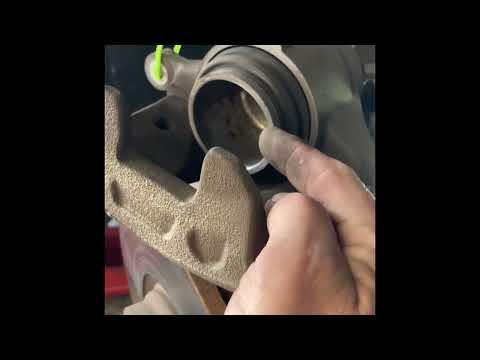

Step 6: Compress the caliper piston

• The piston is the round “push” cylinder inside the caliper; it must be pushed back to fit the thicker new pads.
• Place one old pad against the piston face, then compress slowly with a C-clamp (6" minimum).
• Check the brake fluid reservoir level as you compress. If it starts to overflow, stop and remove a little fluid carefully (use the drain pan to catch spills).

Step 7: Install new hardware clips and pads

• Install the new abutment clips into the bracket by hand (they should snap into place).
• Apply a thin film of brake caliper grease (silicone brake lubricant) where the pad ears contact the clips (metal-to-metal slide points only).
• Install the new pads into the bracket. If one pad has a wear indicator tab, it typically goes on the inside pad; match what came off.

Step 8: Reinstall the caliper

• Lower the caliper over the new pads.
• Install the slide-pin bolts by hand first (to avoid cross-threading), then tighten using a 14mm socket and torque wrench.
• Torque to 25 Nm (18 ft-lbs) for the front caliper slide-pin bolts.

Step 9: Repeat on the other front wheel

• Do the exact same steps on the other side. Always replace pads in pairs (left and right).

Step 10: Reinstall wheels and torque lug nuts

• Install lug nuts by hand, then snug them using a 21mm socket.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench: Torque to 90–110 Nm (66–81 ft-lbs).

---

✅ After Repair

• ✅ With the car still OFF, pump the brake pedal slowly 10–15 times until it feels firm. This seats the pads against the rotors.
• ✅ Check the brake fluid level and top off only if needed (do not overfill).
• ✅ Do a slow test drive in a safe area. Confirm normal pedal feel and no pulling/noises.
• ✅ Pad bedding (break-in): do 6–10 medium stops from ~30–40 mph with cooling time between stops. Avoid hard panic stops at first.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $190-$270 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
