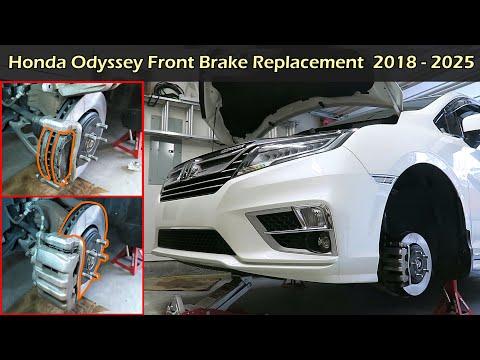

🔧 Odyssey - Front Brake Pad Replacement

You’ll remove the front wheels, swing the front brake calipers up, replace the old pads with new ones, and then reassemble with the correct torque. This restores safe stopping power and prevents rotor damage when pads get thin.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and use jack stands—never rely on a jack alone.
• 🧤 Brake dust is harmful—avoid blowing it with compressed air; use brake cleaner.
• 🔥 Brakes can be hot—let them cool before touching parts.
• 🚫 Do not press the brake pedal with a caliper removed.
• 🧪 Brake fluid can damage paint—wipe spills immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30-150 ft-lbs range)
• 12mm socket
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-60 ft-lbs range)
• C-clamp (6" minimum)
• Flat-blade screwdriver
• Wire hook or bungee cord
• Brake parts cleaner spray
• Wire brush
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Brake pad hardware kit (clips/shims) - Qty: 1
• Brake caliper grease (silicone-based) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle

---

📋 Before You Begin

• 🅿️ Park on a flat surface, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels using wheel chocks.
• 🔎 Check brake fluid level in the reservoir; it may rise when you push pistons back.
• 🧼 If the reservoir is very full, remove a little fluid with a clean syringe or turkey baster (do not reuse for food).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts (before lifting)

• Use a 19mm socket and 1/2" drive breaker bar to loosen the front wheel lug nuts about 1/2 turn.

Step 2: Lift and support the front

• Lift the front using the floor jack (rated 3-ton minimum) at the proper front jacking point.
• Place jack stands (rated 3-ton minimum) under solid frame/support points and lower onto the stands.
• Give the vehicle a gentle push to confirm it’s stable.

Step 3: Remove the front wheels

• Remove lug nuts using the 19mm socket and 3/8" drive ratchet or 1/2" drive breaker bar.
• Set the wheels aside.

Step 4: Locate the caliper and remove the lower/upper caliper bolts

• Turn the steering slightly for easier access.
• Use a 12mm socket and 3/8" drive ratchet to remove the caliper slide pin bolts.
• Tip: Keep bolts in a small tray.

Step 5: Support the caliper (do not hang it by the hose)

• Lift the caliper off the bracket.
• Hang it using a wire hook or bungee cord so the rubber brake hose is not strained.
• (A “caliper” is the clamp that squeezes the brake pads onto the rotor.)

Step 6: Remove the old pads and hardware

• Slide the old pads out by hand; use a flat-blade screwdriver gently if they’re stuck.
• Remove the pad clips/hardware from the bracket.

Step 7: Clean the bracket contact points

• Spray the bracket with brake parts cleaner spray.
• Use a wire brush to clean the pad “lands” (the metal ledges where the pad clips sit).

Step 8: Install new hardware and grease the contact points

• Install the new pad clips from the brake pad hardware kit (clips/shims).
• Apply a thin film of brake caliper grease (silicone-based) where pads slide on the clips.
• Do not get grease on the pad friction material or rotor.

Step 9: Retract the caliper piston

• Place an old pad against the piston face (optional but helpful).
• Use a C-clamp (6" minimum) to slowly push the piston back into the caliper.
• (The “piston” is the round part that pushes the inner pad.)
• Watch the brake fluid reservoir level while you compress the piston.

Step 10: Install the new pads

• Install the new inner and outer pads into the bracket.
• If one pad has a wear indicator tab, match it to the same position as the original pad came off.

Step 11: Reinstall the caliper and torque bolts

• Set the caliper back over the new pads.
• Install the caliper slide pin bolts using the 12mm socket and 3/8" drive ratchet.
• Tighten with the 3/8" drive torque wrench (10-60 ft-lbs range): Torque to 34 Nm (25 ft-lbs).

Step 12: Repeat on the other front wheel

• Repeat Steps 4–11 on the opposite front side.
• Tip: Do one side at a time.

Step 13: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread lug nuts.
• Lower the vehicle off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern using the 1/2" drive torque wrench (30-150 ft-lbs range): Torque to 127 Nm (94 ft-lbs).

---

✅ After Repair

• 🦶 Pump the brake pedal 8–15 times until it feels firm (this seats the pistons).
• 🧴 Check brake fluid level and top off with brake fluid (DOT 3) if needed.
• 👂 Test at low speed first; listen for grinding or pulling.
• 🛣️ Pad bed-in: make 6–10 smooth stops from ~30 mph to ~5 mph, letting brakes cool a bit between stops.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
